ZZE172

Toyota COROLLA-ALTIS · 2013 · 2,808 parts · 186 categories

← Back to categories

2,808 items

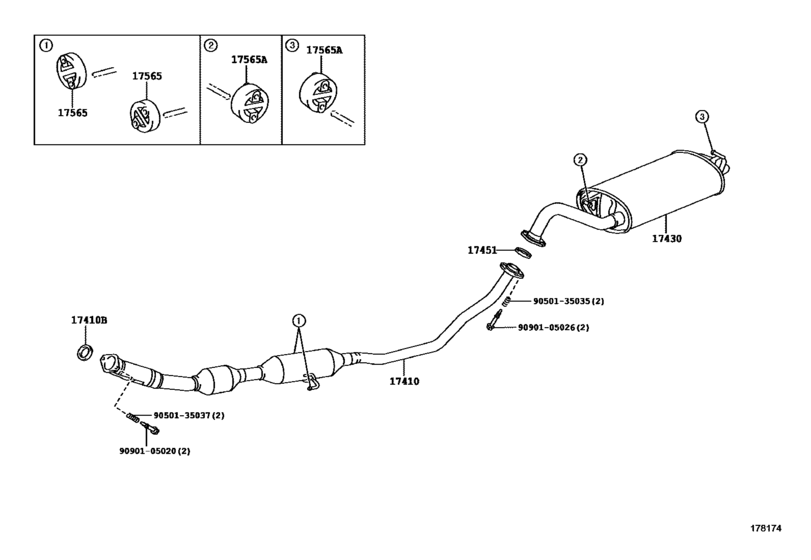

Exhaust Pipe ([10.2013 - ] (1310- )1ZZFE) 10

#	OEM	Part name
17410	17410-0D540	Pipe Assy, Exhaust, Front
17410	17451-22070	Gasket, Exhaust Pipe
17430	17430-0T380	Pipe Assy, Exhaust, Tail
17451	17451-23042	Gasket, Exhaust Pipe, Center
17565	17565-0D110	Support, Exhaust Pipe, No.2
17565	17565-0D120	Support, Exhaust Pipe, No.3
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105026	90901-05026	Bolt, Exhaust Pipe Support

OEM	Part name	Category
17410-0D540	Pipe Assy, Exhaust, Front	Exhaust Pipe ([10.2013 - ] (1310- )1ZZFE)
17430-0T380	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([10.2013 - ] (1310- )1ZZFE)
17451-22070	Gasket, Exhaust Pipe	Exhaust Pipe ([10.2013 - ] (1310- )1ZZFE)
17451-23042	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([10.2013 - ] (1310- )1ZZFE)
17565-0D110	Support, Exhaust Pipe, No.2	Exhaust Pipe ([10.2013 - ] (1310- )1ZZFE)
17565-0D120	Support, Exhaust Pipe, No.3	Exhaust Pipe ([10.2013 - ] (1310- )1ZZFE)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([10.2013 - ] (1310- )1ZZFE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([10.2013 - ] (1310- )1ZZFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([10.2013 - ] (1310- )1ZZFE)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([10.2013 - ] (1310- )1ZZFE)
