ZZE142

Toyota COROLLA · 2007 · 2,988 parts · 188 categories

← Back to categories

2,988 items

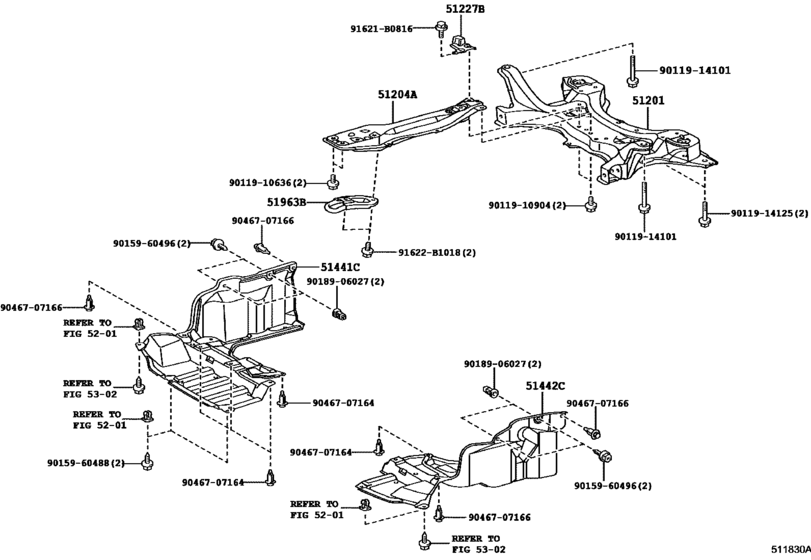

Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN) 19

#	OEM	Part name
51201	51201-02140	Crossmember Sub-Assy, Front Suspension
51201	51201-02180	Crossmember Sub-Assy, Front Suspension
51201	51201-02160	Crossmember Sub-Assy, Front Suspension
51204	51204-12150	Member Sub-Assy, Engine Mounting, Center
51227	51227-12081	Damper, Front Suspension Member Dynamic
51441	51441-02290	Cover, Engine Under, Rh
51442	51442-02390	Cover, Engine Under, Lh
51963	51960-02120	Hook, Transport, Front Rh
91621	91621-B0816	BOLT WWASHER
91622	91622-B1018	BOLT WWASHER
9011910636	90119-10636	BOLT WWASHER
9011910904	90119-10904	BOLT WWASHER
9011914101	90119-14101	BOLT W-WASHER
9011914125	90119-14125	BOLT WWASHER
9015960488	90159-60488	SCREW WWASHER
9015960496	90159-60496	SCREW WWASHER
9018906027	90189-06027	Grommet
9046707164	90467-07164	Clip(For Front Fender Apron Seal)
9046707166	90467-07166	Clip(For Front Fender Apron Seal)

OEM	Part name	Category
51201-02140	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
51201-02160	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
51201-02180	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
51204-12150	Member Sub-Assy, Engine Mounting, Center	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
51227-12081	Damper, Front Suspension Member Dynamic	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
51441-02290	Cover, Engine Under, Rh	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
51442-02390	Cover, Engine Under, Lh	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
51960-02120	Hook, Transport, Front Rh	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
90119-10636	BOLT WWASHER	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
90119-10904	BOLT WWASHER	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
90119-14101	BOLT W-WASHER	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
90119-14125	BOLT WWASHER	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
90159-60488	SCREW WWASHER	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
90159-60496	SCREW WWASHER	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
90189-06027	Grommet	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
90467-07164	Clip(For Front Fender Apron Seal)	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
90467-07166	Clip(For Front Fender Apron Seal)	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
91621-B0816	BOLT WWASHER	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
91622-B1018	BOLT WWASHER	Suspension Crossmember & Under Cover ([03.2008 - ] (0803-1003)BZ,MXC ; (0803- )VEN)
