Search › Model › ZZE142

ZZE142

Toyota COROLLA · 2007 · 2,988 parts · 188 categories
ZZE142 ×

← Back to categories

2,988 items

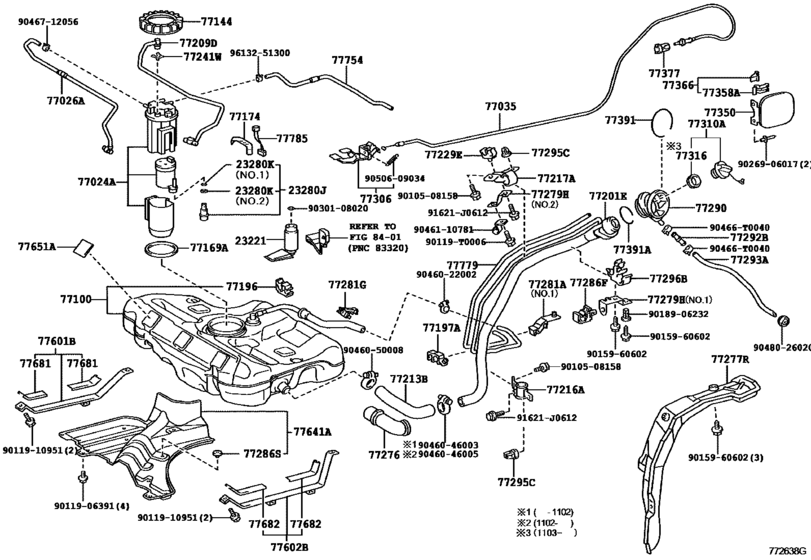

Fuel Tank & Tube ([06.2009 - ] FUEL TANK,W(CNG) (0906- )CNG) 113
#OEMPart name
23221 23220-22180 Pump, Fuel
23221 23220-22181 Pump, Fuel
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
77024 77024-12101 Plate Sub-Assy, Fuel Suction
77024 77024-12240 Plate Sub-Assy, Fuel Suction
77026 77026-02060 Tube Sub-Assy, Fuel Evaporation, No.1
77035 77035-02310 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-02450 Tank Assy, Fuel
77100 77100-02A00 Tank Assy, Fuel
77144 77144-52030 Retainer, Fuel Pump Gauge
77144 77144-52040 Retainer, Fuel Pump Gauge
77161 77161-YZB00 Plate, Fuel Tank Protector
77167 77166-YV020 Support, Fuel Tank Vent Tube, No.2
77169 77169-02080 Gasket, Fuel Suction Tube Set
77171 77171-02010 Gasket, Fuel Tank Tube, No.1
77174 77174-12030 Support, Fuel Suction, No.1
77196 77196-12080 Clamp, Evaporation Vent Tube, No.1
77197 77196-12060 Clamp, Evaporation Vent Tube, No.1
77201 77201-02300 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-02301 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-02150 Tube Sub-Assy, Fuel Tank Main
77209 77209-12350 Hose Sub-Assy, Fuel Emission
77211 77211-02190 Pipe, Fuel Tank Inlet
77211 77211-02200 Pipe, Fuel Tank Inlet
77213 77213-12330 Hose, Fuel Tank To Filler Pipe
77216 77216-02130 Support, Fuel Tank Filler Pipe, No.1
77217 77217-02090 Support, Fuel Tank Filler Pipe, No.2
77229 77229-12100 Clamp, Breather Tube
77241 77241-32060 Clip, Tube Joint
77243 77243-02030 Joint, Fuel Tube, No.1
77249 77249-12120 Hose, Fuel Emission
77252 77252-02010 Tube, Fuel Main, No.2
77265 77265-02010 Connector, Fuel Main Tube
77266 77266-12160 Protector, Fuel Tube, No.1
77276 77276-12050 Protector, Fuel Hose
77276 77276-12120 Protector, Fuel Hose
77276 77276-12130 Protector, Fuel Hose
77277 77277-YZB00 Protector, Fuel Tank Filler Pipe
77278 77278-02050 Valve, Check W/bracket
77279 57552-YZB00 Retainer, Fuel Filler Pipe Protector
77279 57553-YZB00 Retainer, Fuel Filler Pipe Protector
77281 77281-12110 Clamp, Fuel Filler Pipe
77281 77281-12150 Clamp, Fuel Hose
77281 77281-YV010 Clamp, Fuel Hose
77281 77281-YV020 Clamp, Fuel Hose
77281 77281-YV030 Clamp, Fuel Hose
77285 77285-30140 Clamp, Fuel Tube, No.1
77286 77286-12160 Clamp, Fuel Tube, No.2
77286 77286-12110 Cushion, Fuel Tank Protector
77290 77291-02140 Shield Assy, Fuel Tank Filler Pipe
77290 77291-YY020 Shield Assy, Fuel Tank Filler Pipe
77292 77292-YY020 Shield, Fuel Tank Drain Plug
77293 77293-YY020 Shield, Fuel Tank Filler Pipe, No.3
77295 77295-12070 Grommet, Fuel Tube
77295 77295-YV020 Grommet, Fuel Hose
77296 77296-12070 Plate, Fuel Tube Support
77306 64606-12050 Lever Sub-Assy, Luggage Door Lock Open
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77321 77321-02010 Coupler, Fuel Inlet
77322 77322-YZB00 Washer, Fuel Inlet Coupler, No.1
77323 77323-YZB00 Washer, Fuel Inlet Coupler, No.2
77350 77350-12510 Lid Assy, Fuel Filler Opening
77350 77350-YY010 Lid Assy, Fuel Filler Opening
77358 77358-30060 Stopper, Fuel Filler Opening Lid
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12060 Ring, Fuel Inlet Box
77391 77391-12020 Ring, Fuel Inlet Box
77501 77501-02020 Bracket Sub-Assy, Fuel Tank
77501 77501-02021 Bracket Sub-Assy, Fuel Tank
77601 77601-02100 Band Sub-Assy, Fuel Tank, No.1 Rh
77601 77601-YZB00 Band Sub-Assy, Fuel Tank, No.1
77602 77602-02100 Band Sub-Assy, Fuel Tank, No.1 Lh
77617 77617-YV010 Cover, Fuel Tank Valve, Rear
77641 77641-02140 Protector, Fuel Tank, No.1
77644 77644-02010 Bolt, Fuel Tank
77651 77651-02100 Cushion, Fuel Tank, No.1
77651 77651-12080 Cushion, Fuel Tank, No.1
77651 77651-YZB01 Cushion, Fuel Tank
77652 77652-YZB02 Cushion, Fuel Tank, No.2
77681 77681-02050 Seat, Fuel Tank Band, Rh
77754 77754-02100 Hose, Charcoal Canister Outlet, No.1
77779 77779-02050 Tube, Charcoal Canister Outlet
77785 77785-72010 Harness, Fuel Pump
77785 77785-72011 Harness, Fuel Pump
90119 90119-T0006 New Genuine Part
90119 90119-T0065 New Genuine Part
90178 90178-T0022 NUT FLANGE
90466 90466-T0040 Clip(For Fuel Hose No.2)
91621 91621-J0612 BOLT W-WASHER
91626 91626-B0614 BOLT, W/WASHER
2384133060 23841-33060 Clamp, Fuel Hose
9010508158 90105-08158 Plug(For Fuel Sub-Tank)
9011906391 90119-06391 Bolt, W/Washer
9011910951 90119-10951 BOLT WWASHER
9015960602 90159-60602 SCREW
9018906232 90189-06232 GROMMET SCREW
9026906017 90269-06017 RIVET
9030108020 90301-08020 Ring, O(For Fuel Pump)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046050008 90460-50008 Clamp (For Fuel Filler Pipe)
9046110781 90461-10781 Clamp, Brake Tube, No.6
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9048026020 90480-26020 Grommet, Sliding Roof Drain
9050609034 90506-09034 Spring, Tension(For Luggage Door Lock Open Lever)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
