Search › Model › ZZE142

ZZE142

Toyota COROLLA · 2007 · 2,988 parts · 188 categories

2,988 items

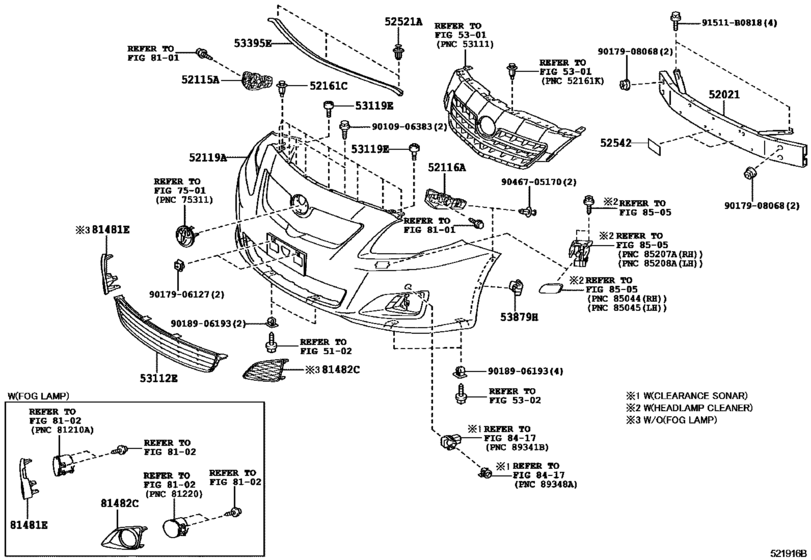

Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143) 40

#	OEM	Part name
52021	52021-02200	Reinforcement Sub-Assy, Front Bumper
52115	52115-02150	Support, Front Bumper Side, Rh
52115	52115-02200	Support, Front Bumper Side, Rh
52115	52115-02201	Support, Front Bumper Side, Rh
52116	52116-02150	Support, Front Bumper Side, Lh
52116	52116-02200	Support, Front Bumper Side, Lh
52116	52116-02201	Support, Front Bumper Side, Lh
52119	52119-01912	Cover, Front Bumper
52119	52119-01915	Cover, Front Bumper
52119	52119-01917	Cover, Front Bumper
52119	52119-01911	Cover, Front Bumper
52119	52119-01914	Cover, Front Bumper
52119	52119-01916	Cover, Front Bumper
52161	52161-16010	Clip
52161	52161-0K040	Clip
52161	52161-02020	Clip
52521	90467-05063-C0	Clip
52542	52542-02020	Seal, Front Bumper, Center
52542	52542-02030	Seal, Front Bumper, Center
53112	53112-02200	Grille, Radiator, Lower No.1
53112	53112-02350	Grille, Radiator, Lower No.1
53112	53112-02351	Grille, Radiator, Lower No.1
53119	53119-12170	Protector, Radiator Grille
53119	53119-42020	Protector, Radiator Grille
53395	53395-02060	Seal, Hood To Front End Panel
53879	53879-58010	Retainer, Front Fender Liner
81481	81481-02140	Cover, Fog Lamp, Rh
81481	81481-02270	Cover, Fog Lamp, Rh
81481	81481-02150	Cover, Fog Lamp, Rh
81481	81481-02260	Cover, Fog Lamp, Rh
81482	81482-02130	Cover, Fog Lamp, Lh
81482	81482-02260	Cover, Fog Lamp, Lh
81482	81482-02140	Cover, Fog Lamp, Lh
81482	81482-02250	Cover, Fog Lamp, Lh
91511	91511-B0818	BOLT FLANGE
9010906383	90109-06383	BOLT
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9017908068	90179-08068	NUT
9018906193	90189-06193	Grommet(For Engine Under Cover)
9046705170	90467-05170	Clip, Rear Bumper Side

OEM	Part name	Category
52021-02200	Reinforcement Sub-Assy, Front Bumper	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52115-02150	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52115-02200	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52115-02201	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52116-02150	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52116-02200	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52116-02201	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52119-01911	Cover, Front Bumper	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52119-01912	Cover, Front Bumper	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52119-01914	Cover, Front Bumper	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52119-01915	Cover, Front Bumper	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52119-01916	Cover, Front Bumper	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52119-01917	Cover, Front Bumper	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52161-02020	Clip	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52161-0K040	Clip	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52161-16010	Clip	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52542-02020	Seal, Front Bumper, Center	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
52542-02030	Seal, Front Bumper, Center	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
53112-02200	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
53112-02350	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
53112-02351	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
53119-12170	Protector, Radiator Grille	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
53119-42020	Protector, Radiator Grille	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
53395-02060	Seal, Hood To Front End Panel	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
53879-58010	Retainer, Front Fender Liner	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81481-02140	Cover, Fog Lamp, Rh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81481-02150	Cover, Fog Lamp, Rh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81481-02260	Cover, Fog Lamp, Rh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81481-02270	Cover, Fog Lamp, Rh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81482-02130	Cover, Fog Lamp, Lh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81482-02140	Cover, Fog Lamp, Lh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81482-02250	Cover, Fog Lamp, Lh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
81482-02260	Cover, Fog Lamp, Lh	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
90109-06383	BOLT	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
90179-06127	Bracket, Front Licence Plate Mounting	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
90179-08068	NUT	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
90189-06193	Grommet(For Engine Under Cover)	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
90467-05063-C0	Clip	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
90467-05170	Clip, Rear Bumper Side	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
91511-B0818	BOLT FLANGE	Front Bumper & Bumper Stay ([06.2009 - 05.2011] (0803- )ZZE14#..HTWC,HTWCF ; (0906-1105)CNG ; (1003-1103)ZRE143)
