Search › Model › ZZE142

ZZE142

Toyota COROLLA · 2007 · 2,988 parts · 188 categories

2,988 items

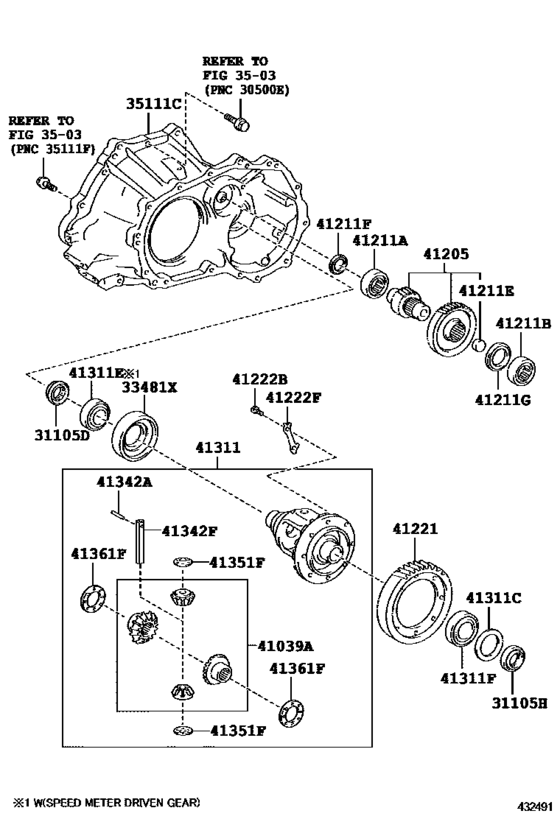

Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM) 49

#	OEM	Part name
31105	90311-35055	Oil Seal, Front Drive Shaft, Rh
31105	90311-35069	Oil Seal, Front Drive Shaft, Rh
31105	90311-35054	Oil Seal, Front Drive Shaft, Lh
31105	90311-35068	Oil Seal, Front Drive Shaft, Lh
35111	35105-20161	Housing, Transaxle
41039	41039-32021	Gear Kit, Differential
41205	41205-52021	Pinion Sub-Assy, Differential Drive
41211	90365-35004	Bearing, Tapered Roller (For Front Drive Pinion Front)
41211	90365-35003	Bearing, Tapered Roller (For Front Drive Pinion Rear)
41211	90331-17017	Plug(For Differential Drive Pinion)
41211	90374-18005	Bearing, Thrust Needle Roller(For Front Drive Pinion Rh)
41211	90374-45001	Bearing, Thrust Needle Roller(For Front Drive Pinion Lh)
41221	41221-52090	Gear, Front Differential Ring
41221	41221-52091	Gear, Front Differential Ring
41222	90101-11003	Bolt (For Rear Differential Ring Gear Set)
41222	41222-32010	Plate, Rear Differential Ring Gear Set Bolt Lock
41311	41301-12210	Case, Front Differential
41311	90564-49001	Shim (For Front Differential Case Rear)
41311	90564-49002	Shim (For Front Differential Case Rear)
41311	90564-49003	Shim (For Front Differential Case Rear)
41311	90564-49004	Shim (For Front Differential Case Rear)
41311	90564-49005	Shim (For Front Differential Case Rear)
41311	90564-49006	Shim (For Front Differential Case Rear)
41311	90564-49007	Shim (For Front Differential Case Rear)
41311	90564-49008	Shim (For Front Differential Case Rear)
41311	90564-49009	Shim (For Front Differential Case Rear)
41311	90564-49010	Shim (For Front Differential Case Rear)
41311	90564-49011	Shim (For Front Differential Case Rear)
41311	90564-49012	Shim (For Front Differential Case Rear)
41311	90564-49013	Shim (For Front Differential Case Rear)
41311	90564-49014	Shim (For Front Differential Case Rear)
41311	90564-49015	Shim (For Front Differential Case Rear)
41311	90564-49016	Shim (For Front Differential Case Rear)
41311	90564-49017	Shim (For Front Differential Case Rear)
41311	90564-49018	Shim (For Front Differential Case Rear)
41311	90564-49019	Shim (For Front Differential Case Rear)
41311	90366-40016	Bearing(For Rear Differential Case)
41311	90366-44001	Bearing(For Rear Differential Case)
41342	90250-06058	Pin, Straight(For Timing Gear Case)
41342	41342-20080	Shaft, Front Differential Pinion, No.1
41342	41342-32020	Shaft, Rear Differential Pinion
41342	41342-52060	Shaft, Front Differential Pinion, No.1
41351	41351-32010	Washer, Rear Differential Pinion Thrust
41361	41361-17010	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-17020	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-17030	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-17040	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-17050	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-17060	Washer, Rear Differential Side Gear Thrust, No.1

OEM	Part name	Category
35105-20161	Housing, Transaxle	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41039-32021	Gear Kit, Differential	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41205-52021	Pinion Sub-Assy, Differential Drive	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41221-52090	Gear, Front Differential Ring	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41221-52091	Gear, Front Differential Ring	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41222-32010	Plate, Rear Differential Ring Gear Set Bolt Lock	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41301-12210	Case, Front Differential	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41342-20080	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41342-32020	Shaft, Rear Differential Pinion	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41342-52060	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41351-32010	Washer, Rear Differential Pinion Thrust	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41361-17010	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41361-17020	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41361-17030	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41361-17040	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41361-17050	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
41361-17060	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90101-11003	Bolt (For Rear Differential Ring Gear Set)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90250-06058	Pin, Straight(For Timing Gear Case)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90311-35054	Oil Seal, Front Drive Shaft, Lh	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90311-35055	Oil Seal, Front Drive Shaft, Rh	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90311-35068	Oil Seal, Front Drive Shaft, Lh	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90311-35069	Oil Seal, Front Drive Shaft, Rh	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90331-17017	Plug(For Differential Drive Pinion)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90365-35003	Bearing, Tapered Roller (For Front Drive Pinion Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90365-35004	Bearing, Tapered Roller (For Front Drive Pinion Front)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90366-40016	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90366-44001	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90374-18005	Bearing, Thrust Needle Roller(For Front Drive Pinion Rh)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90374-45001	Bearing, Thrust Needle Roller(For Front Drive Pinion Lh)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49001	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49002	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49003	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49004	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49005	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49006	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49007	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49008	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49009	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49010	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49011	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49012	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49013	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49014	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49015	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49016	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49017	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49018	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
90564-49019	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2008 - ] U341E (0803- )ZRE142,ZZE14#..ATM)
