Search › Model › ZZE137

ZZE137

Toyota VOLTZ · 2002 · 3,554 parts · 172 categories

3,554 items

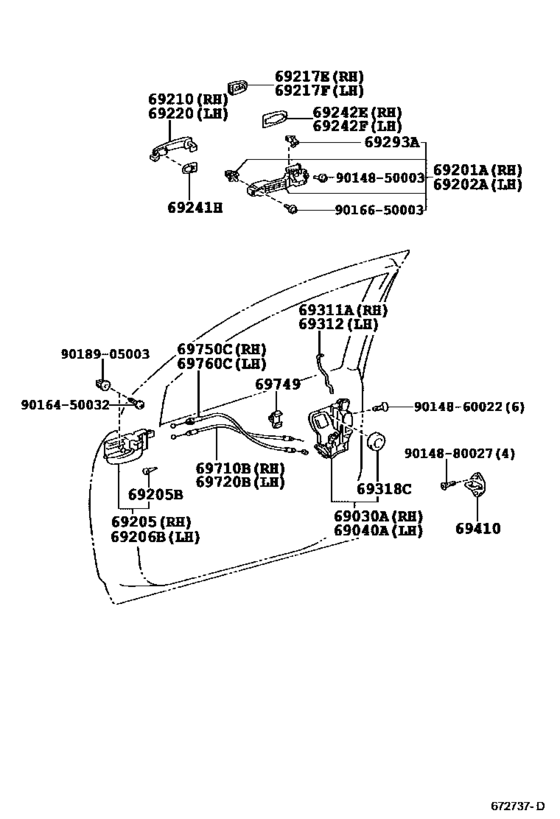

Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402)) 41

#	OEM	Part name
69030	69030-01031	Lock Assy, Front Door W/motor, Rh
69040	69040-01031	Lock Assy, Front Door W/motor, Lh
69201	69201-AA010	Frame Sub-Assy, Front Door Outside Handle, Rh
69201	69201-AA011	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-AA010	Frame Sub-Assy, Front Door Outside Handle, Lh
69202	69202-AA011	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-02100-B1	Handle Sub-Assy, Front Door Inside, Rh
69205	90080-54005	Cushion(For Front Door Inside Handle)
69206	69206-02100-B1	Handle Sub-Assy, Front Door Inside, Lh
69210	69211-AA020-A0	Handle Assy, Front Door, Outside Rh
69210	69211-AA020-B0	Handle Assy, Front Door, Outside Rh
69210	69211-AA020-B2	Handle Assy, Front Door, Outside Rh
69210	69211-AA020-C1	Handle Assy, Front Door, Outside Rh
69210	69211-AA020-E1	Handle Assy, Front Door, Outside Rh
69210	69211-AA020-J2	Handle Assy, Front Door, Outside Rh
69217	69227-AA010-A0	Cover, Front Door Outside Handle, Rh
69217	69217-33010-A0	Cover, Front Door Outside Handle, Rh
69217	69227-AA010-B0	Cover, Front Door Outside Handle, Rh
69217	69227-AA010-B2	Cover, Front Door Outside Handle, Rh
69217	69227-AA010-C1	Cover, Front Door Outside Handle, Rh
69217	69227-AA010-E1	Cover, Front Door Outside Handle, Rh
69217	69227-AA010-J2	Cover, Front Door Outside Handle, Rh
69241	69241-AA020	Pad, Front Door Outside Handle, Front
69242	69238-AA010	Pad, Front Door Outside Handle, Rear
69293	69293-33010	Snap, Front Door Outside Handle
69293	69293-33020	Snap, Front Door Outside Handle
69311	69311-01010	Rod, Front Door Lock Open, Rh
69312	69312-01010	Rod, Front Door Lock Open, Lh
69318	69318-AA010	Seal, Door Lock Wiring Harness
69410	69410-02030	Plate Assy, Front Door Lock Striker
69710	69710-01010	Cable Assy, Front Door Lock Remote Control, Rh
69749	69749-32040	Clamp, Front Door Lock Link
69750	69750-01010	Cable Assy, Front Door Inside Locking, Rh
69760	69760-01010	Cable Assy, Front Door Inside Locking Lh
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880027	90148-80027	Screw Hex Lobular
9016450032	90164-50032	Screw
9016650003	90166-50003	New Genuine Part
9018905003	90189-05003	CLIP

OEM	Part name	Category
69030-01031	Lock Assy, Front Door W/motor, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69040-01031	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69201-AA010	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69201-AA011	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69202-AA010	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69202-AA011	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69205-02100-B1	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69206-02100-B1	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69211-AA020-A0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69211-AA020-B0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69211-AA020-B2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69211-AA020-C1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69211-AA020-E1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69211-AA020-J2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69217-33010-A0	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69227-AA010-A0	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69227-AA010-B0	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69227-AA010-B2	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69227-AA010-C1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69227-AA010-E1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69227-AA010-J2	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69238-AA010	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69241-AA020	Pad, Front Door Outside Handle, Front	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69293-33010	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69293-33020	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69311-01010	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69312-01010	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69318-AA010	Seal, Door Lock Wiring Harness	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69410-02030	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69710-01010	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69749-32040	Clamp, Front Door Lock Link	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69750-01010	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
69760-01010	Cable Assy, Front Door Inside Locking Lh	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
90080-54005	Cushion(For Front Door Inside Handle)	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
90148-60022	BOLT	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
90148-80027	Screw Hex Lobular	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
90148-A0005	Hexalobular Screw	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
90164-50032	Screw	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
90166-50003	New Genuine Part	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
90189-05003	CLIP	Front Door Lock & Handle ([05.2002 - 02.2004] (0205-0402))
