ZZE137

Toyota VOLTZ · 2002 · 3,554 parts · 172 categories

← Back to categories

3,554 items

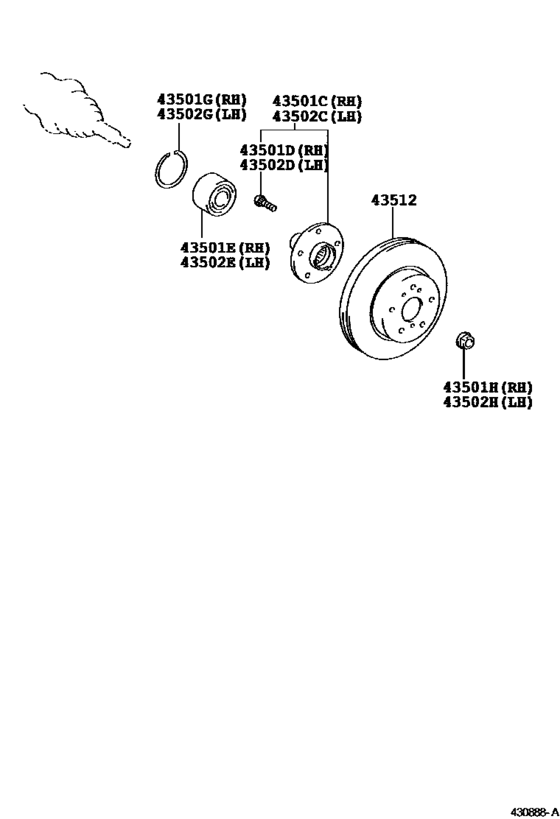

Front Axle Hub ([05.2002 - ] (0205- )) 8

#	OEM	Part name
43501	43502-32080	Hub Sub-Assy, Front Axle
43501	90942-02049	Bolt, Hub
43501	90942-02082	Bolt, Hub
43501	90080-36136	Bearing (For Front Axle Hub Rh)
43501	90521-79002	Ring, Snap (For Axle Shaft)
43501	90177-22001	Nut (For Axle Shaft)
43512	43512-02130	Disc, Front
43512	43512-02111	Disc, Front

OEM	Part name	Category
43502-32080	Hub Sub-Assy, Front Axle	Front Axle Hub ([05.2002 - ] (0205- ))
43512-02111	Disc, Front	Front Axle Hub ([05.2002 - ] (0205- ))
43512-02130	Disc, Front	Front Axle Hub ([05.2002 - ] (0205- ))
90080-36136	Bearing (For Front Axle Hub Rh)	Front Axle Hub ([05.2002 - ] (0205- ))
90177-22001	Nut (For Axle Shaft)	Front Axle Hub ([05.2002 - ] (0205- ))
90521-79002	Ring, Snap (For Axle Shaft)	Front Axle Hub ([05.2002 - ] (0205- ))
90942-02049	Bolt, Hub	Front Axle Hub ([05.2002 - ] (0205- ))
90942-02082	Bolt, Hub	Front Axle Hub ([05.2002 - ] (0205- ))
