Search › Model › ZZE137

ZZE137

Toyota VOLTZ · 2002 · 3,554 parts · 172 categories

3,554 items

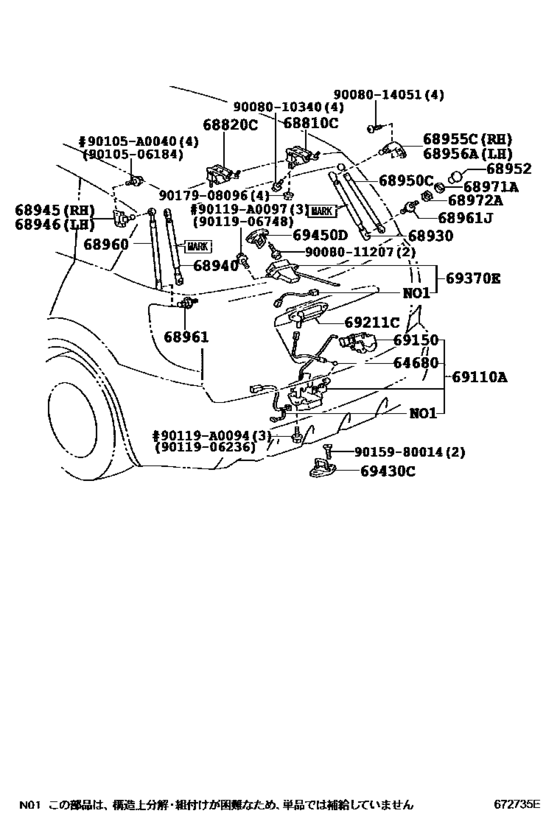

Back Door Lock & Handle ([05.2002 - ] (0205- )) 36

#	OEM	Part name
64680	64680-01010	Cable Assy, Back Door Lock Control
68810	68810-01010	Hinge Assy, Back Door, Rh
68820	68820-01010	Hinge Assy, Back Door, Lh
68930	68930-01010	Stay Assy, Back Window, Rh
68930	68930-01012	Stay Assy, Back Window, Rh
68930	68930-01011	Stay Assy, Back Window, Rh
68940	68940-01010	Stay Assy, Back Window, Lh
68940	68940-01012	Stay Assy, Back Window, Lh
68940	68940-01011	Stay Assy, Back Window, Lh
68945	68945-12030	Bracket, Back Door Damper Stay, Upper Rh
68950	68950-01030	Stay Assy, Back Door, Rh
68950	68950-01032	Stopper Assy, Rear Swing Gate Lock
68952	68952-32011	Retainer, Back Door Stay
68955	68955-12040	Bracket, Back Window Stay, Upper Rh
68956	68956-12020	Bracket, Back Window Stay, Upper Lh
68960	68960-01010	Stay Assy, Back Door, Lh
68960	68960-01012	Stay Assy, Back Door, Lh
68961	68961-20140	Bolt, Back Door Stay
68961	68961-12060	Bolt, Back Window Stay
68971	68971-32010	Packing, Back Door Stay, No.1
68972	68972-32010	Packing, Back Door Stay, No.2
69110	69110-01010	Lock Assy, Back Door W/motor
69150	69150-08010	Actuator Assy, Back Door Lock
69211	69023-13020	Handle Sub-Assy, Back Door Outside
69370	69370-01010	Lock Assy, Back Window
69430	69410-08020	Striker Assy, Back Door Lock
69450	69450-01010	Striker Assy, Back Window Lock
90105	90105-A0040	New Genuine Part
90119	90119-A0094	New Genuine Part
90119	90119-A0097	New Genuine Part
9008010340	90080-10340	New Genuine Part
9008011207	90080-11207	New Genuine Part
9008014051	90080-14051	New Genuine Part
9015980014	90159-80014	SCREW
9017908096	90179-08096	NUT
9017908096	90080-18061	New Genuine Part

OEM	Part name	Category
64680-01010	Cable Assy, Back Door Lock Control	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68810-01010	Hinge Assy, Back Door, Rh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68820-01010	Hinge Assy, Back Door, Lh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68930-01010	Stay Assy, Back Window, Rh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68930-01011	Stay Assy, Back Window, Rh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68930-01012	Stay Assy, Back Window, Rh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68940-01010	Stay Assy, Back Window, Lh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68940-01011	Stay Assy, Back Window, Lh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68940-01012	Stay Assy, Back Window, Lh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68945-12030	Bracket, Back Door Damper Stay, Upper Rh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68950-01030	Stay Assy, Back Door, Rh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68950-01032	Stopper Assy, Rear Swing Gate Lock	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68952-32011	Retainer, Back Door Stay	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68955-12040	Bracket, Back Window Stay, Upper Rh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68956-12020	Bracket, Back Window Stay, Upper Lh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68960-01010	Stay Assy, Back Door, Lh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68960-01012	Stay Assy, Back Door, Lh	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68961-12060	Bolt, Back Window Stay	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68961-20140	Bolt, Back Door Stay	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68971-32010	Packing, Back Door Stay, No.1	Back Door Lock & Handle ([05.2002 - ] (0205- ))
68972-32010	Packing, Back Door Stay, No.2	Back Door Lock & Handle ([05.2002 - ] (0205- ))
69023-13020	Handle Sub-Assy, Back Door Outside	Back Door Lock & Handle ([05.2002 - ] (0205- ))
69110-01010	Lock Assy, Back Door W/motor	Back Door Lock & Handle ([05.2002 - ] (0205- ))
69150-08010	Actuator Assy, Back Door Lock	Back Door Lock & Handle ([05.2002 - ] (0205- ))
69370-01010	Lock Assy, Back Window	Back Door Lock & Handle ([05.2002 - ] (0205- ))
69410-08020	Striker Assy, Back Door Lock	Back Door Lock & Handle ([05.2002 - ] (0205- ))
69450-01010	Striker Assy, Back Window Lock	Back Door Lock & Handle ([05.2002 - ] (0205- ))
90080-10340	New Genuine Part	Back Door Lock & Handle ([05.2002 - ] (0205- ))
90080-11207	New Genuine Part	Back Door Lock & Handle ([05.2002 - ] (0205- ))
90080-14051	New Genuine Part	Back Door Lock & Handle ([05.2002 - ] (0205- ))
90080-18061	New Genuine Part	Back Door Lock & Handle ([05.2002 - ] (0205- ))
90105-A0040	New Genuine Part	Back Door Lock & Handle ([05.2002 - ] (0205- ))
90119-A0094	New Genuine Part	Back Door Lock & Handle ([05.2002 - ] (0205- ))
90119-A0097	New Genuine Part	Back Door Lock & Handle ([05.2002 - ] (0205- ))
90159-80014	SCREW	Back Door Lock & Handle ([05.2002 - ] (0205- ))
90179-08096	NUT	Back Door Lock & Handle ([05.2002 - ] (0205- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 172
Collected: 2026-08-04
