Search › Model › ZZE136
ZZE136

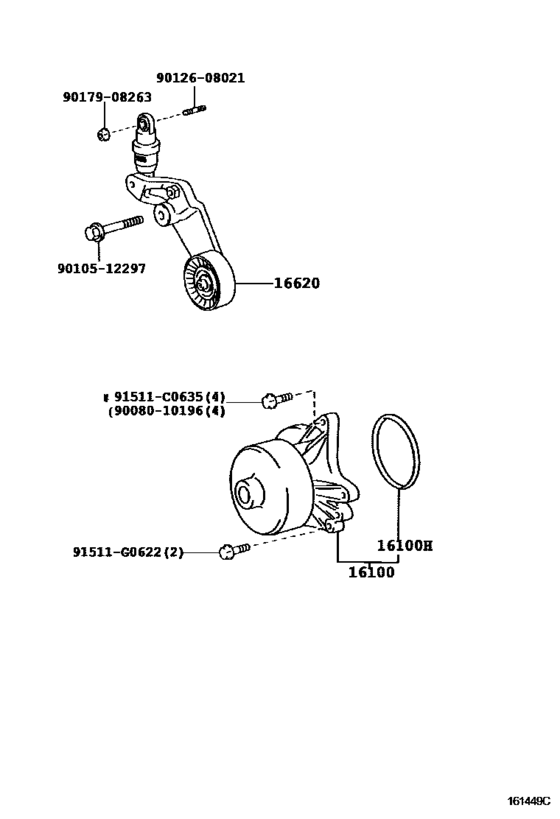

Water Pump ([05.2002 - ] (0205- )1ZZFE) 11
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-09170 | Pump Assy, Engine Water |
| 16100 | 16100-29415 | Pump Assy, Engine Water |
| 16100 | 90301-69006 | Ring, O(For Water Pump) |
| 16620 | 16620-22012 | Tensioner Assy, V-Ribbed Belt |
| 16620 | 16620-0W093 | Tensioner Assy, V-Ribbed Belt |
| 91511 | 91511-C0635 | BOLT, FLANGE |
| 91511 | 91511-G0622 | BOLT, FLANGE |
| 9008010196 | 90080-10196 | New Genuine Part |
| 9010512297 | 90105-12297 | BOLT WASHER BASED |
| 9012608021 | 90126-08021 | Bolt, Stud(For Intake Manifold To Cylinder Head) |
| 9017908263 | 90179-08263 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 16100-09170 | Pump Assy, Engine Water | Water Pump ([05.2002 - ] (0205- )1ZZFE) |
| 16100-29415 | Pump Assy, Engine Water | Water Pump ([05.2002 - ] (0205- )1ZZFE) |
| 16620-0W093 | Tensioner Assy, V-Ribbed Belt | Water Pump ([05.2002 - ] (0205- )1ZZFE) |
| 16620-22012 | Tensioner Assy, V-Ribbed Belt | Water Pump ([05.2002 - ] (0205- )1ZZFE) |
| 90080-10196 | New Genuine Part | Water Pump ([05.2002 - ] (0205- )1ZZFE) |
| 90105-12297 | BOLT WASHER BASED | Water Pump ([05.2002 - ] (0205- )1ZZFE) |
| 90126-08021 | Bolt, Stud(For Intake Manifold To Cylinder Head) | Water Pump ([05.2002 - ] (0205- )1ZZFE) |
| 90179-08263 | New Genuine Part | Water Pump ([05.2002 - ] (0205- )1ZZFE) |
| 90301-69006 | Ring, O(For Water Pump) | Water Pump ([05.2002 - ] (0205- )1ZZFE) |
| 91511-C0635 | BOLT, FLANGE | Water Pump ([05.2002 - ] (0205- )1ZZFE) |
| 91511-G0622 | BOLT, FLANGE | Water Pump ([05.2002 - ] (0205- )1ZZFE) |
