Search › Model › ZZE136

ZZE136

Toyota VOLTZ · 2002 · 3,214 parts · 159 categories

3,214 items

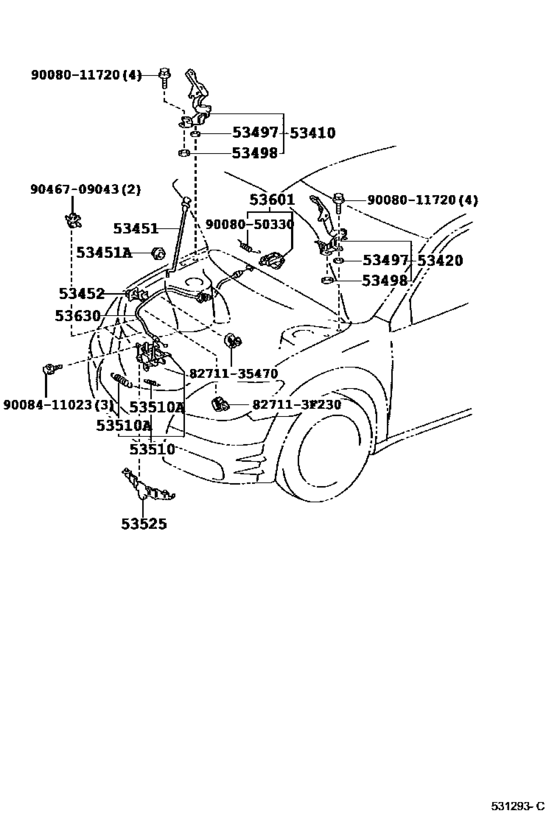

Hood Lock & Hinge ([05.2002 - ] (0205- )) 26

#	OEM	Part name
53410	53410-01060	Hinge Assy, Hood, Rh
53420	53420-02020	Hinge Assy, Hood, Lh
53420	53420-12340	Hinge Assy, Hood, Lh
53451	53440-01010	Rod, Hood Support
53451	53440-12020	Rod, Hood Support
53451	90080-48064	Grommet(For Hood Support Rod)
53452	53452-01020	Holder, Hood Stay
53497	53497-02010	Pad, Hood Hinge, No.1
53497	53497-06030	Pad, Hood Hinge, No.1
53497	53497-20070	Pad, Hood Hinge, No.1
53498	53498-02010	Pad, Hood Hinge, No.2
53498	53498-06030	Pad, Hood Hinge, No.2
53510	53510-01090	Lock Assy, Hood
53510	53510-12750	Lock Assy, Hood
53510	90506-09050	Spring, Tension(For Hood Lock)
53510	90506-18078	Spring, Tension(For Hood Lock)
53525	53525-33040	Protector, Hood Lock Release Lever
53525	53525-AA030	Protector, Hood Lock Release Lever
53601	53601-02020-B1	Lever Sub-Assy, Hood Lock Control
53630	53630-02061	Cable Assy, Hood Lock Control
827113	82711-3F230	Clamp, Sliding Roof Drain Hose
8271135470	82711-35470	Wire, Fuse To Fuse(for Combustion Heater)
9008011720	90080-11720	New Genuine Part
9008050330	90080-50330	SPRING TORSION
9008411023	90084-11023	New Genuine Part
9046709043	90467-09043	Clamp, Hood Lock Control Cable

OEM	Part name	Category
53410-01060	Hinge Assy, Hood, Rh	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53420-02020	Hinge Assy, Hood, Lh	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53420-12340	Hinge Assy, Hood, Lh	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53440-01010	Rod, Hood Support	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53440-12020	Rod, Hood Support	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53452-01020	Holder, Hood Stay	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53497-02010	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53497-06030	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53497-20070	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53498-02010	Pad, Hood Hinge, No.2	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53498-06030	Pad, Hood Hinge, No.2	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53510-01090	Lock Assy, Hood	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53510-12750	Lock Assy, Hood	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53525-33040	Protector, Hood Lock Release Lever	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53525-AA030	Protector, Hood Lock Release Lever	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53601-02020-B1	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([05.2002 - ] (0205- ))
53630-02061	Cable Assy, Hood Lock Control	Hood Lock & Hinge ([05.2002 - ] (0205- ))
82711-35470	Wire, Fuse To Fuse(for Combustion Heater)	Hood Lock & Hinge ([05.2002 - ] (0205- ))
82711-3F230	Clamp, Sliding Roof Drain Hose	Hood Lock & Hinge ([05.2002 - ] (0205- ))
90080-11720	New Genuine Part	Hood Lock & Hinge ([05.2002 - ] (0205- ))
90080-48064	Grommet(For Hood Support Rod)	Hood Lock & Hinge ([05.2002 - ] (0205- ))
90080-50330	SPRING TORSION	Hood Lock & Hinge ([05.2002 - ] (0205- ))
90084-11023	New Genuine Part	Hood Lock & Hinge ([05.2002 - ] (0205- ))
90467-09043	Clamp, Hood Lock Control Cable	Hood Lock & Hinge ([05.2002 - ] (0205- ))
90506-09050	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([05.2002 - ] (0205- ))
90506-18078	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([05.2002 - ] (0205- ))
