Search › Model › ZZE136

ZZE136

Toyota VOLTZ · 2002 · 3,214 parts · 159 categories

3,214 items

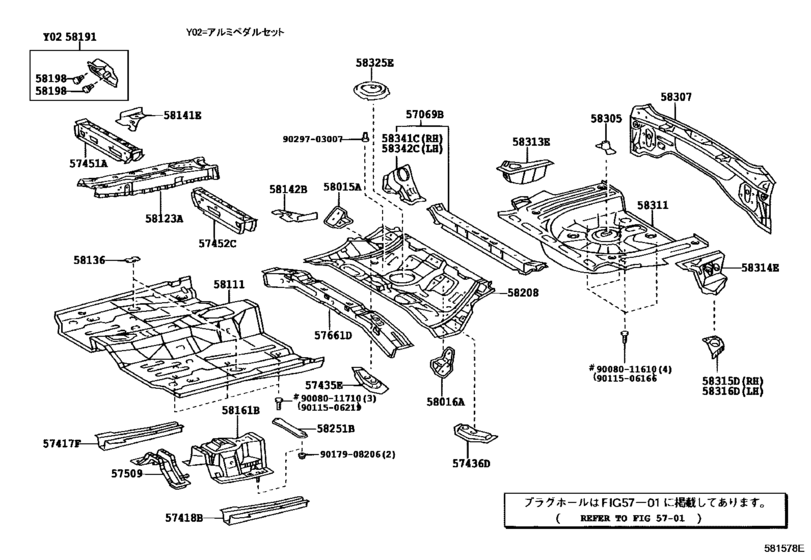

Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137) 42

#	OEM	Part name
57069	57069-01010	Member Sub-Assy, Rear Floor Cross, Center
57417	57417-02060	Reinforcement, Front Floor Under, Rh
57435	57435-01010	Member, Center Floor Side, Rh
57436	57436-01010	Member, Center Floor Side, Lh
57451	57451-02070	Member, Front Floor Cross, Rh
57451	57451-01020	Member, Front Floor Cross, Rh
57452	57452-02040	Member, Front Floor Cross, Lh
57509	57509-02030	Reinforcement Sub-Assy, Front Floor, Center
57661	57407-01010	Member, Rear Floor Cross, Front
58015	58015-02020	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-01010	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58111	58111-02903	Pan, Front Floor
58123	58013-02050	Support, Shift & Select Lever
58136	58136-33010	Cover, Front Floor Hole
58141	58141-02010	Reinforcement, Front Side Member To Floor Pan, Rh
58142	58142-02010	Reinforcemnt, Front Side Member To Floor Pan, Lh
58161	57805-02090	Reinforcement, Belt Anchor To Floor Pan
58191	58190-12040	Footrest, Front Floor
58191	58190-20010	Footrest, Front Floor
58191	58191-12120	Footrest, Front Floor
58198	58199-12030	Clip, Footrest
58198	58199-20050	Clip, Footrest, No.1
58198	90467-09220	Clip, Footrest
58208	58211-01030	Pan, Center Floor
58208	58211-02130	Pan, Center Floor
58251	58251-02010	Brace, Floor Panel, Front
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-01080	Panel Sub-Assy, Body Lower Back
58311	58311-01900	Pan, Rear Floor
58313	58313-01040	Extension, Rear Floor Side Panel, Rh
58314	58314-01040	Extension, Rear Floor Side Panel, Lh
58315	58315-01020	Extension, Rear Floor Pan, Rh
58316	58316-01030	Extension, Rear Floor Pan, Lh
58325	58325-02050	Cover, Rear Floor Service Hole
58341	58341-01010	Bracket, Rear Absorber Mounting, No.1 Rh
58342	58342-01010	Bracket, Rear Absorber Mounting, No.1 Lh
9008011610	90080-11610	Bolt, Weld(For Front Floor Pan)
9008011710	90080-11710	New Genuine Part
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9017908206	90179-08206	Nut(For Front Suspension Support)
9029703007	90297-03007	Retainer, Rear Heater Mounting

OEM	Part name	Category
57069-01010	Member Sub-Assy, Rear Floor Cross, Center	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
57407-01010	Member, Rear Floor Cross, Front	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
57417-02060	Reinforcement, Front Floor Under, Rh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
57435-01010	Member, Center Floor Side, Rh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
57436-01010	Member, Center Floor Side, Lh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
57451-01020	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
57451-02070	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
57452-02040	Member, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
57509-02030	Reinforcement Sub-Assy, Front Floor, Center	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
57805-02090	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58013-02050	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58015-02020	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58016-01010	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58111-02903	Pan, Front Floor	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58141-02010	Reinforcement, Front Side Member To Floor Pan, Rh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58142-02010	Reinforcemnt, Front Side Member To Floor Pan, Lh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58190-12040	Footrest, Front Floor	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58190-20010	Footrest, Front Floor	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58191-12120	Footrest, Front Floor	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58199-12030	Clip, Footrest	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58199-20050	Clip, Footrest, No.1	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58211-01030	Pan, Center Floor	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58211-02130	Pan, Center Floor	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58251-02010	Brace, Floor Panel, Front	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58307-01080	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58311-01900	Pan, Rear Floor	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58313-01040	Extension, Rear Floor Side Panel, Rh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58314-01040	Extension, Rear Floor Side Panel, Lh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58315-01020	Extension, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58316-01030	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58325-02050	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58341-01010	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58342-01010	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
90080-11610	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
90080-11710	New Genuine Part	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
90179-08206	Nut(For Front Suspension Support)	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
90467-09220	Clip, Footrest	Floor Pan & Lower Back Panel ([05.2002 - ] (0205- )ZZE136,137)
