Search › Model › ZZE136
ZZE136

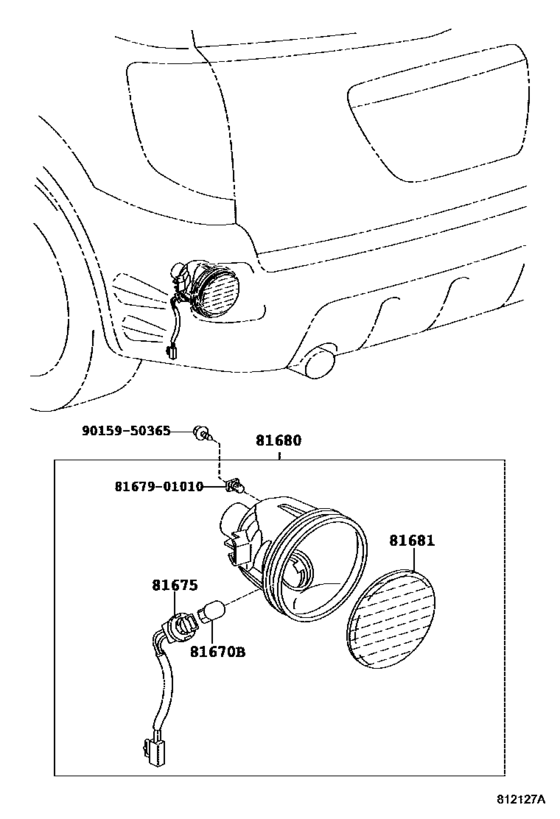

Back Up Lamp ([05.2002 - ] (0205- )) 6
| # | OEM | Part name |
|---|---|---|
| 81670 | 90981-13043 | Bulb (12V 21W) |
| 81675 | 81675-01020 | Socket & Wire, Back-Up Lamp |
| 81680 | 81680-01020 | Lamp Assy, Back Up, Lh |
| 81681 | 81681-01020 | Lens, Back-Up Lamp, Lh |
| 8167901010 | 81679-01010 | Bracket, Back Up Lamp Body |
| 9015950365 | 90159-50365 | SCREW, W/WASHER |
| OEM | Part name | Category |
|---|---|---|
| 81675-01020 | Socket & Wire, Back-Up Lamp | Back Up Lamp ([05.2002 - ] (0205- )) |
| 81679-01010 | Bracket, Back Up Lamp Body | Back Up Lamp ([05.2002 - ] (0205- )) |
| 81680-01020 | Lamp Assy, Back Up, Lh | Back Up Lamp ([05.2002 - ] (0205- )) |
| 81681-01020 | Lens, Back-Up Lamp, Lh | Back Up Lamp ([05.2002 - ] (0205- )) |
| 90159-50365 | SCREW, W/WASHER | Back Up Lamp ([05.2002 - ] (0205- )) |
| 90981-13043 | Bulb (12V 21W) | Back Up Lamp ([05.2002 - ] (0205- )) |
