Search › Model › ZZE134

ZZE134

Toyota COROLLA-MATRIX · 2002 · 4,338 parts · 207 categories

4,338 items

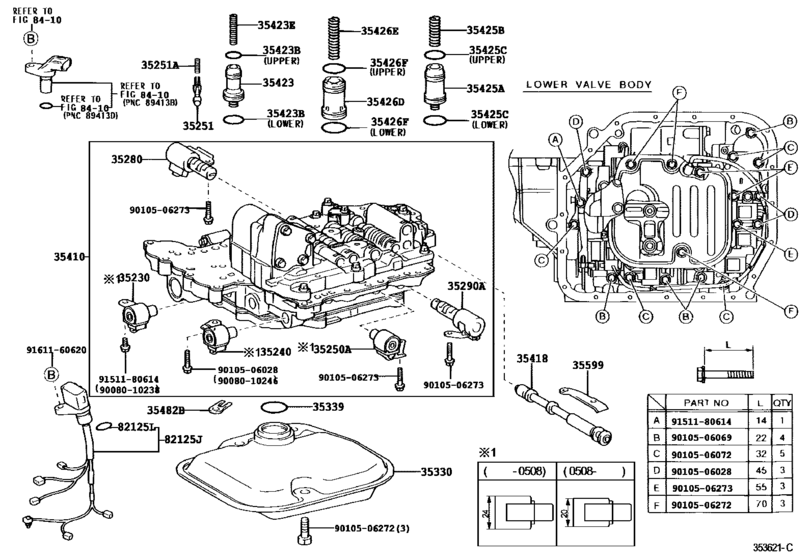

Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP) 49

#	OEM	Part name
35230	35230-52011	Solenoid Assy, Transmission 3Way, No.2
35230	35230-52020	Solenoid Assy, Transmission 3Way, No.2
35230	35230-52021	Solenoid Assy, Transmission 3Way, No.2
35240	35240-52011	Solenoid Assy, Automatic Transmission 3Way
35240	35240-52050	Solenoid Assy, Automatic Transmission 3Way
35240	35240-52051	Solenoid Assy, Automatic Transmission 3Way
35250	35250-52010	Solenoid Assy, Transmission, No.3
35250	35250-52080	Solenoid Assy, Transmission, No.3
35251	35251-30020	Body, Check Ball
35251	90501-03005	Spring, Compression (For Check Ball Body)
35280	35270-52011	Solenoid Assy, Lock Up Control
35290	35290-52020	Solenoid Assy, Line Pressure Control
35330	35330-0W020	Strainer Assy, Valve Body Oil
35330	35330-0W021	Strainer Assy, Valve Body Oil
35339	90301-32010	O-ring (Gasket, Oil Strainer)
35410	35410-52040	Body Assy, Transmission Valve
35410	82125-52110	Wire, Transmission
35410	35410-52171	Body Assy, Transmission Valve
35410	35410-52041	Body Assy, Transmission Valve
35410	35410-52042	Body Assy, Transmission Valve
35410	35410-52170	Body Assy, Transmission Valve
35418	35418-52020	Valve, Manual
35423	35403-52010	Piston, B-2 Accumulator
35423	35403-52020	Piston, B-2 Accumulator
35423	90301-20010	Ring, O (For B-2 Accumulator Piston)
35423	90301-29011	Ring (For Accumulator Piston No.1)
35423	90501-18119	Spring, Compression (For B-2 Accmulator Piston)
35425	35405-52010	Piston, C-2 Accumulator
35425	35405-52020	Piston, C-2 Accumulator
35425	90501-23149	Spring, Compression (For C-2 Accumulator Piston)
35425	90501-24036	Spring, Compression (For C-2 Accumulator Piston)
35425	90301-22010	Ring, O (For C-2 Accumulator Piston)
35425	90301-35004	Ring, O (For C-2 Accumulator Piston)
35426	35426-52020	Piston, C-3 Accumulator
35426	90301-24016	Ring, O (For C-3 Accumulator Piston)
35482	35482-52020	Clamp, Temperature Sensor
35599	35599-52010	Cover, Manual Detent Spring
82125	82125-20270	Wire, Transmission
82125	90301-21009	Ring, O(For Transmission Wire)
9008010238	90080-10238	New Genuine Part
9008010246	90080-10246	New Genuine Part
9010506028	90105-06028	New Genuine Part
9010506069	90105-06069	Bolt (For Governor Body)
9010506072	90105-06072	New Genuine Part
9010506272	90105-06272	Bolt(For Cylinder Head Cover)
9010506272	91551-80670	Bolt(For Cylinder Head Cover)
9010506273	90105-06273	New Genuine Part
9151180614	91511-80614	BOLT FLANGE
9161160620	91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)

OEM	Part name	Category
35230-52011	Solenoid Assy, Transmission 3Way, No.2	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35230-52020	Solenoid Assy, Transmission 3Way, No.2	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35230-52021	Solenoid Assy, Transmission 3Way, No.2	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35240-52011	Solenoid Assy, Automatic Transmission 3Way	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35240-52050	Solenoid Assy, Automatic Transmission 3Way	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35240-52051	Solenoid Assy, Automatic Transmission 3Way	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35250-52010	Solenoid Assy, Transmission, No.3	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35250-52080	Solenoid Assy, Transmission, No.3	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35251-30020	Body, Check Ball	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35270-52011	Solenoid Assy, Lock Up Control	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35290-52020	Solenoid Assy, Line Pressure Control	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35330-0W020	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35330-0W021	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35403-52010	Piston, B-2 Accumulator	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35403-52020	Piston, B-2 Accumulator	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35405-52010	Piston, C-2 Accumulator	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35405-52020	Piston, C-2 Accumulator	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35410-52040	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35410-52041	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35410-52042	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35410-52170	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35410-52171	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35418-52020	Valve, Manual	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35426-52020	Piston, C-3 Accumulator	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35482-52020	Clamp, Temperature Sensor	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35599-52010	Cover, Manual Detent Spring	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
82125-20270	Wire, Transmission	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
82125-52110	Wire, Transmission	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90080-10238	New Genuine Part	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90080-10246	New Genuine Part	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90105-06028	New Genuine Part	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90105-06069	Bolt (For Governor Body)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90105-06072	New Genuine Part	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90105-06272	Bolt(For Cylinder Head Cover)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90105-06273	New Genuine Part	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90301-20010	Ring, O (For B-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90301-21009	Ring, O(For Transmission Wire)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90301-22010	Ring, O (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90301-24016	Ring, O (For C-3 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90301-29011	Ring (For Accumulator Piston No.1)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90301-32010	O-ring (Gasket, Oil Strainer)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90301-35004	Ring, O (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90501-03005	Spring, Compression (For Check Ball Body)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90501-18119	Spring, Compression (For B-2 Accmulator Piston)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90501-23149	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90501-24036	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
91511-80614	BOLT FLANGE	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
91551-80670	Bolt(For Cylinder Head Cover)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)	Valve Body & Oil Strainer (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
