Toyota COROLLA-MATRIX · 2002 · 4,338 parts · 207 categories

4,338 items

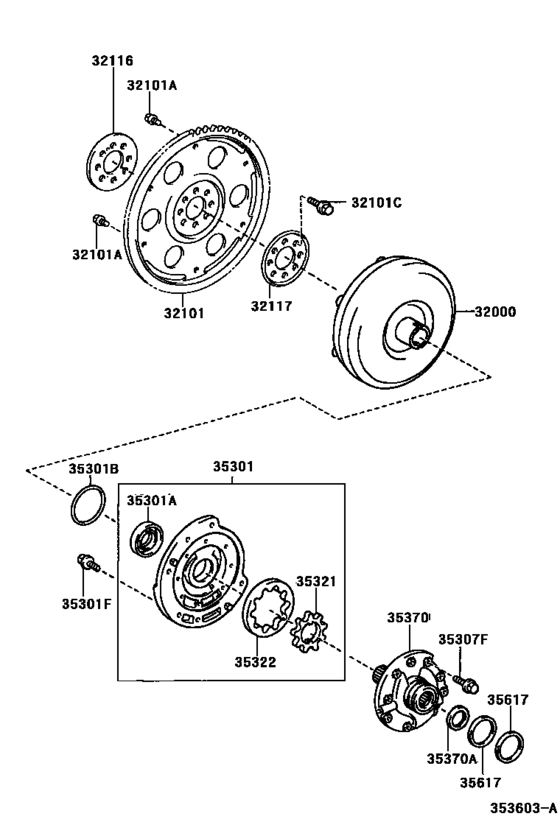

Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP) 32

#	OEM	Part name
32000	32000-12340	Converter Assy, Torque
32000	32000-12341	Converter Assy, Torque
32101	32101-02030	Gear Sub-Assy, Drive Plate & Ring
32101	32101-12090	Gear Sub-Assy, Drive Plate & Ring
32101	32101-12091	Gear Sub-Assy, Drive Plate & Ring
32101	90109-08107	Bolt(For Drive Plate & Torque Converter Setting)
32101	90109-08113	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08269	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08498	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10048	Bolt, Flywheel Setting
32116	32116-12020	Spacer, Drive Plate, Front
32117	32117-12030	Spacer, Drive Plate, Rear
35301	35035-52040	Body Sub-Assy, Front Oil Pump
35301	90311-38064	Seal, Oil (For Front Oil Pump)
35301	90301-99124	Ring, O (For Front Oil Pump Body)
35301	90105-08301	Bolt (For Front Oil Pump Setting)
35307	90148-60027	Bolt (For Stator Shaft)
35321	35321-52060	Gear, Front Oil Pump Drive
35321	35321-52070	Gear, Front Oil Pump Drive
35321	35321-52080	Gear, Front Oil Pump Drive
35321	35321-52090	Gear, Front Oil Pump Drive
35321	35321-52100	Gear, Front Oil Pump Drive
35322	35322-52060	Gear, Front Oil Pump Driven
35322	35322-52070	Gear, Front Oil Pump Driven
35322	35322-52080	Gear, Front Oil Pump Driven
35322	35322-52090	Gear, Front Oil Pump Driven
35322	35322-52100	Gear, Front Oil Pump Driven
35370	35370-52030	Shaft Assy, Stator
35370	35370-52070	Shaft Assy, Stator
35370	90374-26003	Bearing, Thrust Needle Roller(For Stator Shaft)
35617	35613-52010	Ring, Clutch Drum Oil Seal
35617	35613-52020	Ring, Clutch Drum Oil Seal

OEM	Part name	Category
32000-12340	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
32000-12341	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
32101-02030	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
32101-12090	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
32101-12091	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
32116-12020	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
32117-12030	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35035-52040	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35321-52060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35321-52070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35321-52080	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35321-52090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35321-52100	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35322-52060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35322-52070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35322-52080	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35322-52090	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35322-52100	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35370-52030	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35370-52070	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35613-52010	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
35613-52020	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90105-08301	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90105-10048	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90109-08107	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90109-08113	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90119-08269	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90119-08498	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90148-60027	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90301-99124	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90311-38064	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
90374-26003	Bearing, Thrust Needle Roller(For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2002 - ] U341F (0201- )ZZE134..NAP)
