Search › Model › ZZE134

ZZE134

Toyota COROLLA-MATRIX · 2002 · 4,338 parts · 207 categories

4,338 items

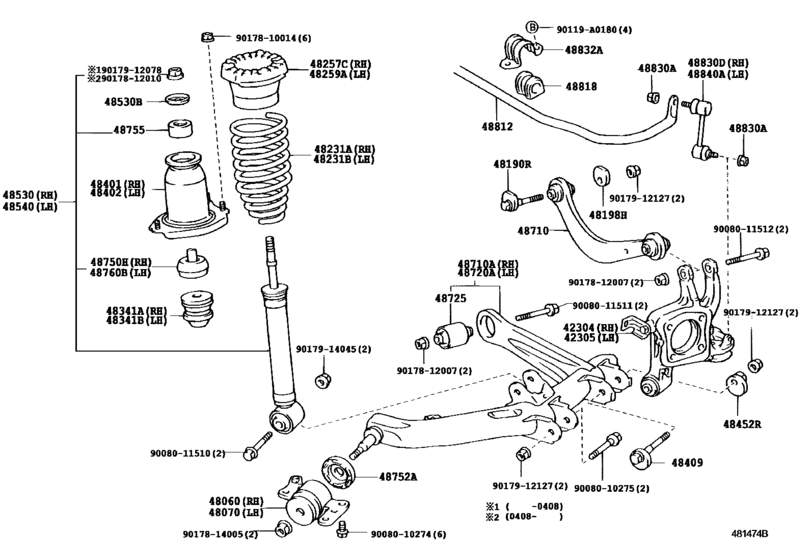

Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP) 41

#	OEM	Part name
42304	42304-63010	Carrier Sub-Assy, Rear Axle, Rh
42305	42305-63010	Carrier Sub-Assy, Rear Axle, Lh
48060	48060-32040	Bracket Assy, Rear Suspension Arm, Rh
48070	48070-32040	Bracket Assy, Rear Suspension Arm, Lh
48190	48190-32010	Cam Assy, Camber Adjust
48198	48198-32040	Cam, Rear Suspension Camber Adjust, No.2 Rh
48231	48231-02330	Spring, Coil, Rear Rh
48257	48257-01020	Insulator, Rear Coil Spring, Upper Rh
48341	48341-01040	Bumper, Rear Spring, No.1 Rh
48401	48401-32010	Bracket Sub-Assy, Rear Spring, Front Rh
48409	48409-32040	Cam Sub-Assy, Rear Suspension Toe Adjust
48452	48452-32040	Plate, Rear Suspension Toe Adjust, No.2
48530	48530-09540	Absorber Assy, Shock, Rear
48530	48530-A9550	Absorber Assy, Shock, Rear
48530	90948-03021	Washer, Rear Shock Absorber Cushion, No.1
48710	48770-20010	Arm Assy, Upper Control
48710	48710-32093	Arm Assy, Rear Suspension, No.1 Rh
48720	48720-32093	Arm Assy, Rear Suspension, No.1 Lh
48725	48725-32250	Bush, Lower Control Arm
48750	48750-01020	Support Assy, Rear Suspension, Rh
48752	48752-32011	Stopper, Rear Suspension Support
48755	48755-01020	Support, Rear Suspension
48812	48812-01020	Bar, Stabilizer, Rear
48818	48818-01020	Bush, Stabilizer, Rear
48830	90179-10183	Nut(For Front Stabilizer Link)
48830	48830-01010	Link Assy, Rear Stabilizer, Rh
48832	48832-32120	Bracket, Rear Stabilizer Bar, No.1
90119	90119-A0180	New Genuine Part
9008010274	90080-10274	New Genuine Part
9008010275	90080-10275	New Genuine Part
9008011510	90080-11510	New Genuine Part
9008011511	90080-11511	New Genuine Part
9008011512	90080-11512	New Genuine Part
9017810014	90178-10014	Nut(For Front Suspension Support)
9017812007	90178-12007	NUT FLANGE
9017812010	90178-12010	NUT FLANGE
9017814005	90178-14005	NUT FLANGE
9017912078	90179-12078	New Genuine Part
9017912127	90179-12127	Nut
9017912127	90178-A0071	New Genuine Part
9017914045	90179-14045	Nut(For Front Shock Absorber Bracket Lower)

OEM	Part name	Category
42304-63010	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
42305-63010	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48060-32040	Bracket Assy, Rear Suspension Arm, Rh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48070-32040	Bracket Assy, Rear Suspension Arm, Lh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48190-32010	Cam Assy, Camber Adjust	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48198-32040	Cam, Rear Suspension Camber Adjust, No.2 Rh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48231-02330	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48257-01020	Insulator, Rear Coil Spring, Upper Rh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48341-01040	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48401-32010	Bracket Sub-Assy, Rear Spring, Front Rh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48409-32040	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48452-32040	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48530-09540	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48530-A9550	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48710-32093	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48720-32093	Arm Assy, Rear Suspension, No.1 Lh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48725-32250	Bush, Lower Control Arm	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48750-01020	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48752-32011	Stopper, Rear Suspension Support	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48755-01020	Support, Rear Suspension	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48770-20010	Arm Assy, Upper Control	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48812-01020	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48818-01020	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48830-01010	Link Assy, Rear Stabilizer, Rh	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
48832-32120	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90080-10274	New Genuine Part	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90080-10275	New Genuine Part	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90080-11510	New Genuine Part	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90080-11511	New Genuine Part	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90080-11512	New Genuine Part	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90119-A0180	New Genuine Part	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90178-10014	Nut(For Front Suspension Support)	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90178-12007	NUT FLANGE	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90178-12010	NUT FLANGE	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90178-14005	NUT FLANGE	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90178-A0071	New Genuine Part	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90179-12078	New Genuine Part	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90179-12127	Nut	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90179-14045	Nut(For Front Shock Absorber Bracket Lower)	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
90948-03021	Washer, Rear Shock Absorber Cushion, No.1	Rear Spring & Shock Absorber ([01.2002 - ] (0201- )ZZE134..NAP)
