Search › Model › ZZE134
ZZE134

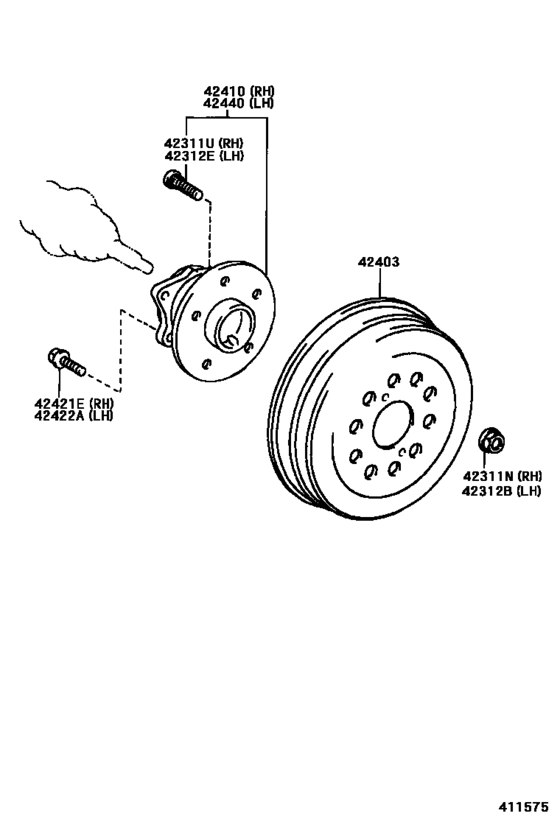

Rear Axle Shaft & Hub ([01.2002 - ] (0201- )ZZE134..NAP) 5
| # | OEM | Part name |
|---|---|---|
| 42311 | 90177-22001 | Nut (For Axle Shaft) |
| 42311 | 90942-02078 | Bolt, Hub (For Rear Axle Rh) |
| 42403 | 42431-12230 | Drum Sub-Assy, Rear Brake |
| 42410 | 42410-12250 | Hub & Bearing Assy, Rear Axle, Rh |
| 42421 | 90105-10449 | Bolt (For Rear Axle Bearing Case Rh) |
| OEM | Part name | Category |
|---|---|---|
| 42410-12250 | Hub & Bearing Assy, Rear Axle, Rh | Rear Axle Shaft & Hub ([01.2002 - ] (0201- )ZZE134..NAP) |
| 42431-12230 | Drum Sub-Assy, Rear Brake | Rear Axle Shaft & Hub ([01.2002 - ] (0201- )ZZE134..NAP) |
| 90105-10449 | Bolt (For Rear Axle Bearing Case Rh) | Rear Axle Shaft & Hub ([01.2002 - ] (0201- )ZZE134..NAP) |
| 90177-22001 | Nut (For Axle Shaft) | Rear Axle Shaft & Hub ([01.2002 - ] (0201- )ZZE134..NAP) |
| 90942-02078 | Bolt, Hub (For Rear Axle Rh) | Rear Axle Shaft & Hub ([01.2002 - ] (0201- )ZZE134..NAP) |
