ZZE134

Toyota COROLLA-MATRIX · 2002 · 4,338 parts · 207 categories
ZZE134 ×

← Back to categories

4,338 items

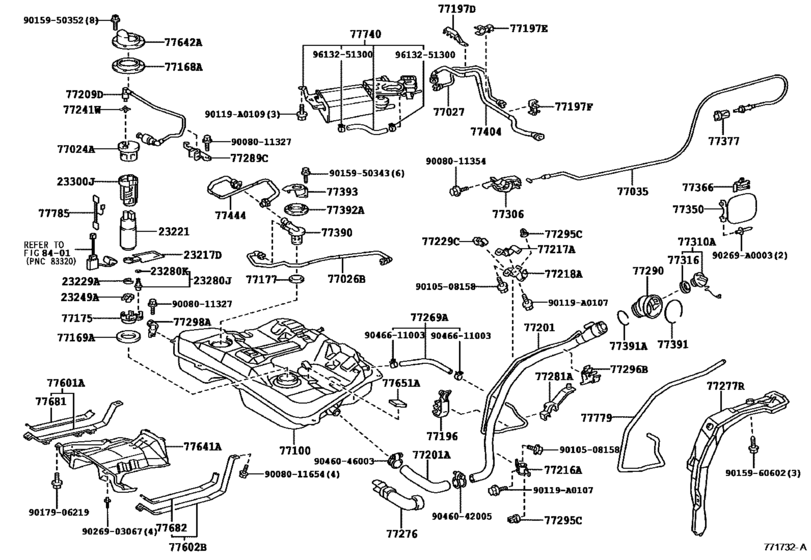

Fuel Tank & Tube ([08.2005 - ] FUEL TANK (0508- )ZZE134..NAP) 113
#OEMPart name
23217 23217-03030 Filter, Fuel Pump
23217 23217-0F010 Filter, Fuel Pump
23221 23221-0A030 Pump, Fuel
23229 23219-03010 Clip(For Fuel Pump Filter)
23249 23249-0A020 Rubber, Cushion(For Fuel Pump)
23280 23280-22010 Regulator Assy, Fuel Pressure
23280 90301-07020 Ring, O(For Fuel Pressure Regulator)
23300 23300-0A020 Filter Assy, Fuel
77024 77024-01020 Plate Sub-Assy, Fuel Suction
77024 77024-01030 Plate Sub-Assy, Fuel Suction
77026 77026-02040 Tube Sub-Assy, Fuel Evaporation, No.1
77027 77027-02050 Tube Sub-Assy, Fuel Evaporation, No.2
77035 77035-02100 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-01040 Tank Assy, Fuel
77100 77001-02270 Tank Assy, Fuel
77168 77168-52010 Plate, Fuel Tank Vent Tube Set
77169 77169-02020 Gasket, Fuel Pump Bracket
77175 77175-02010 Support, Fuel Suction, No.2
77177 77177-02010 Gasket, Check Valve
77196 77196-02030 Clamp, Evaporation Vent Tube, No.1
77196 77196-12030 Clamp, Evaporation Vent Tube, No.1
77197 77197-12050 Clamp, Evaporation Vent Tube, No.2
77197 77197-12060 Clamp, Evaporation Vent Tube, No.2
77197 77197-21010 Clamp, Evaporation Vent Tube, No.2
77201 77201-02080 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-12750 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-02190 Pipe Sub-Assy, Fuel Tank Inlet
77201 77213-01020 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77201 77213-02060 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77209 77209-01010 Tube Sub-Assy, Fuel Tank Main
77209 77209-02100 Tube Sub-Assy, Fuel Tank Main
77216 77216-02070 Support, Fuel Tank Filler Pipe, No.1
77216 77216-02080 Support, Fuel Tank Filler Pipe, No.1
77217 77217-02040 Support, Fuel Tank Filler Pipe, No.2
77217 77217-02050 Support, Fuel Tank Filler Pipe, No.2
77218 77218-02030 Support, Fuel Tank Filler Pipe, No.3
77229 77229-02020 Clamp, Breather Tube
77229 77229-06020 Clamp, Breather Tube
77241 77241-02010 Clip, Tube Joint
77269 77269-01010 Hose, Fuel Tank Breather
77269 77269-02040 Hose, Fuel Tank Breather
77276 77276-02020 Protector, Fuel Hose
77276 77276-12060 Protector, Fuel Hose
77277 77277-02050 Protector, Fuel Tank Filler Pipe
77277 77277-02070 Protector, Fuel Tank Filler Pipe
77281 77281-02060 Clamp, Fuel Filler Pipe
77281 77281-12080 Clamp, Fuel Filler Pipe
77289 77289-12040 Clamp, Fuel Tube, No.4
77290 77291-02060 Shield Assy, Fuel Tank Filler Pipe
77295 77295-12070 Grommet, Fuel Tube
77296 77296-02010 Support, Fuel Tube Protector, No.1
77296 77296-12040 Support, Fuel Tube Protector, No.1
77298 77298-12110 Clamp, Fuel Tube, No.4
77306 77306-02020 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-02021 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-06040 Cap Assy, Fuel Tank
77310 77300-08010 Cap Assy, Fuel Tank
77310 77300-53010 Cap Assy, Fuel Tank
77310 77300-52040 Cap Assy, Fuel Tank
77316 77316-06010 Gasket, Fuel Tank Cap
77316 77316-06050 Gasket, Fuel Tank Cap
77316 77316-06070 Gasket, Fuel Tank Cap
77350 77350-02020 Lid Assy, Fuel Filler Opening
77350 77350-02021 Lid Assy, Fuel Filler Opening
77366 77360-30070 Spring, Fuel Filler Opening Lid Hinge
77366 77360-0R010 Spring Assy, Charging Port Opening Lid
77377 77377-02010 Retainer, Fuel Filler Opening Lid Lock
77390 77390-12020 Valve Assy, Fuel Tank Inlet
77390 77390-12040 Valve Assy, Fuel Tank Inlet
77391 77391-02070 Ring, Fuel Inlet Box
77391 77391-12050 Ring, Fuel Inlet Box
77391 77391-02040 Ring, Fuel Inlet Box
77392 77392-12010 Support, Check Valve
77393 77393-12030 Protector, Check Valve
77404 77404-12010 Hose Sub-Assy, Fuel Tank Vent
77444 77404-01010 Hose, Fuel Tank Vent
77444 77404-01011 Hose, Fuel Tank Vent
77444 77404-02070 Hose, Fuel Tank Vent
77601 77601-12260 Band Sub-Assy, Fuel Tank, No.1
77601 77601-12330 Band Sub-Assy, Fuel Tank, No.1
77602 77602-12200 Band Sub-Assy, Fuel Tank, No.1 Lh
77641 77606-02030 Protector, Fuel Tank, No.1
77641 77641-01021 Protector, Fuel Tank, No.1
77641 77641-02100 Protector, Fuel Tank, No.1
77642 77642-12050 Protector, Fuel Tank, No.2
77651 77651-02040 Cushion, Fuel Tank, No.1
77651 77651-20090 Cushion, Fuel Tank, No.1
77651 77651-02050 Cushion, Fuel Tank, No.1
77681 77681-32060 Seat, Fuel Tank Band, Rh
77740 77740-01031 Canister Assy, Charcoal
77740 77740-02170 Canister Assy, Charcoal
77779 77779-02010 Tube, Charcoal Canister Outlet
77785 77785-06020 Harness, Fuel Pump
90119 90119-A0107 New Genuine Part
90119 90119-A0109 New Genuine Part
90269 90269-A0003 RIVET
9008011327 90080-11327 New Genuine Part
9008011354 90080-11354 New Genuine Part
9008011654 90080-11654 New Genuine Part
9010508158 90105-08158 Plug(For Fuel Sub-Tank)
9015950343 90159-50343 SCREW, W-WASHER
9015950352 90159-50352 New Genuine Part
9015960602 90159-60602 SCREW
9017906219 90179-06219 Nut
9017906219 90182-A0005 Nut
9026903067 90269-03067 RIVET
9046042005 90460-42005 Clamp (For Fuel Filler Pipe)
9046042005 90460-40007 Clamp (For Fuel Filler Pipe)
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046611003 90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)
9046611003 90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
