Search › Model › ZZE134

ZZE134

Toyota COROLLA-MATRIX · 2002 · 4,338 parts · 207 categories

4,338 items

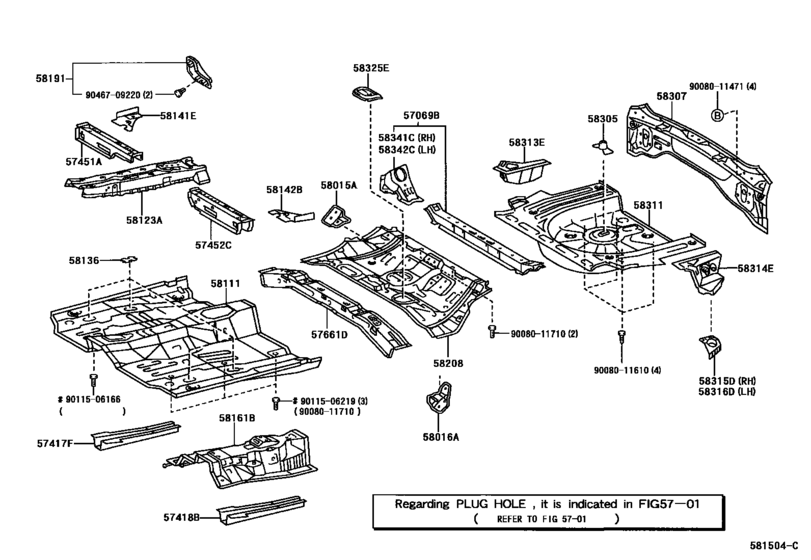

Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP) 33

#	OEM	Part name
57069	57069-01020	Member Sub-Assy, Rear Floor Cross, Center
57417	57417-02060	Reinforcement, Front Floor Under, Rh
57451	57451-01040	Member, Front Floor Cross, Rh
57452	57452-01010	Member, Front Floor Cross, Lh
57661	57407-01010	Member, Rear Floor Cross, Front
58015	58015-02020	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-01010	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58111	58111-12904	Pan, Front Floor
58123	58013-12050	Support, Shift & Select Lever
58136	58136-33010	Cover, Front Floor Hole
58141	58141-02010	Reinforcement, Front Side Member To Floor Pan, Rh
58142	58142-02010	Reinforcemnt, Front Side Member To Floor Pan, Lh
58161	57805-12100	Reinforcement, Belt Anchor To Floor Pan
58191	58192-02050	Footrest, Front Floor
58208	58211-01040	Pan, Center Floor
58208	58211-01041	Pan, Center Floor
58208	58211-01060	Pan, Center Floor
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-02120	Panel Sub-Assy, Body Lower Back
58311	58311-01900	Pan, Rear Floor
58313	58313-01040	Extension, Rear Floor Side Panel, Rh
58314	58314-01040	Extension, Rear Floor Side Panel, Lh
58315	58315-01020	Extension, Rear Floor Pan, Rh
58316	58316-01030	Extension, Rear Floor Pan, Lh
58325	58325-01030	Cover, Rear Floor Service Hole
58341	58341-01020	Bracket, Rear Absorber Mounting, No.1 Rh
58342	58342-01020	Bracket, Rear Absorber Mounting, No.1 Lh
9008011471	90080-11471	New Genuine Part
9008011610	90080-11610	Bolt, Weld(For Front Floor Pan)
9008011710	90080-11710	New Genuine Part
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9046709220	90467-09220	Clip, Footrest

OEM	Part name	Category
57069-01020	Member Sub-Assy, Rear Floor Cross, Center	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
57407-01010	Member, Rear Floor Cross, Front	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
57417-02060	Reinforcement, Front Floor Under, Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
57451-01040	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
57452-01010	Member, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
57805-12100	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58013-12050	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58015-02020	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58016-01010	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58111-12904	Pan, Front Floor	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58141-02010	Reinforcement, Front Side Member To Floor Pan, Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58142-02010	Reinforcemnt, Front Side Member To Floor Pan, Lh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58192-02050	Footrest, Front Floor	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58211-01040	Pan, Center Floor	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58211-01041	Pan, Center Floor	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58211-01060	Pan, Center Floor	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58307-02120	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58311-01900	Pan, Rear Floor	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58313-01040	Extension, Rear Floor Side Panel, Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58314-01040	Extension, Rear Floor Side Panel, Lh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58315-01020	Extension, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58316-01030	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58325-01030	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58341-01020	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58342-01020	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
90080-11471	New Genuine Part	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
90080-11610	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
90080-11710	New Genuine Part	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
90467-09220	Clip, Footrest	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE134..NAP)
