Search › Model › ZZE134

ZZE134

Toyota COROLLA-MATRIX · 2002 · 4,338 parts · 207 categories
ZZE134 ×

← Back to categories

4,338 items

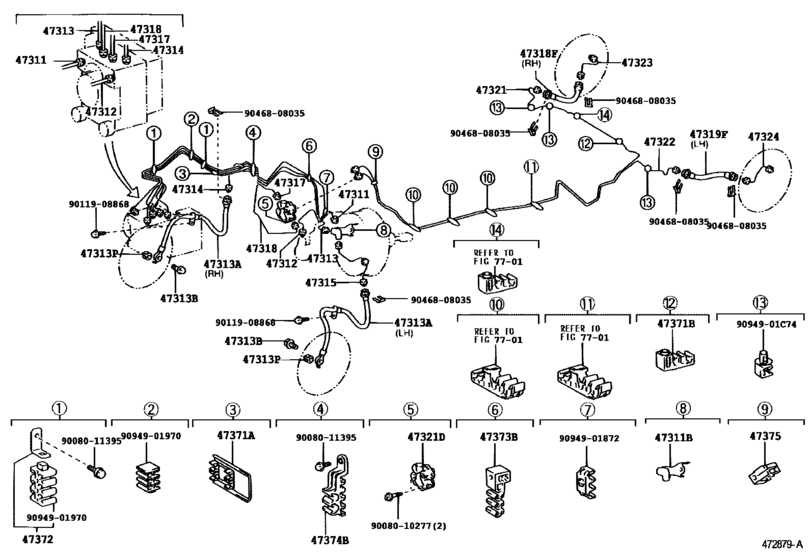

Brake Tube & Clamp ([01.2002 - 05.2004] (0201-0405)ZZE134..NAP) 38
#OEMPart name
47311 47311-02240 Tube, Front Brake, No.1
47311 47311-02450 Tube, Front Brake, No.1
47311 90904-12051 Way, No.1(For Front Brake Tube)
47312 47312-02120 Tube, Front Brake, No.2
47312 47312-02330 Tube, Front Brake, No.2
47313 47313-02210 Tube, Front Brake, No.3
47313 47313-02400 Tube, Front Brake, No.3
47313 90080-94136 Hose, Flexible, No.1(For Front)
47313 90080-94137 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-02240 Tube, Front Brake, No.4
47314 47314-02380 Tube, Front Brake, No.4
47315 47315-02180 Tube, Front Brake, No.5
47317 47317-02160 Tube, Front Brake, No.7
47317 47317-02310 Tube, Front Brake, No.7
47318 47318-02160 Tube, Front Brake, No.8
47318 47318-02330 Tube, Front Brake, No.8
47318 90947-02C25 Hose, Flexible(For Rear Rh)
47321 47321-01030 Tube, Rear Brake, No.1
47321 90904-12088 Way, No.1(For Rear Brake Tube)
47322 47322-01030 Tube, Rear Brake, No.2
47323 47323-01040 Tube, Rear Brake, No.3
47324 47324-01040 Tube, Rear Brake, No.4
47371 47371-12230 Clamp, Brake Tube, No.1
47371 77299-02020 Clamp, Brake Tube, No.6
47372 47374-12050 Clamp, Brake Tube, No.1
47373 47371-52010 Clamp, Brake Tube, No.1
47374 47372-52010 Clamp, Brake Tube, No.2
47375 77299-32030 Clamp, Brake Tube, No.6
9094901 90949-01C74 Clamp, Brake Tube, No.8
9008010277 90080-10277 New Genuine Part
9008011395 90080-11395 New Genuine Part
9011908868 90119-08868 BOLT WWASHER
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9094901872 90949-01872 Clamp, Brake Tube, No.19
9094901970 90949-01970 Clamp, Brake Tube, No.3
