ZZE133

Toyota COROLLA-MATRIX · 2002 · 3,874 parts · 199 categories

3,874 items

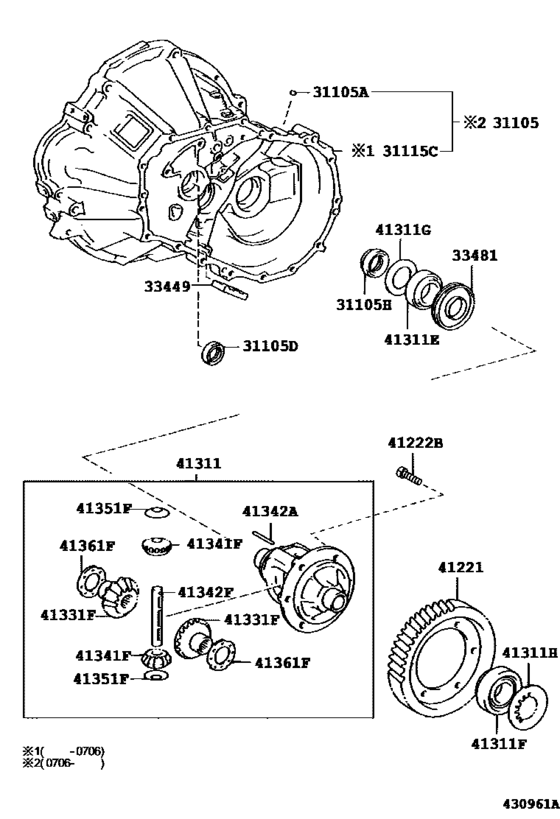

Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM) 51

#	OEM	Part name
31105	90331-08002	Plug, Tight(For Front Transaxle Case)
31105	90311-25011	Seal, Oil, No.1(For Front Transaxle Case)
31105	90311-25028	Seal, Oil, No.1(For Front Transaxle Case)
31105	90311-35051	Oil Seal, Rear Drive Shaft, Rh
31105	90311-35065	Oil Seal, Front Drive Shaft, Rh
31105	90311-35057	Oil Seal, Rear Drive Shaft, Rh
31115	31115-12110	Case, Front Transaxle(Mtm)
31115	31105-12240	Case, Front Transaxle(Mtm)
31115	31115-12111	Case, Front Transaxle(Mtm)
33449	33449-12020	Magnet, Transmission
33481	33481-20160	Gear, Speedometer Drive (Mtm)
41221	41221-20380	Gear, Front Differential Ring
41221	41221-12490	Gear, Front Differential Ring
41222	90105-11040	Bolt (For Rear Differential Ring Gear Set)
41311	41301-32061	Case Sub-Assy, Rear Differential
41311	90366-40097	Bearing(For Rear Differential Case)
41311	90366-40129	Bearing, Tapered Roller (For Front Differential Case Front) - TAPERED ROLLER (FOR FR DIFFERENTIAL CASE FRONT)
41311	90366-40094	Bearing(For Differential Case)
41311	90560-41003	Shim(For Rear Differential Case)
41311	90564-41014	Washer, Plate (For Front Differential Case Rear)
41311	90564-41015	Washer, Plate (For Front Differential Case Rear)
41311	90564-41016	Washer, Plate (For Front Differential Case Rear)
41311	90564-41017	Washer, Plate (For Front Differential Case Rear)
41311	90564-41018	Washer, Plate (For Front Differential Case Rear)
41311	90564-41019	Washer, Plate (For Front Differential Case Rear)
41311	90564-41020	Washer, Plate (For Front Differential Case Rear)
41311	90564-41021	Washer, Plate (For Front Differential Case Rear)
41311	90564-41022	Washer, Plate (For Front Differential Case Rear)
41311	90564-41023	Washer, Plate (For Front Differential Case Rear)
41311	90564-41024	Washer, Plate (For Front Differential Case Rear)
41311	90564-41025	Washer, Plate (For Front Differential Case Rear)
41311	90564-41026	Washer, Plate (For Front Differential Case Rear)
41311	90564-41027	Washer, Plate (For Front Differential Case Rear)
41311	90564-41028	Washer, Plate (For Front Differential Case Rear)
41311	90564-41029	Washer, Plate (For Front Differential Case Rear)
41311	90564-41030	Washer, Plate (For Front Differential Case Rear)
41311	90564-41031	Washer, Plate (For Front Differential Case Rear)
41311	90564-41032	Washer, Plate (For Front Differential Case Rear)
41331	41331-32010	Gear, Rear Differential Side
41341	41341-30011	Pinion, Rear Differential
41341	41039-28010	Gear Kit, Differential, Rear
41342	90250-06058	Pin, Straight(For Timing Gear Case)
41342	41342-32020	Shaft, Rear Differential Pinion
41342	41342-52060	Shaft, Front Differential Pinion, No.1
41351	41351-32010	Washer, Rear Differential Pinion Thrust
41361	41361-22020	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22030	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22040	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22140	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22150	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22160	Washer, Rear Differential Side Gear Thrust, No.1

OEM	Part name	Category
31105-12240	Case, Front Transaxle(Mtm)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
31115-12110	Case, Front Transaxle(Mtm)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
31115-12111	Case, Front Transaxle(Mtm)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
33449-12020	Magnet, Transmission	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
33481-20160	Gear, Speedometer Drive (Mtm)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41039-28010	Gear Kit, Differential, Rear	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41221-12490	Gear, Front Differential Ring	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41221-20380	Gear, Front Differential Ring	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41301-32061	Case Sub-Assy, Rear Differential	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41331-32010	Gear, Rear Differential Side	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41341-30011	Pinion, Rear Differential	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41342-32020	Shaft, Rear Differential Pinion	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41342-52060	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41351-32010	Washer, Rear Differential Pinion Thrust	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41361-22020	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41361-22030	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41361-22040	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41361-22140	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41361-22150	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
41361-22160	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90105-11040	Bolt (For Rear Differential Ring Gear Set)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90250-06058	Pin, Straight(For Timing Gear Case)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90311-25011	Seal, Oil, No.1(For Front Transaxle Case)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90311-25028	Seal, Oil, No.1(For Front Transaxle Case)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90311-35051	Oil Seal, Rear Drive Shaft, Rh	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90311-35057	Oil Seal, Rear Drive Shaft, Rh	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90311-35065	Oil Seal, Front Drive Shaft, Rh	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90331-08002	Plug, Tight(For Front Transaxle Case)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90366-40094	Bearing(For Differential Case)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90366-40097	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90366-40129	Bearing, Tapered Roller (For Front Differential Case Front) - TAPERED ROLLER (FOR FR DIFFERENTIAL CASE FRONT)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90560-41003	Shim(For Rear Differential Case)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41014	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41015	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41016	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41017	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41018	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41019	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41020	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41021	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41022	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41023	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41024	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41025	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41026	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41027	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41028	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41029	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41030	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41031	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
90564-41032	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([01.2002 - ] C59,C60 (0201- )NAP..MTM)
