Search › Model › ZZE133

ZZE133

Toyota COROLLA-MATRIX · 2002 · 3,874 parts · 199 categories

3,874 items

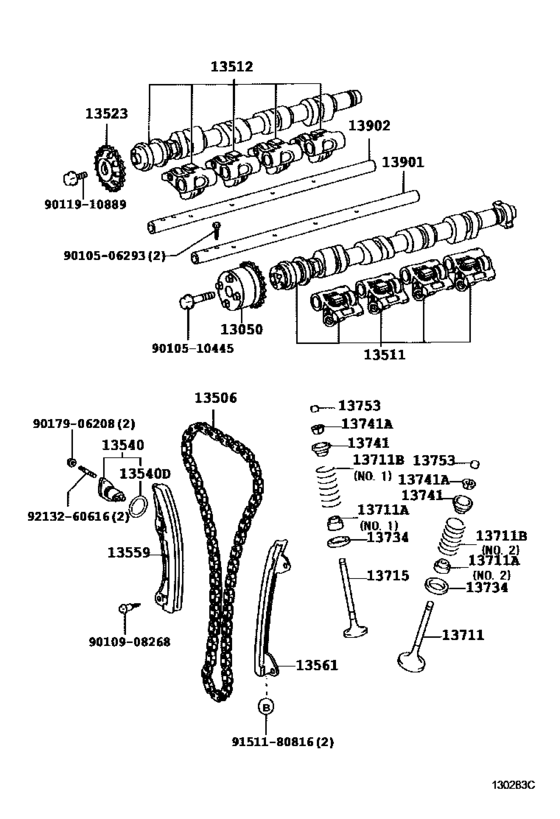

Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP) 71

#	OEM	Part name
13050	13050-22011	Gear Assy, Camshaft Timing
13050	13050-0D010	Gear Assy, Camshaft Timing
13050	13050-22012	Gear Assy, Camshaft Timing
13506	13506-88600	Chain Sub-Assy
13511	13501-29025	Camshaft
13512	13502-29015	Camshaft, No.2
13523	13523-22020	Gear Or Sprocket, Camshaft Timing
13540	13540-88600	Tensioner Assy, Chain, No.1
13540	90301-22013	Ring, O(For Chain Tensioner)
13559	13559-88600	Slipper, Chain Tensioner
13561	13561-88600	Damper, Chain Vibration, No.1
13711	13711-88600	Valve, Intake
13711	90913-02114	Seal Or Ring, O(For Valve Stem Oil)
13711	90913-02115	Seal Or Ring, O(For Valve Stem Oil)
13711	90905-01061	Spring, Compression(For Inner)
13711	90905-01063	Spring, Compression(For Inner)
13715	13715-88601	Valve, Exhaust
13715	13715-88602	Valve, Exhaust
13734	13734-88600	Seat, Valve Spring
13741	13741-88600	Retainer, Valve Spring
13741	90913-03033	Lock, Valve Spring Retainer
13753	13753-22450	Shim, Valve Adjusting
13753	13753-22460	Shim, Valve Adjusting
13753	13753-22470	Shim, Valve Adjusting
13753	13753-22480	Shim, Valve Adjusting
13753	13753-22490	Shim, Valve Adjusting
13753	13753-22500	Shim, Valve Adjusting
13753	13753-22510	Shim, Valve Adjusting
13753	13753-22520	Shim, Valve Adjusting
13753	13753-22530	Shim, Valve Adjusting
13753	13753-22540	Shim, Valve Adjusting
13753	13753-22550	Shim, Valve Adjusting
13753	13753-22560	Shim, Valve Adjusting
13753	13753-22570	Shim, Valve Adjusting
13753	13753-22580	Shim, Valve Adjusting
13753	13753-22590	Shim, Valve Adjusting
13753	13753-22600	Shim, Valve Adjusting
13753	13753-22610	Shim, Valve Adjusting
13753	13753-22620	Shim, Valve Adjusting
13753	13753-22630	Shim, Valve Adjusting
13753	13753-22640	Shim, Valve Adjusting
13753	13753-22650	Shim, Valve Adjusting
13753	13753-22660	Shim, Valve Adjusting
13753	13753-22670	Shim, Valve Adjusting
13753	13753-22680	Shim, Valve Adjusting
13753	13753-22690	Shim, Valve Adjusting
13753	13753-22700	Shim, Valve Adjusting
13753	13753-22710	Shim, Valve Adjusting
13753	13753-22720	Shim, Valve Adjusting
13753	13753-22730	Shim, Valve Adjusting
13753	13753-22740	Shim, Valve Adjusting
13753	13753-22750	Shim, Valve Adjusting
13753	13753-22760	Shim, Valve Adjusting
13753	13753-22770	Shim, Valve Adjusting
13753	13753-22780	Shim, Valve Adjusting
13753	13753-22790	Shim, Valve Adjusting
13753	13753-22800	Shim, Valve Adjusting
13753	13753-22810	Shim, Valve Adjusting
13753	13753-22820	Shim, Valve Adjusting
13753	13753-22830	Shim, Valve Adjusting
13753	13753-22840	Shim, Valve Adjusting
13753	13753-22850	Shim, Valve Adjusting
13901	13901-22020	Shaft Sub-Assy, Valve Rocker, No.1
13902	13902-22010	Shaft Sub-Assy, Valve Rocker, No.2
9010506293	90105-06293	BOLT, FLANGE
9010510445	90105-10445	BOLT, WASHER BASED
9010908268	90109-08268	BOLT
9011910889	90119-10889	Bolt(For Camshaft Timing Gear)
9017906208	90179-06208	NUT
9151180816	91511-80816	BOLTFLANGE
9213260616	92132-60616	New Genuine Part

OEM	Part name	Category
13050-0D010	Gear Assy, Camshaft Timing	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13050-22011	Gear Assy, Camshaft Timing	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13050-22012	Gear Assy, Camshaft Timing	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13501-29025	Camshaft	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13502-29015	Camshaft, No.2	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13506-88600	Chain Sub-Assy	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13523-22020	Gear Or Sprocket, Camshaft Timing	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13540-88600	Tensioner Assy, Chain, No.1	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13559-88600	Slipper, Chain Tensioner	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13561-88600	Damper, Chain Vibration, No.1	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13711-88600	Valve, Intake	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13715-88601	Valve, Exhaust	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13715-88602	Valve, Exhaust	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13734-88600	Seat, Valve Spring	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13741-88600	Retainer, Valve Spring	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22450	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22460	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22470	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22480	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22490	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22500	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22510	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22520	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22530	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22540	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22550	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22560	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22570	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22580	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22590	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22600	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22610	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22620	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22630	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22640	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22650	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22660	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22670	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22680	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22690	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22700	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22710	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22720	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22730	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22740	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22750	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22760	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22770	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22780	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22790	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22800	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22810	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22820	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22830	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22840	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13753-22850	Shim, Valve Adjusting	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13901-22020	Shaft Sub-Assy, Valve Rocker, No.1	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
13902-22010	Shaft Sub-Assy, Valve Rocker, No.2	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
90105-06293	BOLT, FLANGE	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
90105-10445	BOLT, WASHER BASED	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
90109-08268	BOLT	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
90119-10889	Bolt(For Camshaft Timing Gear)	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
90179-06208	NUT	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
90301-22013	Ring, O(For Chain Tensioner)	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
90905-01061	Spring, Compression(For Inner)	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
90905-01063	Spring, Compression(For Inner)	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
90913-02114	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
90913-02115	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
90913-03033	Lock, Valve Spring Retainer	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
91511-80816	BOLTFLANGE	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
92132-60616	New Genuine Part	Camshaft & Valve ([01.2002 - ] (0201- )2ZZGE..NAP)
