Search › Model › ZZE131

ZZE131

Toyota COROLLA-MATRIX · 2004 · 2,871 parts · 159 categories

2,871 items

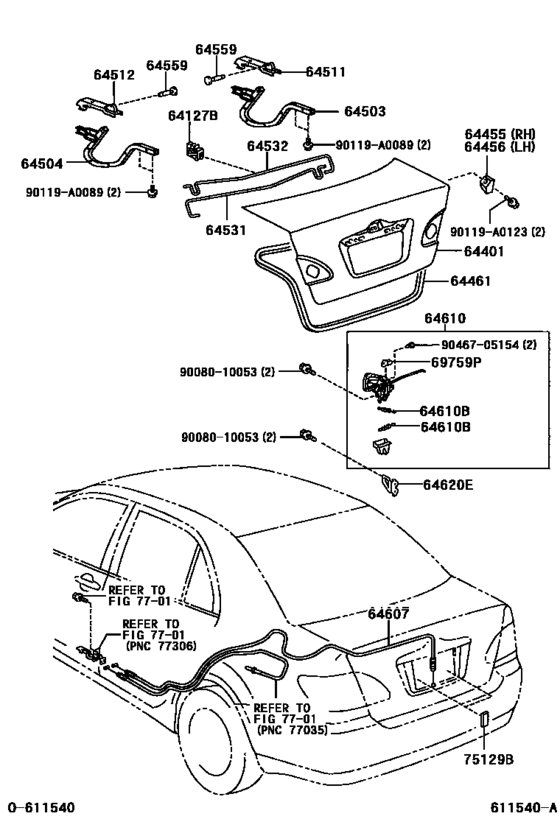

Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP) 26

#	OEM	Part name
64127	64127-33041	Support, Luggage Compartment Door Torsion Bar
64401	64401-02100	Panel Sub-Assy, Luggage Compartment Door
64401	64401-02110	Panel Sub-Assy, Luggage Compartment Door
64455	64455-02020	Cushion, Luggage Compartment Door Side, Rh
64456	64456-02020	Cushion, Luggage Compartment Door Side, Lh
64461	64461-02070	Weatherstrip, Luggage Compartment Door
64503	64503-12160	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
64511	64511-02040	Support, Luggage Compartment Door Hinge, Rh
64531	64531-02070	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-02080	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-02070	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-02080	Bar, Luggage Door Hinge Torsion, Lh
64559	64559-12040	Pin, Luggage Door Hinge
64607	64607-02090	Cable Sub-Assy, Luggage Door Lock Control
64610	64610-02070	Lock Assy, Luggage Compartment Door
64610	64610-02071	Lock Assy, Luggage Compartment Door
64610	90080-50097	Spring, Tension(For Lock)
64610	90506-05001	Spring, Tension(For Lock)
64610	90080-50128	Spring, Tension(For Lock)
64620	64621-01020	Striker Assy, Luggage Compartment Door
69759	69759-03010	Snap, Door Lock Control Link
75129	75129-02020	Cushion, Rear Licence Plate
90119	90119-A0089	New Genuine Part
90119	90119-A0123	New Genuine Part
9008010053	90080-10053	New Genuine Part
9046705154	90467-05154	New Genuine Part

OEM	Part name	Category
64127-33041	Support, Luggage Compartment Door Torsion Bar	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64401-02100	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64401-02110	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64455-02020	Cushion, Luggage Compartment Door Side, Rh	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64456-02020	Cushion, Luggage Compartment Door Side, Lh	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64461-02070	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64503-12160	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64511-02040	Support, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64531-02070	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64531-02080	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64532-02070	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64532-02080	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64559-12040	Pin, Luggage Door Hinge	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64607-02090	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64610-02070	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64610-02071	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
64621-01020	Striker Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
69759-03010	Snap, Door Lock Control Link	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
75129-02020	Cushion, Rear Licence Plate	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
90080-10053	New Genuine Part	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
90080-50097	Spring, Tension(For Lock)	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
90080-50128	Spring, Tension(For Lock)	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
90119-A0089	New Genuine Part	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
90119-A0123	New Genuine Part	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
90467-05154	New Genuine Part	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)
90506-05001	Spring, Tension(For Lock)	Luggage Compartment Door & Lock ([01.2002 - ] (0201- )ZZE130,131..NAP)

Source: Public OEM parts-catalog data
