Search › Model › ZZE131

ZZE131

Toyota COROLLA-MATRIX · 2004 · 2,871 parts · 159 categories

2,871 items

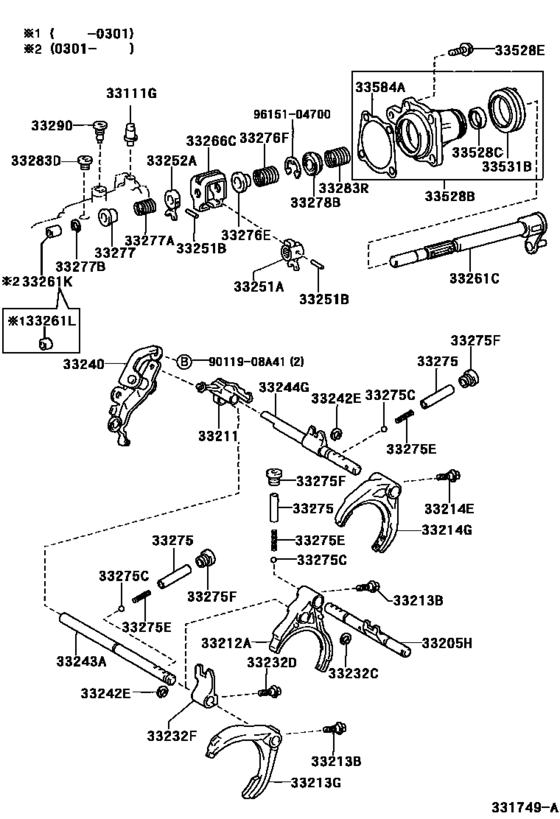

Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F) 40

#	OEM	Part name
33111	90930-03133	Plug, Breather
33205	33205-20021	Shaft Sub-Assy, Gear Shift Fork, No.1
33211	33211-12050	Fork, Reverse Shift
33212	33212-10013	Fork, Gear Shift, No.1
33213	90105-06115	Bolt(For Shift Fork Set)
33213	33213-20050	Fork, Gear Shift, No.2
33214	33230-20010	Fork, Gear Shift, No.3
33232	90520-12003	Ring(For Reverse Shift Head)
33232	33232-20020	Head, Gear Shift, No.1
33240	33240-20030	Bracket Assy, Reverse Shift Arm
33243	33243-20070	Shaft, Gear Shift Fork, No.2
33244	33244-20051	Shaft, Gear Shift Fork, No.3
33251	33251-20080	Lever, Shift, Inner No.1
33251	90254-05016	Pin, Slotted Spring(For Shift Lever Shaft Set)
33252	33252-20040	Lever, Shift, Inner No.2
33261	33261-12101	Shaft, Shift & Select Lever
33261	90369-15001	Bearing, Needle Roller (For Shift & Select Lever Shaft)
33266	33266-20040	Plate, Shift Inter Lock
33275	33275-12041	Seat, Shift Detent Ball Spring, No.1
33275	90360-10003	Ball(For Transmission Oil Pump Cover)
33275	90501-12173	Spring, Compression (For Shift Detent Ball)
33275	90341-12004	Plug, Oil Pan(For Oil Cooler)
33276	33276-12030	Seat, Select Spring, No.1
33276	90501-18126	Spring, Compression, No.1 (For Select Return)
33277	33277-12020	Seat, Select Spring, No.2
33277	90501-18123	Spring, Compression, No.2 (For Select Return)
33277	90523-12003	Ring, E(For Reverse Restrict Pin)
33278	33278-12020	Support, Shift & Select Lever Shaft
33283	90341-14008	Plug, W/head Taper Screw, No.1
33283	90501-26087	Spring, Shift & Select Lever Shaft
33290	33290-33011	Ball Assy, Lock, No.1
33290	33290-52040	Ball Assy, Lock, No.1
33528	33506-12122	Cover, Control Shaft
33528	90311-18013	Seal, Oil (For Control Shaft Cover)
33528	90119-10288	Bolt (For Control Shaft Cover)
33528	91612-61025	Bolt (For Control Shaft Cover)
33531	33531-12030	Boot, Dust (For Shift & Select Lever Shaft)
33584	33584-12060	Gasket, Control Shift Lever Retainer
9011908	90119-08A41	New Genuine Part
9615104700	96151-04700	Ring, Shaft Snap (For Select Spring No.1 Seat)

OEM	Part name	Category
33205-20021	Shaft Sub-Assy, Gear Shift Fork, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33211-12050	Fork, Reverse Shift	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33212-10013	Fork, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33213-20050	Fork, Gear Shift, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33230-20010	Fork, Gear Shift, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33232-20020	Head, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33240-20030	Bracket Assy, Reverse Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33243-20070	Shaft, Gear Shift Fork, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33244-20051	Shaft, Gear Shift Fork, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33251-20080	Lever, Shift, Inner No.1	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33252-20040	Lever, Shift, Inner No.2	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33261-12101	Shaft, Shift & Select Lever	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33266-20040	Plate, Shift Inter Lock	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33275-12041	Seat, Shift Detent Ball Spring, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33276-12030	Seat, Select Spring, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33277-12020	Seat, Select Spring, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33278-12020	Support, Shift & Select Lever Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33290-33011	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33290-52040	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33506-12122	Cover, Control Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33531-12030	Boot, Dust (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
33584-12060	Gasket, Control Shift Lever Retainer	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90105-06115	Bolt(For Shift Fork Set)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90119-08A41	New Genuine Part	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90119-10288	Bolt (For Control Shaft Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90254-05016	Pin, Slotted Spring(For Shift Lever Shaft Set)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90311-18013	Seal, Oil (For Control Shaft Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90341-12004	Plug, Oil Pan(For Oil Cooler)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90341-14008	Plug, W/head Taper Screw, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90360-10003	Ball(For Transmission Oil Pump Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90369-15001	Bearing, Needle Roller (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90501-12173	Spring, Compression (For Shift Detent Ball)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90501-18123	Spring, Compression, No.2 (For Select Return)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90501-18126	Spring, Compression, No.1 (For Select Return)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90501-26087	Spring, Shift & Select Lever Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90520-12003	Ring(For Reverse Shift Head)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90523-12003	Ring, E(For Reverse Restrict Pin)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
90930-03133	Plug, Breather	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
91612-61025	Bolt (For Control Shaft Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
96151-04700	Ring, Shaft Snap (For Select Spring No.1 Seat)	Gear Shift Fork & Lever Shaft (Mtm) ([01.2002 - ] C60 (0201- )NAP..6F)
