ZZE131

Toyota COROLLA-MATRIX · 2004 · 2,871 parts · 159 categories

2,871 items

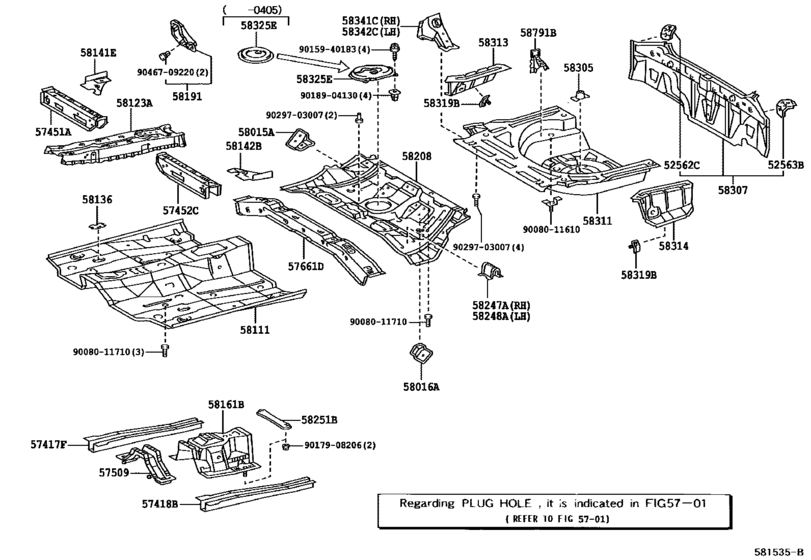

Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP) 35

#	OEM	Part name
52562	52562-02020	Retainer, Rear Bumper, Upper Rh
57417	57417-02060	Reinforcement, Front Floor Under, Rh
57451	57451-01020	Member, Front Floor Cross, Rh
57452	57452-01010	Member, Front Floor Cross, Lh
57509	57509-02030	Reinforcement Sub-Assy, Front Floor, Center
57661	57661-02050	Member, Rear Floor Cross, Front
58015	58015-02020	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-02020	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58111	58111-02902	Pan, Front Floor
58123	58013-02050	Support, Shift & Select Lever
58136	58136-33010	Cover, Front Floor Hole
58141	58141-02010	Reinforcement, Front Side Member To Floor Pan, Rh
58142	58142-02010	Reinforcemnt, Front Side Member To Floor Pan, Lh
58161	57805-02090	Reinforcement, Belt Anchor To Floor Pan
58191	58192-02050	Footrest, Front Floor
58208	58211-02160	Pan, Center Floor
58247	58247-02030	Reinforcement, Rear Seat Cushion Hinge, Rh
58251	58251-02010	Brace, Floor Panel, Front
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-02110	Panel Sub-Assy, Body Lower Back
58311	58311-02904	Pan, Rear Floor
58313	58313-02040	Panel, Rear Floor Side, Rh
58314	58314-02040	Panel, Rear Floor Side, Lh
58319	58319-02010	Bracket, Rear Floor Side Panel
58325	58325-02071	Cover, Rear Floor Service Hole
58341	58341-02030	Bracket, Rear Absorber Mounting, No.1 Rh
58342	58342-02030	Bracket, Rear Absorber Mounting, No.1 Lh
58791	58791-02010	Carrier, Jack
9008011610	90080-11610	Bolt, Weld(For Front Floor Pan)
9008011710	90080-11710	New Genuine Part
9015940183	90159-40183	SCREWWWASHER
9017908206	90179-08206	Nut(For Front Suspension Support)
9018904130	90189-04130	GROMMET SCREW
9029703007	90297-03007	Retainer, Rear Heater Mounting
9046709220	90467-09220	Clip, Footrest

OEM	Part name	Category
52562-02020	Retainer, Rear Bumper, Upper Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
57417-02060	Reinforcement, Front Floor Under, Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
57451-01020	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
57452-01010	Member, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
57509-02030	Reinforcement Sub-Assy, Front Floor, Center	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
57661-02050	Member, Rear Floor Cross, Front	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
57805-02090	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58013-02050	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58015-02020	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58016-02020	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58111-02902	Pan, Front Floor	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58141-02010	Reinforcement, Front Side Member To Floor Pan, Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58142-02010	Reinforcemnt, Front Side Member To Floor Pan, Lh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58192-02050	Footrest, Front Floor	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58211-02160	Pan, Center Floor	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58247-02030	Reinforcement, Rear Seat Cushion Hinge, Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58251-02010	Brace, Floor Panel, Front	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58307-02110	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58311-02904	Pan, Rear Floor	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58313-02040	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58314-02040	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58319-02010	Bracket, Rear Floor Side Panel	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58325-02071	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58341-02030	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58342-02030	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
58791-02010	Carrier, Jack	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
90080-11610	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
90080-11710	New Genuine Part	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
90159-40183	SCREWWWASHER	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
90179-08206	Nut(For Front Suspension Support)	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
90189-04130	GROMMET SCREW	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)
90467-09220	Clip, Footrest	Floor Pan & Lower Back Panel ([01.2002 - ] (0201- )ZZE130,131..NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 159
Collected: 2026-08-02
