Search › Model › ZZE131

ZZE131

Toyota COROLLA-MATRIX · 2004 · 2,871 parts · 159 categories

2,871 items

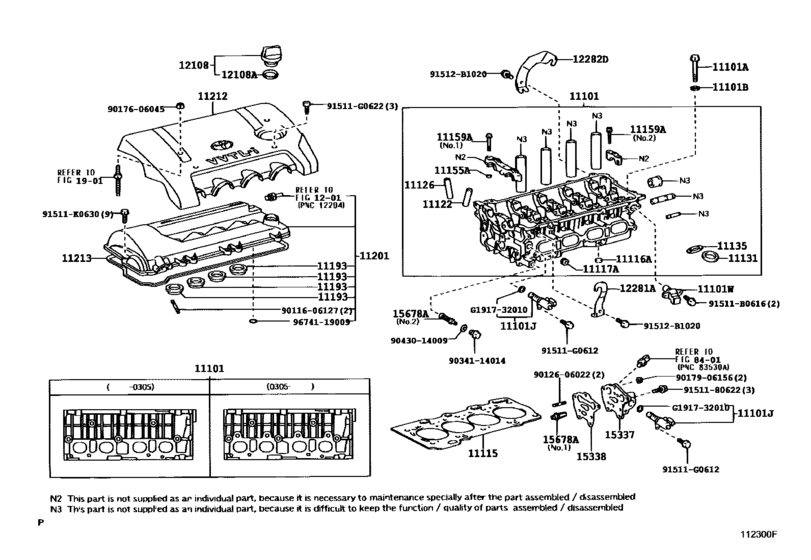

Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP) 48

#	OEM	Part name
11101	11101-29475	Head Sub-Assy, Cylinder
11101	11101-29476	Head Sub-Assy, Cylinder
11101	90910-02140	Bolt(For Cylinder Head Set)
11101	90201-10344	Washer, Plate(For Cylinder Head Set)
11101	15330-22040	Valve Assy, Camshaft Timing Oil Control
11101	90919-05007	Sensor, Cam Position
11115	11115-22060	Gasket, Cylinder Head
11116	96411-41800	Plug, Tight, No.1
11117	90341-27003	Plug, W/head Taper Screw, No.1
11122	11122-88600	Bush, Intake Valve Guide
11122	11123-88600	Bush, Intake Valve Guide
11131	11131-88601	Seat, Intake Valve
11131	11132-88601	Seat, Intake Valve
11135	11135-88601	Seat, Exhaust Valve
11135	11136-88601	Seat, Exhaust Valve
11155	90250-05021	Pin, Straight
11159	90119-07001	Bolt(For Head To Camshaft Bearing Cap)
11159	90119-07002	Bolt(For Head To Camshaft Bearing Cap)
11193	11193-15010	Gasket(For Spark Plug Tube)
11201	11201-88600	Cover Sub-Assy, Cylinder Head
11212	11212-22120	Cover, Cylinder Head, No.2
11212	11212-22906	Cover, Cylinder Head
11213	11213-88600	Gasket, Cylinder Head Cover
12108	12180-21021	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
12281	12281-88600	Hanger, Engine, No.1
12282	12282-88600	Hanger, Engine, No.2
15337	15337-88600	Housing, Cam Timing Control Valve
15338	15338-22010	Gasket, Cam Timing Oil Control Valve Housing
15678	15678-21010	Filter, Oil Control Valve
15678	15678-46010	Filter, Oil Control Valve
15678	15678-32010	Filter, Oil Control Valve
15678	15678-46020	Filter, Oil Control Valve
91511	91511-B0616	BOLT, FLANGE
91511	90080-10164	BOLT, FLANGE
91511	91511-G0612	Bolt
91511	91511-G0622	BOLT, FLANGE
91511	91511-K0630	Bolt
91512	91512-B1020	Bolt(For Front Transaxle Case Cover)
91512	90105-A0050	Bolt(For Front Transaxle Case Cover)
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9012606022	90126-06022	STUD HEX LOBULAR
9017606045	90176-06045	NUT, CAP CYL HEAD COVER
9017906156	90179-06156	Nut (For Transmission Control Cable)
9034114014	90341-14014	New Genuine Part
9043014009	90430-14009	Gasket(For Cylinder Head Screw Plug)
9151180622	91511-80622	New Genuine Part
9674119009	96741-19009	New Genuine Part

OEM	Part name	Category
11101-29475	Head Sub-Assy, Cylinder	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11101-29476	Head Sub-Assy, Cylinder	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11115-22060	Gasket, Cylinder Head	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11122-88600	Bush, Intake Valve Guide	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11123-88600	Bush, Intake Valve Guide	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11131-88601	Seat, Intake Valve	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11132-88601	Seat, Intake Valve	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11135-88601	Seat, Exhaust Valve	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11136-88601	Seat, Exhaust Valve	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11193-15010	Gasket(For Spark Plug Tube)	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11201-88600	Cover Sub-Assy, Cylinder Head	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11212-22120	Cover, Cylinder Head, No.2	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11212-22906	Cover, Cylinder Head	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
11213-88600	Gasket, Cylinder Head Cover	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
12180-21021	Cap Sub-Assy, Oil Filler	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
12281-88600	Hanger, Engine, No.1	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
12282-88600	Hanger, Engine, No.2	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
15330-22040	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
15337-88600	Housing, Cam Timing Control Valve	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
15338-22010	Gasket, Cam Timing Oil Control Valve Housing	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
15678-21010	Filter, Oil Control Valve	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
15678-32010	Filter, Oil Control Valve	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
15678-46010	Filter, Oil Control Valve	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
15678-46020	Filter, Oil Control Valve	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90080-10164	BOLT, FLANGE	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90105-A0050	Bolt(For Front Transaxle Case Cover)	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90116-06127	Bolt, Stud(For Oil Pan)	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90119-07001	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90119-07002	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90126-06022	STUD HEX LOBULAR	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90176-06045	NUT, CAP CYL HEAD COVER	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90179-06156	Nut (For Transmission Control Cable)	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90201-10344	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90250-05021	Pin, Straight	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90341-14014	New Genuine Part	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90341-27003	Plug, W/head Taper Screw, No.1	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90430-14009	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90910-02140	Bolt(For Cylinder Head Set)	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
90919-05007	Sensor, Cam Position	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
91511-80622	New Genuine Part	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
91511-B0616	BOLT, FLANGE	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
91511-G0612	Bolt	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
91511-G0622	BOLT, FLANGE	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
91511-K0630	Bolt	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
91512-B1020	Bolt(For Front Transaxle Case Cover)	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
96411-41800	Plug, Tight, No.1	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)
96741-19009	New Genuine Part	Cylinder Head ([01.2002 - ] (0201- )2ZZGE..NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 159
Collected: 2026-08-02
