Search › Model › ZZE128
ZZE128

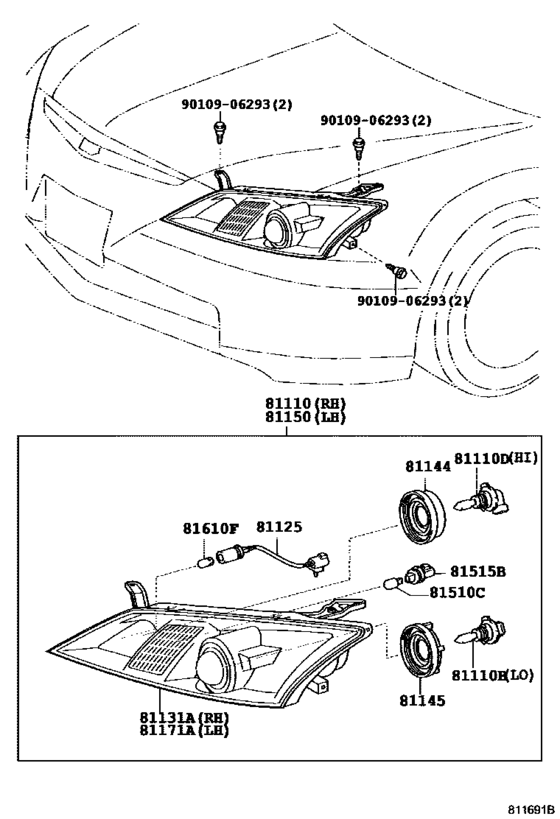

Headlamp ([04.2001 - ] (0104- )) 15
| # | OEM | Part name |
|---|---|---|
| 81110 | 81110-1E650 | Headlamp Assy, Rh |
| 81110 | 90080-81040 | Bulb(For Headlamp, No.1) |
| 81110 | 90981-13047 | Bulb (HB4) |
| 81110 | 90981-13046 | Bulb(For Headlamp, No.1) (12V, 65W) |
| 81125 | 81125-1E620 | Cord, Headlamp |
| 81131 | 81130-1E650 | Unit, Headlamp, Rh |
| 81144 | 90075-65006 | Cover, Headlamp Back, No.1 |
| 81145 | 90075-99062 | Cover, Headlamp, No.2 |
| 81150 | 81150-1E520 | Headlamp Assy, Lh |
| 81171 | 81170-1E520 | Unit, Headlamp, Lh |
| 81510 | 90981-13043 | Bulb (12V 21W) |
| 81515 | 90075-99080 | Cover, Fog Lamp |
| 81610 | 99132-12050 | Bulb (12V 5W) |
| 81610 | 90080-81053 | Bulb(For Clearance Lamp) |
| 9010906293 | 90109-06293 | BOLTFOLDING SEAT |
| OEM | Part name | Category |
|---|---|---|
| 81110-1E650 | Headlamp Assy, Rh | Headlamp ([04.2001 - ] (0104- )) |
| 81125-1E620 | Cord, Headlamp | Headlamp ([04.2001 - ] (0104- )) |
| 81130-1E650 | Unit, Headlamp, Rh | Headlamp ([04.2001 - ] (0104- )) |
| 81150-1E520 | Headlamp Assy, Lh | Headlamp ([04.2001 - ] (0104- )) |
| 81170-1E520 | Unit, Headlamp, Lh | Headlamp ([04.2001 - ] (0104- )) |
| 90075-65006 | Cover, Headlamp Back, No.1 | Headlamp ([04.2001 - ] (0104- )) |
| 90075-99062 | Cover, Headlamp, No.2 | Headlamp ([04.2001 - ] (0104- )) |
| 90075-99080 | Cover, Fog Lamp | Headlamp ([04.2001 - ] (0104- )) |
| 90080-81040 | Bulb(For Headlamp, No.1) | Headlamp ([04.2001 - ] (0104- )) |
| 90080-81053 | Bulb(For Clearance Lamp) | Headlamp ([04.2001 - ] (0104- )) |
| 90109-06293 | BOLTFOLDING SEAT | Headlamp ([04.2001 - ] (0104- )) |
| 90981-13043 | Bulb (12V 21W) | Headlamp ([04.2001 - ] (0104- )) |
| 90981-13046 | Bulb(For Headlamp, No.1) (12V, 65W) | Headlamp ([04.2001 - ] (0104- )) |
| 90981-13047 | Bulb (HB4) | Headlamp ([04.2001 - ] (0104- )) |
| 99132-12050 | Bulb (12V 5W) | Headlamp ([04.2001 - ] (0104- )) |
