ZZE128

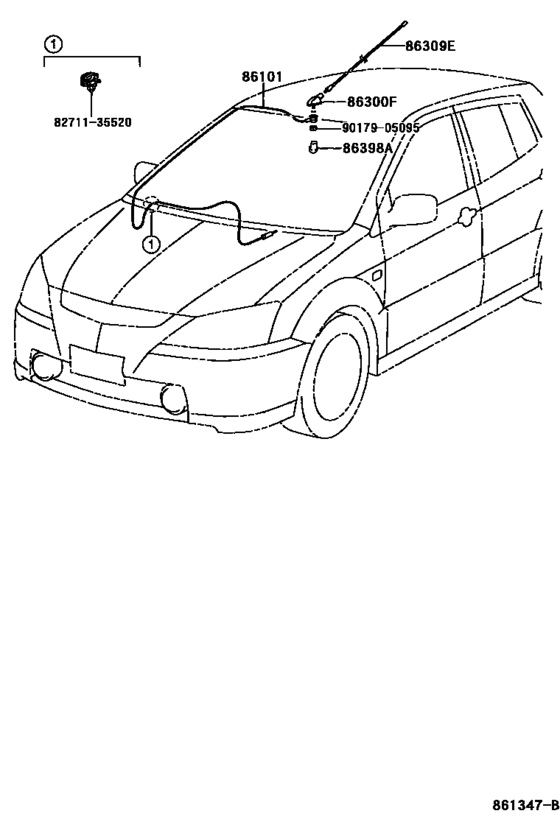

Antenna ([04.2001 - ] (0104- )) 8
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-0W070 | Cord Sub-Assy, Antenna |
| 86300 | 86300-0W020 | Holder Assy, Antenna (Cord/pole Separate Type) |
| 86309 | 86309-0W040 | Pole Sub-Assy, Pillar Antenna |
| 86309 | 86309-0W020 | Pole Sub-Assy, Pillar Antenna |
| 86398 | 86398-12010 | Cap, Antenna Shield |
| 8271135520 | 82711-35520 | Clamp No.1 (For Windseield Washer) |
| 9017905095 | 90179-05095 | NUT |
| 9017905095 | 90179-05004 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 82711-35520 | Clamp No.1 (For Windseield Washer) | Antenna ([04.2001 - ] (0104- )) |
| 86101-0W070 | Cord Sub-Assy, Antenna | Antenna ([04.2001 - ] (0104- )) |
| 86300-0W020 | Holder Assy, Antenna (Cord/pole Separate Type) | Antenna ([04.2001 - ] (0104- )) |
| 86309-0W020 | Pole Sub-Assy, Pillar Antenna | Antenna ([04.2001 - ] (0104- )) |
| 86309-0W040 | Pole Sub-Assy, Pillar Antenna | Antenna ([04.2001 - ] (0104- )) |
| 86398-12010 | Cap, Antenna Shield | Antenna ([04.2001 - ] (0104- )) |
| 90179-05004 | NUT | Antenna ([04.2001 - ] (0104- )) |
| 90179-05095 | NUT | Antenna ([04.2001 - ] (0104- )) |
