Search › Model › ZZE127
ZZE127

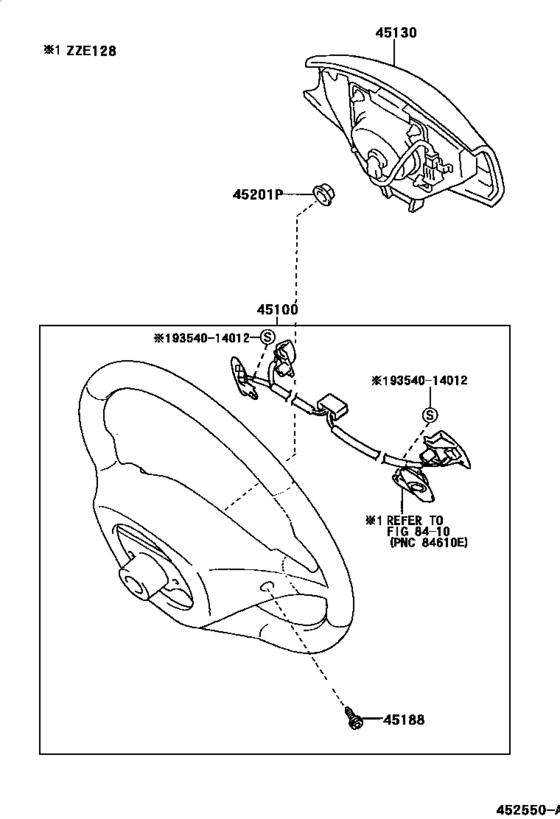

Steering Wheel ([04.2001 - ] 3-SPOKE (0104- )) 6
| # | OEM | Part name |
|---|---|---|
| 45100 | 45100-1A080-C0 | Wheel Assy, Steering |
| 45100 | 45100-1A100-C0 | Wheel Assy, Steering |
| 45130 | 45130-1A230-C0 | Button Assy, Horn |
| 45188 | 90148-60007 | Screw, Steering Wheel Pad Attaching |
| 45201 | 90179-12071 | Nut, Steering Wheel Set |
| 9354014012 | 93540-14012 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 45100-1A080-C0 | Wheel Assy, Steering | Steering Wheel ([04.2001 - ] 3-SPOKE (0104- )) |
| 45100-1A100-C0 | Wheel Assy, Steering | Steering Wheel ([04.2001 - ] 3-SPOKE (0104- )) |
| 45130-1A230-C0 | Button Assy, Horn | Steering Wheel ([04.2001 - ] 3-SPOKE (0104- )) |
| 90148-60007 | Screw, Steering Wheel Pad Attaching | Steering Wheel ([04.2001 - ] 3-SPOKE (0104- )) |
| 90179-12071 | Nut, Steering Wheel Set | Steering Wheel ([04.2001 - ] 3-SPOKE (0104- )) |
| 93540-14012 | Screw | Steering Wheel ([04.2001 - ] 3-SPOKE (0104- )) |
