Search › Model › ZZE127

ZZE127

Toyota WILL · 2001 · 2,832 parts · 158 categories

← Back to categories

2,832 items

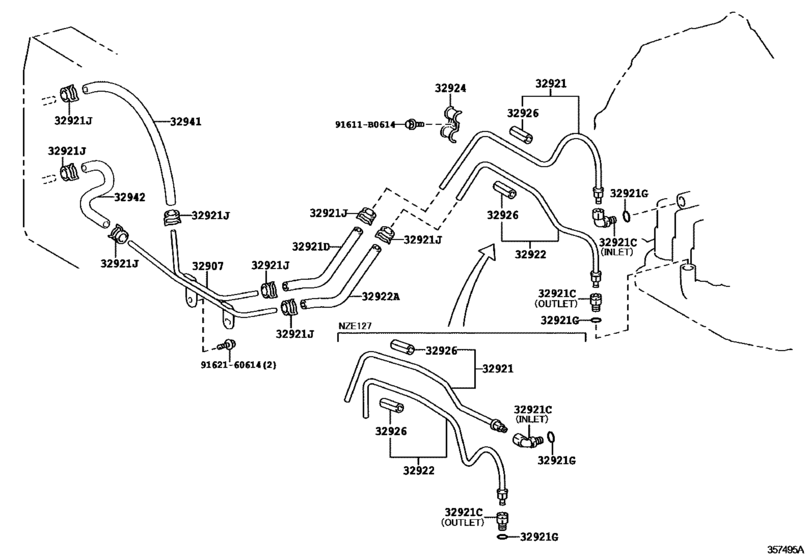

Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129) 18

#	OEM	Part name
32907	32907-12020	Tube Sub-Assy, Oil Cooler Outlet, No.2
32921	32921-12460	Tube, Oil Cooler Inlet, No.1
32921	32921-13030	Tube, Oil Cooler Inlet, No.1
32921	90404-14007	Union(For Oil Cooler Tube)
32921	90407-14003	Union(For Oil Cooler Tube)
32921	32943-12010	Hose(For Oil Cooler Inlet)
32921	90445-15042	Hose(For Oil Cooler Inlet)
32921	90445-15020	Hose(For Oil Cooler Inlet)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32921	96135-51300	Clamp, Hose
32922	32922-12350	Tube, Oil Cooler Outlet, No.1
32924	90462-10127	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32926	32926-10010	Cushion, Oil Cooler Tube(Atm)
32941	90445-15039	Hose(For Oil Cooler Inlet)
32941	90445-15058	Hose(For Oil Cooler Inlet)
32942	90445-15050	Hose(For Oil Cooler Inlet)
91611	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9162160614	91621-60614	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
32907-12020	Tube Sub-Assy, Oil Cooler Outlet, No.2	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
32921-12460	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
32921-13030	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
32922-12350	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
32926-10010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
32943-12010	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
90404-14007	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
90407-14003	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
90445-15020	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
90445-15039	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
90445-15042	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
90445-15050	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
90445-15058	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
90462-10127	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
91621-60614	Bolt(For Transaxle & Engine Setting)	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)
96135-51300	Clamp, Hose	Oil Cooler & Tube (Atm) ([04.2001 - ] U340E,U341E,U341F (0104- )NZE127,ZZE127,129)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 158
Collected: 2026-08-04
