Search › Model › ZZE124

ZZE124

Toyota COROLLA-RUNX-ALLEX · 2002 · 4,363 parts · 206 categories

← Back to categories

4,363 items

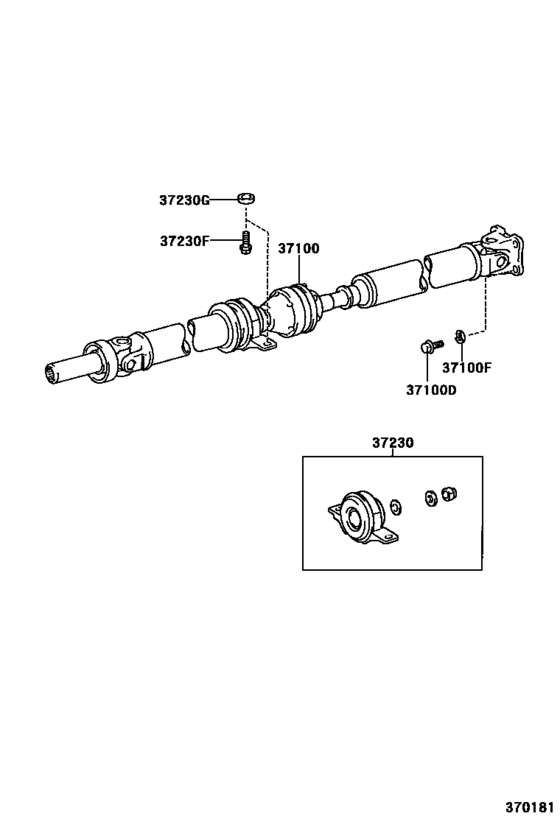

Propeller Shaft & Universal Joint ([01.2001 - ] (0101- )NZE124,ZZE124) 10

#	OEM	Part name
37100	37100-12620	Shaft Assy, Propeller W/center Bearing
37100	90105-10423	Bolt, No.1 (For Propeller Shaft & Differential Setting)
37100	90204-10002	Washer, No.1 (For Propeller Shaft & Differential Setting)
37100	90560-10H00	Washer, No.1 (For Propeller Shaft & Differential Setting)
37230	37230-19015	Bearing Assy, Center Support, No.1
37230	90119-10444	Bolt, No.1 (For Center Support Bearing)
37230	90201-10008	Washer, No.2 (For Center Support Bearing)
37230	90201-10017	Washer, No.2 (For Center Support Bearing)
37230	90201-10033	Washer, No.2 (For Center Support Bearing)
37230	90201-10040	Washer, No.2 (For Center Support Bearing)

OEM	Part name	Category
37100-12620	Shaft Assy, Propeller W/center Bearing	Propeller Shaft & Universal Joint ([01.2001 - ] (0101- )NZE124,ZZE124)
37230-19015	Bearing Assy, Center Support, No.1	Propeller Shaft & Universal Joint ([01.2001 - ] (0101- )NZE124,ZZE124)
90105-10423	Bolt, No.1 (For Propeller Shaft & Differential Setting)	Propeller Shaft & Universal Joint ([01.2001 - ] (0101- )NZE124,ZZE124)
90119-10444	Bolt, No.1 (For Center Support Bearing)	Propeller Shaft & Universal Joint ([01.2001 - ] (0101- )NZE124,ZZE124)
90201-10008	Washer, No.2 (For Center Support Bearing)	Propeller Shaft & Universal Joint ([01.2001 - ] (0101- )NZE124,ZZE124)
90201-10017	Washer, No.2 (For Center Support Bearing)	Propeller Shaft & Universal Joint ([01.2001 - ] (0101- )NZE124,ZZE124)
90201-10033	Washer, No.2 (For Center Support Bearing)	Propeller Shaft & Universal Joint ([01.2001 - ] (0101- )NZE124,ZZE124)
90201-10040	Washer, No.2 (For Center Support Bearing)	Propeller Shaft & Universal Joint ([01.2001 - ] (0101- )NZE124,ZZE124)
90204-10002	Washer, No.1 (For Propeller Shaft & Differential Setting)	Propeller Shaft & Universal Joint ([01.2001 - ] (0101- )NZE124,ZZE124)
90560-10H00	Washer, No.1 (For Propeller Shaft & Differential Setting)	Propeller Shaft & Universal Joint ([01.2001 - ] (0101- )NZE124,ZZE124)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 206
Collected: 2026-08-02
