ZZE124

Toyota COROLLA-RUNX-ALLEX · 2002 · 4,363 parts · 206 categories

4,363 items

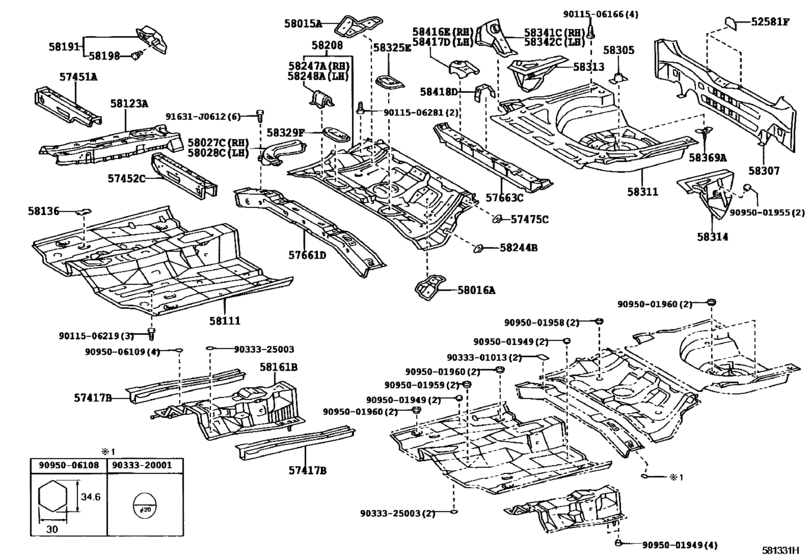

Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124) 55

#	OEM	Part name
52581	52581-13030	Protector, Rear Bumper
57417	57417-13020	Reinforcement, Front Floor Under
57417	57418-13020	Reinforcement, Front Floor Under
57451	57051-12040	Member, Front Floor Cross, Rh
57451	57451-12201	Member, Front Floor Cross, Rh
57451	57451-12202	Member, Front Floor Cross, Rh
57452	57452-12031	Member, Front Floor Cross, Lh
57475	57475-13020	Plate, Front Floor Crossmember
57661	57407-13100	Member, Rear Floor Cross, Front
57663	57663-13070	Member, Rear Floor Cross, Center
58015	58015-12070	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-13040	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58027	58027-13010	Panel Sub-Assy, Center Floor Side, Rh
58028	58028-13010	Panel Sub-Assy, Center Floor Side, Lh
58111	58111-12903	Pan, Front Floor
58111	58111-12292	Pan, Front Floor
58111	90950-01959	Cover, Console Box Hole
58123	58013-12050	Support, Shift & Select Lever
58136	58136-33010	Cover, Front Floor Hole
58161	57805-12091	Reinforcement, Belt Anchor To Floor Pan
58161	57805-12092	Reinforcement, Belt Anchor To Floor Pan
58191	58191-12120	Footrest, Front Floor
58198	58198-20210	Clip, Footrest
58198	90467-09220	Clip, Footrest
58208	58211-13911	Pan, Center Floor
58244	58244-13030	Bracket, Rear Seat Cushion Mounting
58247	58247-12070	Reinforcement, Rear Seat Cushion Hinge, Rh
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-13150	Panel Sub-Assy, Body Lower Back
58311	58311-13901	Pan, Rear Floor
58311	58311-13917	Pan, Rear Floor
58311	90333-40001	Plate, Noise Control, No.1
58313	58313-13150	Panel, Rear Floor Side, Rh
58314	58314-13140	Panel, Rear Floor Side, Lh
58325	58325-32050	Cover, Rear Floor Service Hole
58329	58329-32020	Cover, Rear Floor Service Hole, No.2
58341	58341-13050	Bracket, Rear Absorber Mounting, No.1 Rh
58342	58342-13050	Bracket, Rear Absorber Mounting, No.1 Lh
58369	58369-47010	Bracket, Fuel Tube, No.3
58416	58416-13100	Bracket, Deck Board, No.1 Rh
58417	58417-13080	Bracket, Deck Board, No.1 Lh
58418	58418-13060	Bracket, Deck Board, No.2
91631	91631-J0612	BRACKET
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9011506281	90115-06281	New Genuine Part
9033301013	90333-01013	New Genuine Part
9033320001	90333-20001	PLUG
9033325003	90333-25003	Plug, Hole(For Hood)
9095001949	90950-01949	PLUG HOLE
9095001955	90950-01955	Plug, Hole, No.1(For Dash Panel)
9095001958	90950-01958	Plug, Hole(For Back Door Panel)
9095001960	90950-01960	Plug, Hole(For Floor Panel)
9095006108	90950-06108	COVER HOLE
9095006109	90950-06109	New Genuine Part

OEM	Part name	Category
52581-13030	Protector, Rear Bumper	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
57051-12040	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
57407-13100	Member, Rear Floor Cross, Front	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
57417-13020	Reinforcement, Front Floor Under	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
57418-13020	Reinforcement, Front Floor Under	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
57451-12201	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
57451-12202	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
57452-12031	Member, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
57475-13020	Plate, Front Floor Crossmember	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
57663-13070	Member, Rear Floor Cross, Center	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
57805-12091	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
57805-12092	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58013-12050	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58015-12070	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58016-13040	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58027-13010	Panel Sub-Assy, Center Floor Side, Rh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58028-13010	Panel Sub-Assy, Center Floor Side, Lh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58111-12292	Pan, Front Floor	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58111-12903	Pan, Front Floor	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58191-12120	Footrest, Front Floor	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58198-20210	Clip, Footrest	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58211-13911	Pan, Center Floor	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58244-13030	Bracket, Rear Seat Cushion Mounting	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58247-12070	Reinforcement, Rear Seat Cushion Hinge, Rh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58307-13150	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58311-13901	Pan, Rear Floor	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58311-13917	Pan, Rear Floor	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58313-13150	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58314-13140	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58325-32050	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58329-32020	Cover, Rear Floor Service Hole, No.2	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58341-13050	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58342-13050	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58369-47010	Bracket, Fuel Tube, No.3	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58416-13100	Bracket, Deck Board, No.1 Rh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58417-13080	Bracket, Deck Board, No.1 Lh	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
58418-13060	Bracket, Deck Board, No.2	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90115-06281	New Genuine Part	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90333-01013	New Genuine Part	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90333-20001	PLUG	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90333-25003	Plug, Hole(For Hood)	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90333-40001	Plate, Noise Control, No.1	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90467-09220	Clip, Footrest	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90950-01949	PLUG HOLE	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90950-01955	Plug, Hole, No.1(For Dash Panel)	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90950-01958	Plug, Hole(For Back Door Panel)	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90950-01959	Cover, Console Box Hole	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90950-01960	Plug, Hole(For Floor Panel)	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90950-06108	COVER HOLE	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
90950-06109	New Genuine Part	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
91631-J0612	BRACKET	Floor Pan & Lower Back Panel ([01.2001 - 09.2006] (0101-0609)NZE124,ZZE124)
