Search › Model › ZZE112
ZZE112

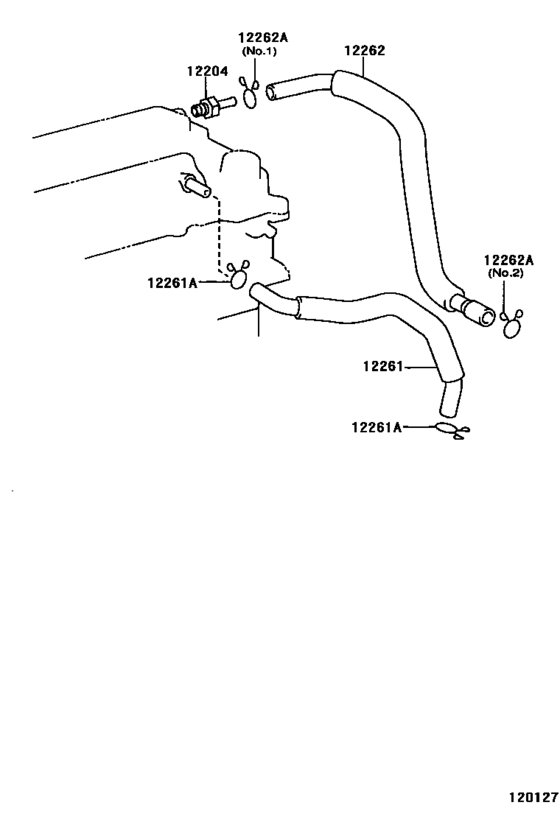

Ventilation Hose ([05.2000 - ] (0005- )3ZZFE,4ZZFE) 7
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-22050 | Valve Sub-Assy, Ventilation |
| 12204 | 12204-22051 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-22040 | Hose, Ventilation |
| 12261 | 90467-21152 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-22030 | Hose, Ventilation, No.2 |
| 12262 | 90467-13103 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 90467-19003 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-22050 | Valve Sub-Assy, Ventilation | Ventilation Hose ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 12204-22051 | Valve Sub-Assy, Ventilation | Ventilation Hose ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 12261-22040 | Hose, Ventilation | Ventilation Hose ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 12262-22030 | Hose, Ventilation, No.2 | Ventilation Hose ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 90467-13103 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 90467-19003 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 90467-21152 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
