Search › Model › ZZE112
ZZE112

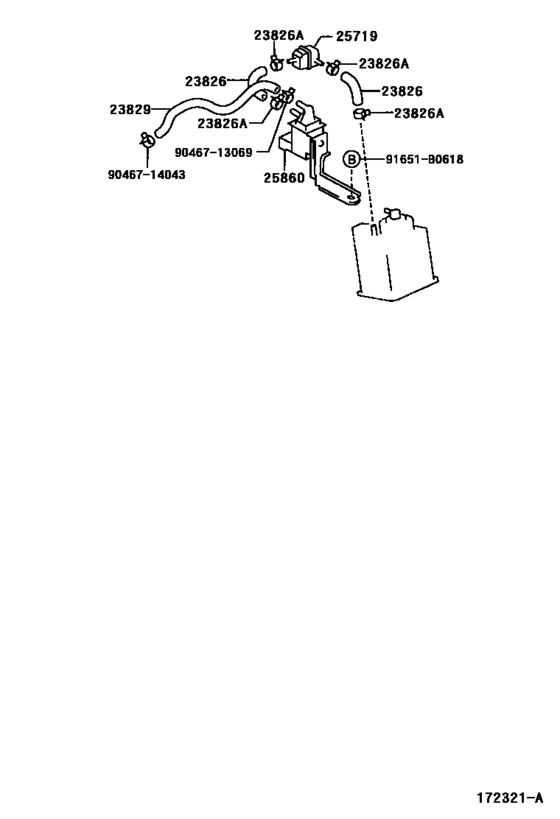

Vacuum Piping ([05.2000 - ] (0005- )3ZZFE,4ZZFE) 10
| # | OEM | Part name |
|---|---|---|
| 23826 | 23826-22060 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 96132-41100 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23826 | 96132-51100 | Clip (For Hose) |
| 23829 | 23829-22020 | Hose, Fuel Vapor Feed, No.3 |
| 25719 | 25719-62040 | Tank, Vacuum Surge |
| 25860 | 25860-22040 | Valve Assy, Vacuum Switching, No.1 |
| 91651 | 91651-B0618 | BOLT WWASHER |
| 9046713069 | 90467-13069 | Clip(For Fuel Vapor Feed Hose, No.2) |
| 9046713069 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 9046714043 | 90467-14043 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 23826-22060 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 23829-22020 | Hose, Fuel Vapor Feed, No.3 | Vacuum Piping ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 25719-62040 | Tank, Vacuum Surge | Vacuum Piping ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 25860-22040 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 90467-13069 | Clip(For Fuel Vapor Feed Hose, No.2) | Vacuum Piping ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 90467-14043 | Clip Or Clamp(For Ventilation Hose) | Vacuum Piping ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 91651-B0618 | BOLT WWASHER | Vacuum Piping ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 96132-41100 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([05.2000 - ] (0005- )3ZZFE,4ZZFE) |
