Search › Model › ZZE112
ZZE112

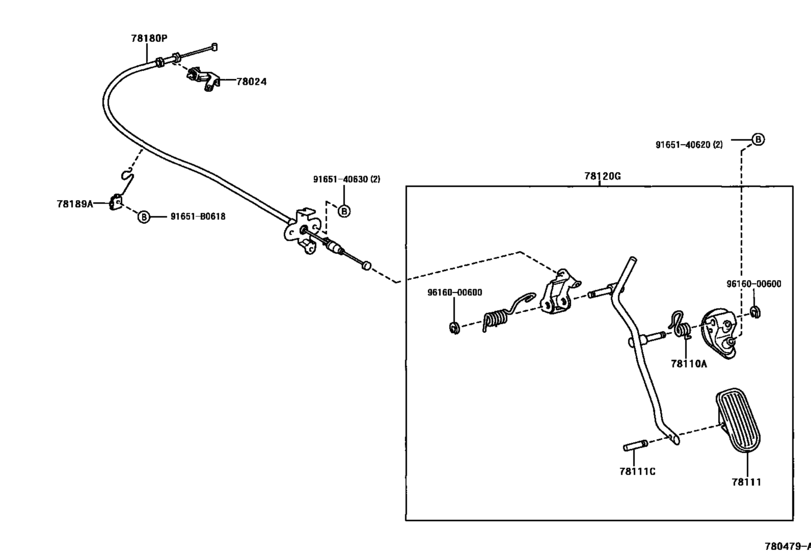

Accelerator Link ([05.2000 - ] (0005- )ZZE11#) 11
| # | OEM | Part name |
|---|---|---|
| 78024 | 78024-12060 | Bracket Sub-Assy, Accelerator Control Cable |
| 78110 | 90508-26036 | Spring (For Accelerator Pedal Rod) |
| 78111 | 78111-20060 | Pedal, Accelerator |
| 78111 | 90254-04019 | Pin (For Accelerator Pedal) |
| 78120 | 78120-12201 | Rod Assy, Accelerator Pedal |
| 78180 | 78180-1A690 | Cable Assy, Accelerator Control |
| 78189 | 78189-12050 | Support, Accelerator Control Cable, No.2 |
| 91651 | 91651-B0618 | BOLT WWASHER |
| 9165140620 | 91651-40620 | BOLT |
| 9165140630 | 91651-40630 | BOLT |
| 9616000600 | 96160-00600 | Ring, E(For Clutch Pedal Pawl) |
| OEM | Part name | Category |
|---|---|---|
| 78024-12060 | Bracket Sub-Assy, Accelerator Control Cable | Accelerator Link ([05.2000 - ] (0005- )ZZE11#) |
| 78111-20060 | Pedal, Accelerator | Accelerator Link ([05.2000 - ] (0005- )ZZE11#) |
| 78120-12201 | Rod Assy, Accelerator Pedal | Accelerator Link ([05.2000 - ] (0005- )ZZE11#) |
| 78180-1A690 | Cable Assy, Accelerator Control | Accelerator Link ([05.2000 - ] (0005- )ZZE11#) |
| 78189-12050 | Support, Accelerator Control Cable, No.2 | Accelerator Link ([05.2000 - ] (0005- )ZZE11#) |
| 90254-04019 | Pin (For Accelerator Pedal) | Accelerator Link ([05.2000 - ] (0005- )ZZE11#) |
| 90508-26036 | Spring (For Accelerator Pedal Rod) | Accelerator Link ([05.2000 - ] (0005- )ZZE11#) |
| 91651-40620 | BOLT | Accelerator Link ([05.2000 - ] (0005- )ZZE11#) |
| 91651-40630 | BOLT | Accelerator Link ([05.2000 - ] (0005- )ZZE11#) |
| 91651-B0618 | BOLT WWASHER | Accelerator Link ([05.2000 - ] (0005- )ZZE11#) |
| 96160-00600 | Ring, E(For Clutch Pedal Pawl) | Accelerator Link ([05.2000 - ] (0005- )ZZE11#) |
