ZZE110

Toyota COROLLA · 1997 · 3,705 parts · 168 categories

← Back to categories

3,705 items

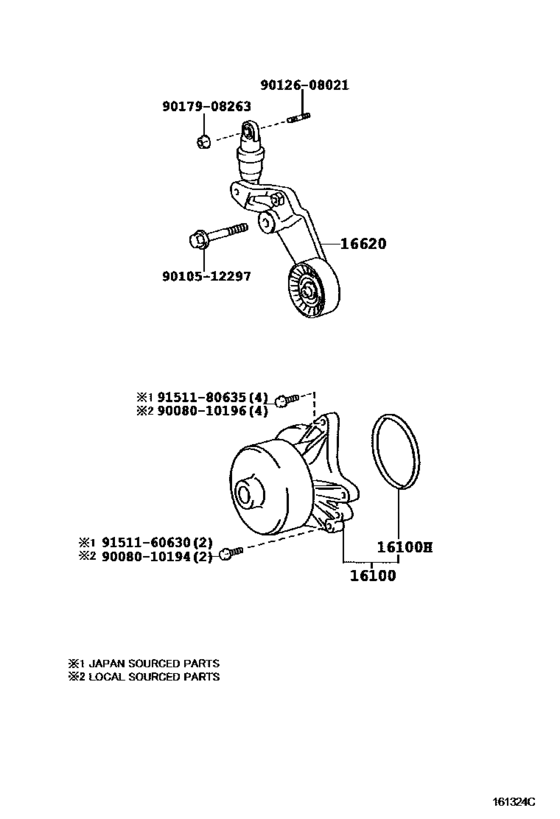

Water Pump ([08.1997 - ] (9708- )) 15

#	OEM	Part name
16100	16100-09080	Pump Assy, Engine Water
16100	91511-G0622	BOLT, FLANGE
16100	16100-09170	Pump Assy, Engine Water
16100	90301-69006	Ring, O(For Water Pump)
16620	16620-22010	Tensioner Assy, V-Ribbed Belt
16620	16620-0W093	Tensioner Assy, V-Ribbed Belt
16620	16620-22011	Tensioner Assy, V-Ribbed Belt
9008010194	90080-10194	New Genuine Part
9008010196	90080-10196	New Genuine Part
9010512297	90105-12297	BOLT WASHER BASED
9012608021	90126-08021	Bolt, Stud(For Intake Manifold To Cylinder Head)
9017908263	90179-08263	New Genuine Part
9151160630	91511-60630	BOLT
9151180635	91511-80635	New Genuine Part
9151180635	91511-C0635	BOLT, FLANGE

OEM	Part name	Category
16100-09080	Pump Assy, Engine Water	Water Pump ([08.1997 - ] (9708- ))
16100-09170	Pump Assy, Engine Water	Water Pump ([08.1997 - ] (9708- ))
16620-0W093	Tensioner Assy, V-Ribbed Belt	Water Pump ([08.1997 - ] (9708- ))
16620-22010	Tensioner Assy, V-Ribbed Belt	Water Pump ([08.1997 - ] (9708- ))
16620-22011	Tensioner Assy, V-Ribbed Belt	Water Pump ([08.1997 - ] (9708- ))
90080-10194	New Genuine Part	Water Pump ([08.1997 - ] (9708- ))
90080-10196	New Genuine Part	Water Pump ([08.1997 - ] (9708- ))
90105-12297	BOLT WASHER BASED	Water Pump ([08.1997 - ] (9708- ))
90126-08021	Bolt, Stud(For Intake Manifold To Cylinder Head)	Water Pump ([08.1997 - ] (9708- ))
90179-08263	New Genuine Part	Water Pump ([08.1997 - ] (9708- ))
90301-69006	Ring, O(For Water Pump)	Water Pump ([08.1997 - ] (9708- ))
91511-60630	BOLT	Water Pump ([08.1997 - ] (9708- ))
91511-80635	New Genuine Part	Water Pump ([08.1997 - ] (9708- ))
91511-C0635	BOLT, FLANGE	Water Pump ([08.1997 - ] (9708- ))
91511-G0622	BOLT, FLANGE	Water Pump ([08.1997 - ] (9708- ))
