Search › Model › ZZE110

ZZE110

Toyota COROLLA · 1997 · 3,705 parts · 168 categories

3,705 items

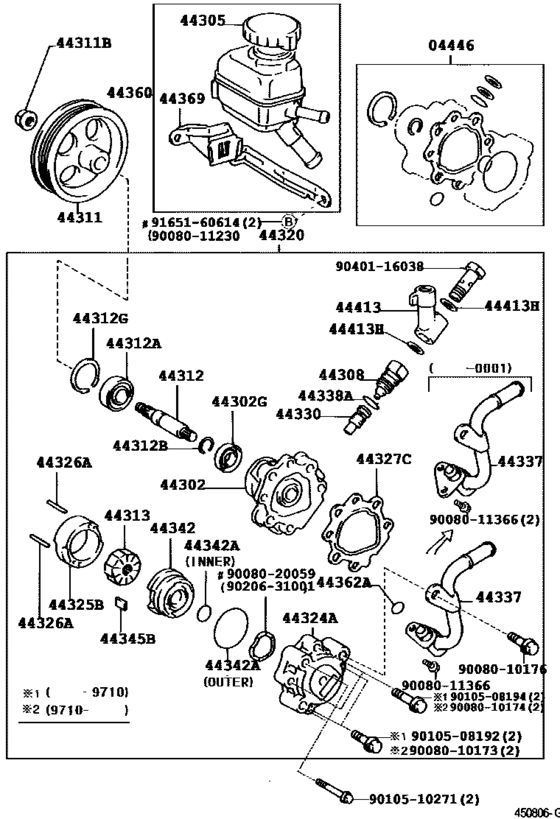

Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- )) 58

#	OEM	Part name
4446	04446-02030	Gasket Kit, Power Steering Pump
44302	44302-02090	Housing Sub-Assy, Vane Pump, Front
44302	90080-31020	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-06010	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-32040	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-16060	Union Sub-Assy, Pressure Port
44311	44311-02080	Pulley, Vane Pump
44311	90178-12003	Nut(For Vane Pump Pulley)
44312	44312-06010	Shaft, Vane Pump
44312	90080-52033	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-06010	Rotor, Vane Pump
44313	44313-06020	Rotor, Vane Pump
44313	44313-06030	Rotor, Vane Pump
44313	44313-06040	Rotor, Vane Pump
44313	44313-06050	Rotor, Vane Pump
44320	44320-02034	Pump Assy, Vane
44324	44324-06010	Housing, Pump, Rear
44325	44325-02060	Ring, Vane Pump Cam
44325	44325-02070	Ring, Vane Pump Cam
44325	44325-02080	Ring, Vane Pump Cam
44325	44325-02090	Ring, Vane Pump Cam
44325	44325-02100	Ring, Vane Pump Cam
44326	90080-25024	Pin, Straight(For Vane Pump Cam Ring)
44327	44327-04010	Gasket, Vane Pump Housing
44330	44330-02070	Valve Assy, Flow Control
44330	44330-02080	Valve Assy, Flow Control
44330	44330-02090	Valve Assy, Flow Control
44330	44330-02100	Valve Assy, Flow Control
44330	44330-02110	Valve Assy, Flow Control
44330	44330-02120	Valve Assy, Flow Control
44337	44337-02060	Union, Power Steering Suction Port
44338	90080-30035	Ring, O(For Pressure Port Union)
44342	44342-02031	Plate, Vane Pump Side, Rear
44342	90080-30031	Ring, O(For Vane Pump Side Plate Rear)
44342	90080-30032	Ring, O(For Vane Pump Side Plate Rear)
44345	44345-04010	Plate, Vane Pump
44345	44345-04020	Plate, Vane Pump
44345	44345-04030	Plate, Vane Pump
44345	44345-04040	Plate, Vane Pump
44345	44345-04050	Plate, Vane Pump
44360	44360-02020	Reservoir Assy, Vane Pump Oil
44362	90080-30034	Ring, O(For Power Steering Suction Port)
44362	90301-11016	Ring, O(For Power Steering Suction Port)
44369	44369-02020	Bracket, Oil Reservoir, No.1
44413	44413-02030	Tube, Pressure Feed, No.1
44413	90430-16242	Gasket, W/head Straight Screw Plug
9008010173	90080-10173	New Genuine Part
9008010174	90080-10174	New Genuine Part
9008010176	90080-10176	New Genuine Part
9008011230	90080-11230	New Genuine Part
9008011366	90080-11366	New Genuine Part
9008020059	90080-20059	New Genuine Part
9010508192	90105-08192	New Genuine Part
9010508194	90105-08194	New Genuine Part
9010510271	90105-10271	BOLT WASHER BASED
9020631001	90206-31001	WASHER WAVE
9040116038	90401-16038	New Genuine Part
9165160614	91651-60614	Bolt

OEM	Part name	Category
04446-02030	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44302-02090	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44305-06010	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44305-32040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44308-16060	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44311-02080	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44312-06010	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44313-06010	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44313-06020	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44313-06030	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44313-06040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44313-06050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44320-02034	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44324-06010	Housing, Pump, Rear	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44325-02060	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44325-02070	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44325-02080	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44325-02090	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44325-02100	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44327-04010	Gasket, Vane Pump Housing	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44330-02070	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44330-02080	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44330-02090	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44330-02100	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44330-02110	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44330-02120	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44337-02060	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44342-02031	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44345-04010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44345-04020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44345-04030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44345-04040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44345-04050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44360-02020	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44369-02020	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
44413-02030	Tube, Pressure Feed, No.1	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-10173	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-10174	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-10176	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-11230	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-11366	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-20059	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-25024	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-30031	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-30032	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-30034	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-30035	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-31020	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90080-52033	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90105-08192	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90105-08194	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90105-10271	BOLT WASHER BASED	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90178-12003	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90206-31001	WASHER WAVE	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90401-16038	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
90430-16242	Gasket, W/head Straight Screw Plug	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
91651-60614	Bolt	Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- ))
