ZZE110

Toyota COROLLA · 1997 · 3,705 parts · 168 categories

3,705 items

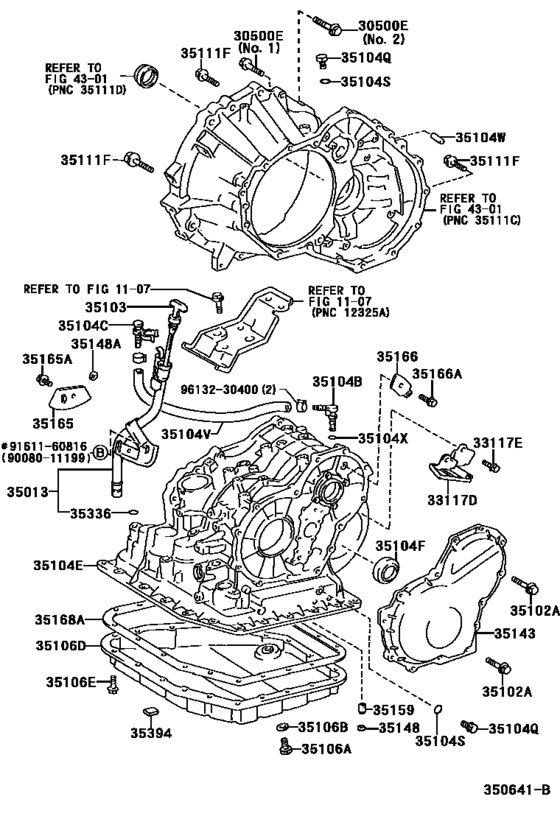

Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC) 41

#	OEM	Part name
30500	90080-11423	Bolt(For Transaxle & Engine Setting)
30500	91619-61255	Bolt(For Transaxle & Engine Setting)
30500	91642-81055	Bolt(For Transaxle & Engine Setting)
33117	33117-02030	Protector, Automatic Transmission Case
33117	90080-10083	Bolt(For Automatic Transmission Case Protector)
33117	90105-08040	Bolt(For Plate Bolt Lock)
33117	91641-H0820	Bolt
35013	35013-02020	Tube Sub-Assy, Transmission Oil Filler
35102	90105-06198	Bolt (For Transaxle Rear Cover Setting)
35102	91511-80625	Bolt (For Transaxle Rear Cover Setting)
35103	35103-02050	Gage Sub-Assy, Transmission Oil Level
35104	90930-03132	Plug, Breather, No.1 (Atm)
35104	90930-03099	Plug, Breather, No.1 (Atm)
35104	35104-12230	Case Sub-Assy, Automatic Transaxle
35104	90311-34026	Oil Seal, Front Drive Shaft, Lh
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	90447-11024	Hose (For Breather Plug)
35104	90250-10021	Pin, Straight (For Transaxle Case)
35104	90301-06010	Ring, O(For Breather Plug)
35106	90341-10011	Drain Plug (No Type)
35106	35178-30010	Drain Plug Gasket
35106	35106-12090	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35111	90105-08071	Bolt (For Transaxle Rear Cover Setting)
35111	90105-08288	Bolt (For Transaxle Housing & Transaxle Case Setting)
35143	35143-12030	Cover, Transmission Case, Rear
35148	35148-16010	Gasket (For Automatic Transfer Case)
35148	35148-12010	Gasket, Governor Apply, No.2
35159	35159-20010	Gasket, Brake Drum
35165	35165-12010	Plate, Transmission Case, No.1
35165	90105-06049	Bolt(For Transmission Case No.2 Plate)
35166	35166-12020	Plate, Transmission Case, No.3
35168	35168-12030	Gasket, Automatic Transaxle Oil Pan
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
9008011199	90080-11199	Bolt (For Transmission Control Cable Bracket)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9613230400	96132-30400	Clip Or Clamp(For Ventilation Hose)
9613230400	96132-51000	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
33117-02030	Protector, Automatic Transmission Case	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35013-02020	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35103-02050	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35104-12230	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35106-12090	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35143-12030	Cover, Transmission Case, Rear	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35148-12010	Gasket, Governor Apply, No.2	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35148-16010	Gasket (For Automatic Transfer Case)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35159-20010	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35165-12010	Plate, Transmission Case, No.1	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35166-12020	Plate, Transmission Case, No.3	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35168-12030	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35178-30010	Drain Plug Gasket	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90080-10083	Bolt(For Automatic Transmission Case Protector)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90080-11199	Bolt (For Transmission Control Cable Bracket)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90080-11423	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90105-06049	Bolt(For Transmission Case No.2 Plate)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90105-06198	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90105-08040	Bolt(For Plate Bolt Lock)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90105-08071	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90105-08288	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90250-10021	Pin, Straight (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90301-06010	Ring, O(For Breather Plug)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90311-34026	Oil Seal, Front Drive Shaft, Lh	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90341-10011	Drain Plug (No Type)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90447-11024	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90930-03099	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
90930-03132	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
91511-80625	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
91611-B0816	Bolt	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
91619-61255	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
91641-H0820	Bolt	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
91642-81055	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([08.1997 - ] A245E (9708- )4FC)
