ZZE110

Toyota COROLLA · 1997 · 3,705 parts · 168 categories

3,705 items

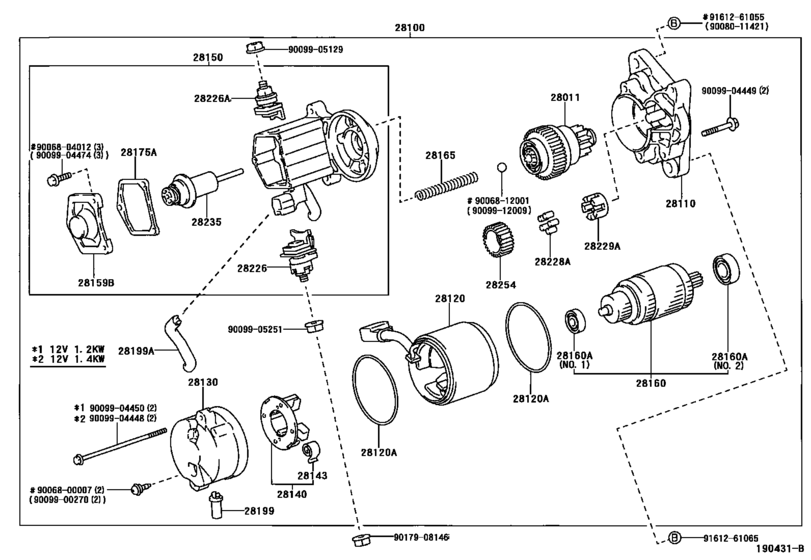

Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- )) 45

#	OEM	Part name
28011	28011-01020	Clutch Sub-Assy, Starter
28100	28100-0D020	Starter Assy
28100	28100-0D010	Starter Assy
28110	28110-0D010	Housing Assy, Starter Drive
28120	28120-01030	Yoke Assy, Starter
28120	90068-14001	Ring, O(For Starter Yoke)
28120	28120-0W030	Yoke Assy, Starter
28130	28130-0C010	Frame Assy, Starter Commutator End
28130	28130-0W060	Frame Assy, Starter Commutator End
28140	28140-01020	Holder Assy, Starter Brush
28140	28140-0D010	Holder Assy, Starter Brush
28143	90099-17112	Spring, Starter Brush
28150	28150-0D010	Switch Assy, Magnet Starter
28159	28159-07010	Cover, Starter Protector
28160	28160-01020	Armature Assy, Starter
28160	90068-10003	Bearing, Starter Armature
28160	90068-10004	Bearing, Starter Armature
28160	28160-0W020	Armature Assy, Starter
28165	28165-01020	Spring, Starter Magnet Switch Return
28175	28175-55050	Gasket, Magnet Switch Cover
28199	28199-74110	Cover, Starter End Frame
28199	28199-22010	Protector, Dust Starter
28226	28226-22050	Starter Kit, Battery Terminal
28226	28226-74070	Starter Kit, Battery Terminal
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-01020	Retainer, Starter Idle Gear
28235	28235-07010	Plunger, Magnet Switch
28254	28254-03010	Gear, Starter Idle
9006800007	90068-00007	Screw, Starter
9006804012	90068-04012	New Genuine Part
9006812001	90068-12001	New Genuine Part
9008011421	90080-11421	Bolt(For Transaxle & Engine Setting)
9009900270	90099-00270	Screw, Starter
9009904448	90099-04448	Bolt, Starter
9009904449	90099-04449	New Genuine Part
9009904450	90099-04450	New Genuine Part
9009904474	90099-04474	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009905251	90099-05251	New Genuine Part
9009912009	90099-12009	Ball, Starter Clutch
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161261055	91612-61055	Bolt (For Transfer Case)
9161261065	91612-61065	Bolt(For Transaxle & Engine Setting)
9161261065	90119-A0104	Bolt with Washer

OEM	Part name	Category
28011-01020	Clutch Sub-Assy, Starter	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28100-0D010	Starter Assy	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28100-0D020	Starter Assy	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28110-0D010	Housing Assy, Starter Drive	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28120-01030	Yoke Assy, Starter	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28120-0W030	Yoke Assy, Starter	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28130-0C010	Frame Assy, Starter Commutator End	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28130-0W060	Frame Assy, Starter Commutator End	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28140-01020	Holder Assy, Starter Brush	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28140-0D010	Holder Assy, Starter Brush	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28150-0D010	Switch Assy, Magnet Starter	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28159-07010	Cover, Starter Protector	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28160-01020	Armature Assy, Starter	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28160-0W020	Armature Assy, Starter	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28165-01020	Spring, Starter Magnet Switch Return	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28175-55050	Gasket, Magnet Switch Cover	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28199-22010	Protector, Dust Starter	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28199-74110	Cover, Starter End Frame	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28226-22050	Starter Kit, Battery Terminal	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28226-74070	Starter Kit, Battery Terminal	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28229-01020	Retainer, Starter Idle Gear	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28235-07010	Plunger, Magnet Switch	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
28254-03010	Gear, Starter Idle	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90068-00007	Screw, Starter	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90068-04012	New Genuine Part	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90068-10003	Bearing, Starter Armature	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90068-10004	Bearing, Starter Armature	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90068-12001	New Genuine Part	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90068-14001	Ring, O(For Starter Yoke)	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90080-11421	Bolt(For Transaxle & Engine Setting)	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90099-00270	Screw, Starter	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90099-04448	Bolt, Starter	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90099-04449	New Genuine Part	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90099-04450	New Genuine Part	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90099-04474	New Genuine Part	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90099-05251	New Genuine Part	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90099-12009	Ball, Starter Clutch	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90099-17112	Spring, Starter Brush	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90119-A0104	Bolt with Washer	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90179-08146	Nut	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
90179-08204	Nut	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
91612-61055	Bolt (For Transfer Case)	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
91612-61065	Bolt(For Transaxle & Engine Setting)	Starter ([08.1997 - ] 12V 1.2KW,1.4KW (9708- ))
