ZZE110

Toyota COROLLA · 1997 · 3,705 parts · 168 categories

3,705 items

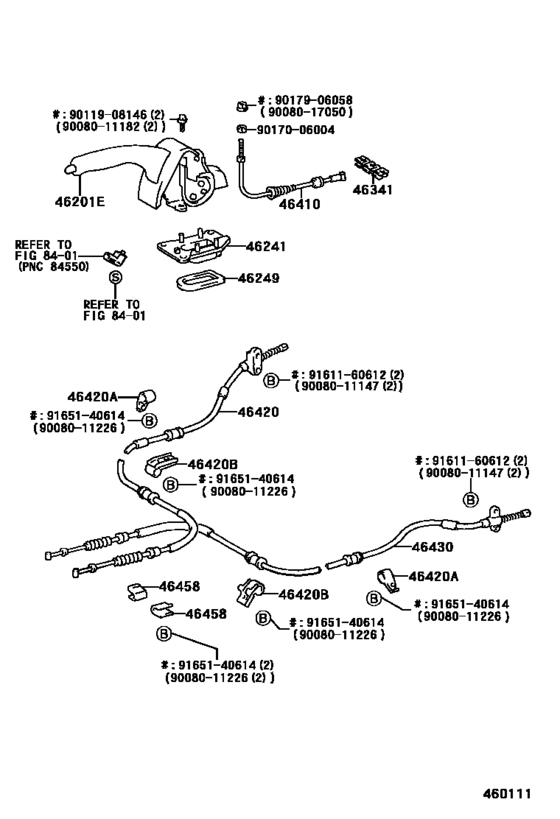

Parking Brake & Cable ([08.1997 - ] (9708- )) 23

#	OEM	Part name
46201	46201-02030-B1	Lever Sub-Assy, Parking Brake
46201	46201-02030-E0	Lever Sub-Assy, Parking Brake
46241	46241-02010	Boot, Parking Brake Lever
46249	46249-02010	Shield, Parking Brake Hole
46341	46341-02010	Equalizer, Parking Brake
46410	46410-02040	Cable Assy, Parking Brake, No.1
46420	46420-02040	Cable Assy, Parking Brake, No.2
46420	90949-01746	Clamp, No.1(For Parking Brake Cable)
46420	90949-01744	Clamp, No.2(For Parking Brake Cable)
46420	90949-01747	Clamp, No.2(For Parking Brake Cable)
46430	46430-02040	Cable Assy, Parking Brake, No.3
46458	46458-01020	Retainer, Cable
9008011147	90080-11147	BOLT WWASHER
9008011182	90080-11182	New Genuine Part
9008011226	90080-11226	New Genuine Part
9008017050	90080-17050	New Genuine Part
9011908146	90119-08146	Bolt(For Parking Brake Setting)
9017006004	90170-06004	Nut, Wire Adjusting, No.1
9017906058	90179-06058	Nut, Wire Adjusting, No.1
9017906058	90179-06299	Nut, Wire Adjusting, No.1
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9165140614	91651-40614	Bolt

OEM	Part name	Category
46201-02030-B1	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.1997 - ] (9708- ))
46201-02030-E0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([08.1997 - ] (9708- ))
46241-02010	Boot, Parking Brake Lever	Parking Brake & Cable ([08.1997 - ] (9708- ))
46249-02010	Shield, Parking Brake Hole	Parking Brake & Cable ([08.1997 - ] (9708- ))
46341-02010	Equalizer, Parking Brake	Parking Brake & Cable ([08.1997 - ] (9708- ))
46410-02040	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([08.1997 - ] (9708- ))
46420-02040	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([08.1997 - ] (9708- ))
46430-02040	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([08.1997 - ] (9708- ))
46458-01020	Retainer, Cable	Parking Brake & Cable ([08.1997 - ] (9708- ))
90080-11147	BOLT WWASHER	Parking Brake & Cable ([08.1997 - ] (9708- ))
90080-11182	New Genuine Part	Parking Brake & Cable ([08.1997 - ] (9708- ))
90080-11226	New Genuine Part	Parking Brake & Cable ([08.1997 - ] (9708- ))
90080-17050	New Genuine Part	Parking Brake & Cable ([08.1997 - ] (9708- ))
90119-08146	Bolt(For Parking Brake Setting)	Parking Brake & Cable ([08.1997 - ] (9708- ))
90170-06004	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([08.1997 - ] (9708- ))
90179-06058	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([08.1997 - ] (9708- ))
90179-06299	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([08.1997 - ] (9708- ))
90949-01744	Clamp, No.2(For Parking Brake Cable)	Parking Brake & Cable ([08.1997 - ] (9708- ))
90949-01746	Clamp, No.1(For Parking Brake Cable)	Parking Brake & Cable ([08.1997 - ] (9708- ))
90949-01747	Clamp, No.2(For Parking Brake Cable)	Parking Brake & Cable ([08.1997 - ] (9708- ))
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Parking Brake & Cable ([08.1997 - ] (9708- ))
91611-G0612	Bolt	Parking Brake & Cable ([08.1997 - ] (9708- ))
91651-40614	Bolt	Parking Brake & Cable ([08.1997 - ] (9708- ))
