Search › Model › ZZE110

ZZE110

Toyota COROLLA · 1997 · 3,705 parts · 168 categories
ZZE110 ×

← Back to categories

3,705 items

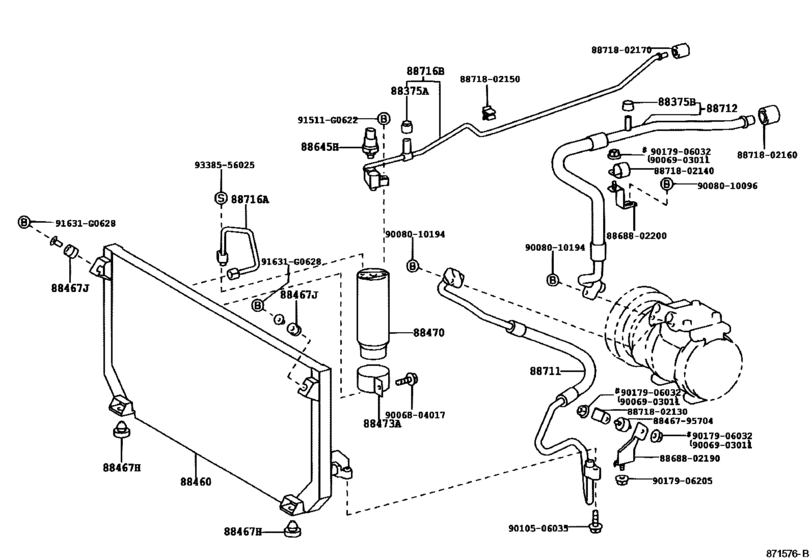

Heating & Air Conditioning - Cooler Piping ([08.1997 - ] MAKER OPTION (9708- )) 38
#OEMPart name
88375 88375-02060 Cap, Service Valve, No.1
88375 88375-02070 Cap, Service Valve, No.1
88460 88460-02050 Condenser Assy, Cooler
88467 88467-02050 Cushion, Cooler Condenser, No.1
88467 88467-02070 Cushion, Condenser Bracket, No.1
88467 88467-02060 Cushion, Condenser Bracket, No.2
88467 88897-12250 Cushion, Condenser Bracket, No.1
88470 88471-02030 Receiver & Dryer Assy, Cooler
88470 88471-02020 Receiver & Dryer Assy, Cooler
88470 88471-38010 Receiver & Dryer Assy, Cooler
88473 88473-02030 Holder, Receiver
88473 88473-20070 Holder, Receiver
88645 88645-06020 Switch, Pressure No.1
88711 88711-02050 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-02040 Hose, Cooler Refrigerant Suction, No.1
88716 88726-02040 Pipe, Cooler Refrigerant Liquid, A
88716 88716-02080 Pipe, Cooler Refrigerant Liquid, B
91511 91511-G0622 BOLT, FLANGE
91631 91631-G0628 New Genuine Part
91631 90119-06775 BOLT WWASHER
8846795704 88467-95704 Cushion, Cooler Condenser, No.1
8868802190 88688-02190 Bracket, Cooler Diaphragm
8868802200 88688-02200 Bracket, Cooler Diaphragm
8871802130 88718-02130 Pipe, Cooler Refrigerant Suction, No.2
8871802140 88718-02140 Pipe, Cooler Refrigerant Suction, No.2
8871802150 88718-02150 Pipe, Cooler Refrigerant Suction, No.2
8871802160 88718-02160 Clamp(For Cooler Refrigerant Pipe), No.1
8871802170 88718-02170 Clamp(For Cooler Refrigerant Pipe), No.2
9006804017 90068-04017 New Genuine Part
9006903011 90069-03011 Nut (for Oil Cooler Tube)
9006903011 90179-06274 Nut
9008010096 90080-10096 New Genuine Part
9008010096 91511-B0614 BOLT, FLANGE
9008010194 90080-10194 New Genuine Part
9010506035 90105-06035 New Genuine Part
9017906032 90179-06032 Direct
9017906205 90179-06205 Nut (For Rear Wiper Arm Setting)
9338556025 93385-56025 New Genuine Part
