Search › Model › ZZE110

ZZE110

Toyota COROLLA · 1997 · 3,705 parts · 168 categories

← Back to categories

3,705 items

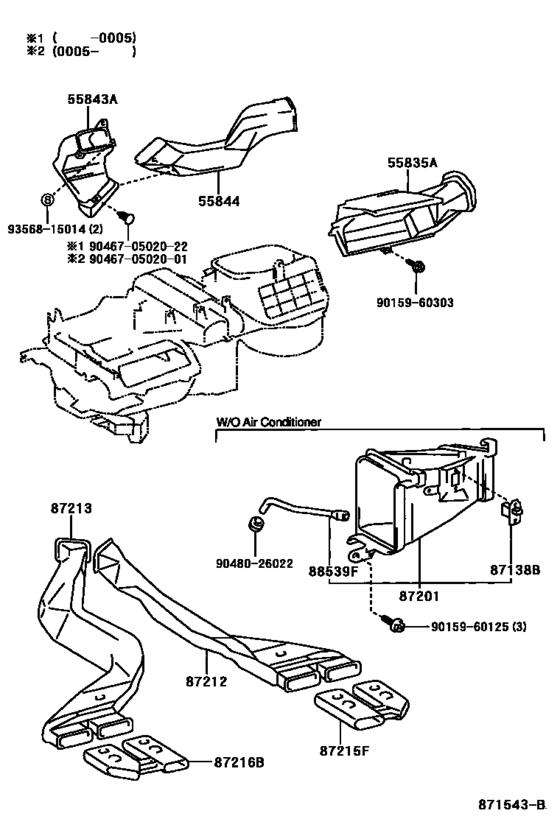

Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- )) 19

#	OEM	Part name
55835	55870-01010	Duct, Heater To Register, Center
55843	55843-02040	Duct, Heater To Register, No.1
55844	55844-02040	Duct, Heater To Register, No.2
87138	87138-02010	Resistor, Heater Blower
87201	87201-02071	Duct Sub-Assy, Air, No.1
87201	87201-02061	Duct Sub-Assy, Air, No.1
87212	87212-02020	Duct, Air, Rear No.1
87213	87213-02020	Duct, Air, Rear No.2
87215	87215-02030	Duct, Air, Rear No.3
87216	87216-02020	Duct, Air, Rear No.4
88539	88539-02010	Hose, Drain
9015960125	90159-60125	New Genuine Part
9015960125	90159-60383	SCREW WWASHER
9015960303	90159-60303	SCREW
9048026022	90480-26022	Grommet (For Cooler Unit)
9356815014	93568-15014	Direct
9356815014	93568-55014	Screw
904670502001	90467-05020-01	Clip(For Floor Carpet Set Bracket)
904670502022	90467-05020-22	Clip, Instrument Panel (Black)

OEM	Part name	Category
55843-02040	Duct, Heater To Register, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
55844-02040	Duct, Heater To Register, No.2	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
55870-01010	Duct, Heater To Register, Center	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
87138-02010	Resistor, Heater Blower	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
87201-02061	Duct Sub-Assy, Air, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
87201-02071	Duct Sub-Assy, Air, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
87212-02020	Duct, Air, Rear No.1	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
87213-02020	Duct, Air, Rear No.2	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
87215-02030	Duct, Air, Rear No.3	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
87216-02020	Duct, Air, Rear No.4	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
88539-02010	Hose, Drain	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
90159-60125	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
90159-60303	SCREW	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
90159-60383	SCREW WWASHER	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
90467-05020-01	Clip(For Floor Carpet Set Bracket)	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
90467-05020-22	Clip, Instrument Panel (Black)	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
90480-26022	Grommet (For Cooler Unit)	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
93568-15014	Direct	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
93568-55014	Screw	Heating & Air Conditioning - Control & Air Duct ([08.1997 - ] DUCT (9708- ))
