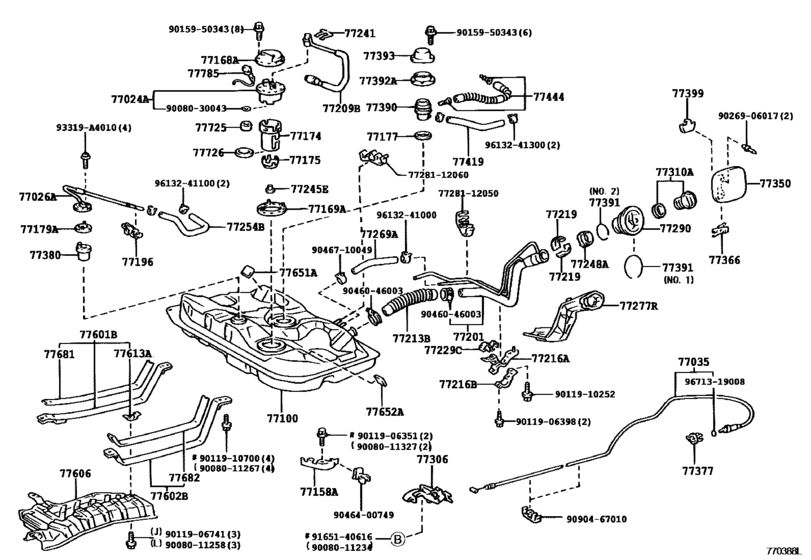

Fuel Tank & Tube ([08.1997 - ] (9708- )) 116
#OEMPart name
77024 77024-02010 Plate Sub-Assy, Fuel Suction
77026 77026-02010 Tube Sub-Assy, Fuel Evaporation, No.1
77035 77035-02020 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-02070 Tank Assy, Fuel
77158 77158-12040 Support, Tank Suction Tube
77168 77168-12240 Plate, Fuel Tank Vent Tube Set
77168 77168-33050 Plate, Fuel Tank Vent Tube Set
77169 77169-02020 Gasket, Fuel Pump Bracket
77174 77174-02010 Support, Fuel Suction, No.1
77175 77175-02010 Support, Fuel Suction, No.2
77177 77177-02010 Gasket, Check Valve
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77196 77196-02020 Clamp, Evaporation Vent Tube, No.1
77201 77201-02010 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-12560 Pipe Sub-Assy, Fuel Tank Inlet
77209 77209-02020 Tube Sub-Assy, Fuel Pump
77213 77213-02010 Hose, Fuel Tank To Filler Pipe
77213 77213-12210 Hose, Fuel Tank To Filler Pipe
77216 77104-02010 Support, Fuel Tank Filler Pipe, No.1
77216 77104-12010 Support, Fuel Tank Filler Pipe, No.1
77216 77216-02010 Support, Fuel Tank Filler Pipe, No.2
77216 77216-12070 Support, Fuel Tank Filler Pipe, No.1
77219 77219-06020 Cover, Fuel Tank Filler Pipe
77229 77229-02010 Clamp, Breather Tube
77229 77229-12040 Clamp, Breather Tube
77241 77241-02010 Clip, Tube Joint
77245 77245-02010 Cap, Fuel Suction
77248 77248-06020 Holder, Fuel Tank Filler Pipe Cover
77251 77251-02080 Tube, Fuel Main
77254 90080-44092 Hose, Fuel, No.2 (For Emission Tube, No.1)
77255 77255-02080 Tube, Fuel Return
77255 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77261 77261-02080 Tube, Fuel Tank To Canister
77266 77266-02010 Protector, Fuel Tube, No.1
77267 77267-02010 Protector, Fuel Tube, No.2
77269 77269-12040 Hose, Fuel Tank Breather
77269 90080-44090 Hose, Fuel Tank Breather
77277 77277-02040 Protector, Fuel Tank Filler Pipe
77284 77284-02030 Protector, Fuel Tube, No.3
77285 77285-02030 Clamp, Fuel Tube, No.1
77285 77285-20120 Clamp, Fuel Tube W/grommet, No.1
77286 77286-02040 Clamp, Fuel Tube, No.2
77286 77286-02050 Clamp, Fuel Tube, No.2
77289 77289-02030 Clamp, Fuel Tube, No.3
77289 77289-02040 Clamp, Fuel Tube, No.4
77289 77298-02020 Clamp, Fuel Tube, No.5
77289 77299-02010 Clamp, Fuel Tube, No.5
77290 77291-12110 Shield Assy, Fuel Tank Filler Pipe
77310 77310-06020 Cap Assy, Fuel Tank
77310 77310-48020 Cap Assy, Fuel Tank
77350 77350-12370 Lid Assy, Fuel Filler Opening
77366 77360-12080 Spring, Fuel Filler Opening Lid Hinge
77377 77377-02010 Retainer, Fuel Filler Opening Lid Lock
77380 77380-26010 Valve Assy, Fuel Cut Off
77390 77390-12011 Valve Assy, Fuel Tank Inlet
77391 77391-02030 Ring, Fuel Inlet Box
77391 77391-02040 Ring, Fuel Inlet Box
77392 77392-02010 Support, Check Valve
77393 77393-12020 Protector, Check Valve
77399 77399-12020 Hanger, Fuel Tank Cap
77419 90080-44091 Hose, Fuel, No.3
77444 77404-02010 Hose, Fuel Tank Vent
77601 77601-02020 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-02020 Band Sub-Assy, Fuel Tank, No.1 Lh
77606 77606-02010 Protector Sub-Assy, Fuel Tank, No.1
77613 77613-02010 Bracket, Fuel Tank Band, No.1
77651 77651-02010 Cushion, Fuel Tank, No.1
77651 77651-20090 Cushion, Fuel Tank, No.1
77652 77652-02010 Cushion, Fuel Tank, No.2
77652 77652-12100 Cushion, Fuel Tank, No.1
77681 77681-02010 Seat, Fuel Tank Band, Rh
77725 77725-02010 Cushion, Fuel Filter, No.1
77726 77726-02010 Cushion, Fuel Filter, No.2
77740 77740-02100 Canister Assy, Charcoal
77740 77740-02102 Canister Assy, Charcoal
77740 77740-02101 Canister Assy, Charcoal
77740 90080-91186 Valve, Vacuum Switching(For Charcoal Canister)
77740 90080-91233 Valve, Vacuum Switching(For Charcoal Canister)
77785 77785-02010 Harness, Fuel Pump
91651 91651-B0818 BOLT WWASHER
93319 93319-A4010 SCREW WWASHER
7728112050 77281-12050 Bracket, Fuel Main Tube, No.1
7728112060 77281-12060 Bracket, Fuel Main Tube, No.1
7728512070 77285-12070 Bracket, Fuel Tube
9008011171 90080-11171 New Genuine Part
9008011234 90080-11234 New Genuine Part
9008011258 90080-11258 New Genuine Part
9008011267 90080-11267 Bolt, Fuel Tank Band Set
9008011327 90080-11327 New Genuine Part
9008030043 90080-30043 New Genuine Part
9011906351 90119-06351 New Genuine Part
9011906398 90119-06398 BOLT WWASHER
9011906465 90119-06465 BOLT
9011906741 90119-06741 New Genuine Part
9011910252 90119-10252 BOLT
9011910700 90119-10700 New Genuine Part
9015950343 90159-50343 SCREW, W-WASHER
9026906017 90269-06017 RIVET
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046400749 90464-00749 New Genuine Part
9046710049 90467-10049 Clamp Or Clip(For Fuel Hose Set)
9046710049 90467-10149 Clip, No.2(For Idle-Up Hose)
9046711073 90467-11073 New Genuine Part
9046713069 90467-13069 Clip(For Fuel Vapor Feed Hose, No.2)
9090467010 90904-67010 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9613241000 96132-41000 Clip, No.1(For Idle-Up Hose)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
9613241300 96132-41300 Clip, No.4(For Idle-Up Hose)
9613241300 96132-51300 Clip(For Ventilation Hose No.2)
9671319008 96713-19008 New Genuine Part
