ZZE110

Toyota COROLLA · 1997 · 3,705 parts · 168 categories
ZZE110 ×

← Back to categories

3,705 items

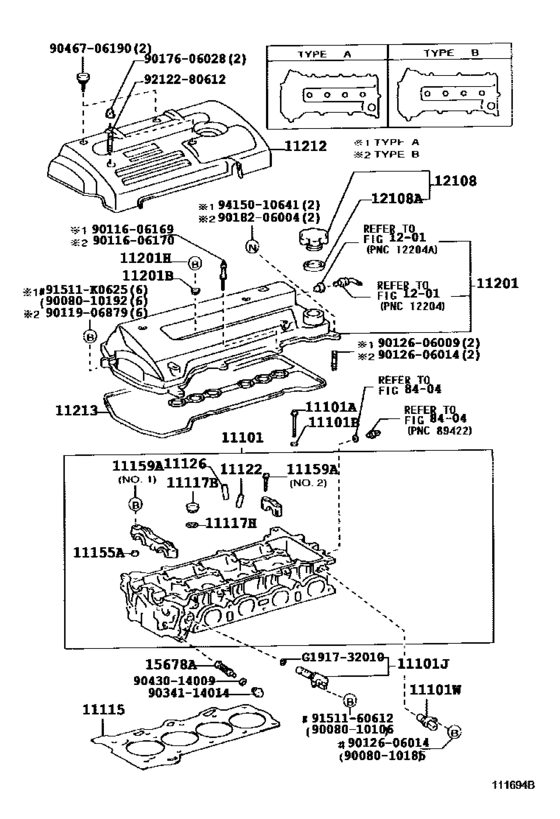

Cylinder Head ([08.1999 - ] (9908- )) 58
#OEMPart name
11101 11101-0D010 Head Sub-Assy, Cylinder
11101 13711-22040 Valve, Intake
11101 11101-22070 Head Sub-Assy, Cylinder
11101 90910-02134 Bolt(For Cylinder Head Set)
11101 90910-02152 Bolt(For Cylinder Head Set)
11101 90201-10344 Washer, Plate(For Cylinder Head Set)
11101 15330-22010 Valve Assy, Camshaft Timing Oil Control
11101 15330-22030 Valve Assy, Camshaft Timing Oil Control
11101 15330-22050 Valve Assy, Camshaft Timing Oil Control
11101 90080-19014 Sensor, Cam Position
11101 90919-05026 Sensor, Position
11115 11115-22040 Gasket, Cylinder Head
11115 11115-22050 Gasket, Cylinder Head
11117 90341-20002 Plug, W/head Taper Screw, No.1
11117 90430-20004 Gasket(For Cylinder Head Screw Plug)
11122 11122-22020 Bush, Intake Valve Guide
11122 11122-24020 Bush, Intake Valve Guide
11122 90913-02029 New Genuine Part
11122 11122-22030 Bush, Intake Valve Guide
11122 11123-22020 Bush, Intake Valve Guide
11122 11123-24020 Bush, Intake Valve Guide
11122 11123-22030 Bush, Intake Valve Guide
11122 11123-20020 Bush, Intake Valve Guide
11155 90250-06001 Pin, Straight
11155 90253-12001 Pin, Ring W/head
11159 90080-11414 Bolt(For Head To Camshaft Bearing Cap)
11159 90080-11415 Bolt(For Head To Camshaft Bearing Cap)
11159 90109-06080 Bolt, Stud(For Head To Cylinder Head Cover)
11159 90119-08A29 Bolt(For Head To Camshaft Bearing Cap)
11201 11201-0D030 Cover Sub-Assy, Cylinder Head
11201 11201-22060 Cover Sub-Assy, Cylinder Head
11201 90210-06013 Washer, Seal(For Cylinder Head Cover)
11201 90105-06281 Bolt(For Cylinder Head Cover)
11201 90105-06202 Bolt(For Cylinder Head Cover)
11212 11212-22040 Cover, Cylinder Head, No.2
11213 11213-0D040 Gasket, Cylinder Head Cover
12108 12180-0D010 Cap Sub-Assy, Oil Filler
12108 12180-22011 Cap Sub-Assy, Oil Filler
12108 90080-43032 Gasket(For Oil Filler Cap)
12108 90430-37140 Gasket(For Oil Filler Cap)
15678 15678-21010 Filter, Oil Control Valve
91511 91511-K0625 New Genuine Part
9008010106 90080-10106 New Genuine Part
9008010185 90080-10185 New Genuine Part
9008010192 90080-10192 New Genuine Part
9011606169 90116-06169 BOLT STUD
9011606170 90116-06170 New Genuine Part
9011906879 90119-06879 New Genuine Part
9012606009 90126-06009 STUD HEX LOBULAR
9012606014 90126-06014 STUD HEX LOBULAR
9017606028 90176-06028 Nut, Cap(For Cylinder Head Cover)
9018206004 90182-06004 New Genuine Part
9034114014 90341-14014 New Genuine Part
9043014009 90430-14009 Gasket(For Cylinder Head Screw Plug)
9046706190 90467-06190 CLIP
9151160612 91511-60612 BOLT
9212280612 92122-80612 BOLTSTUD
9415010641 94150-10641 Nut
