Search › Model › ZZE110

ZZE110

Toyota COROLLA · 1997 · 3,705 parts · 168 categories

3,705 items

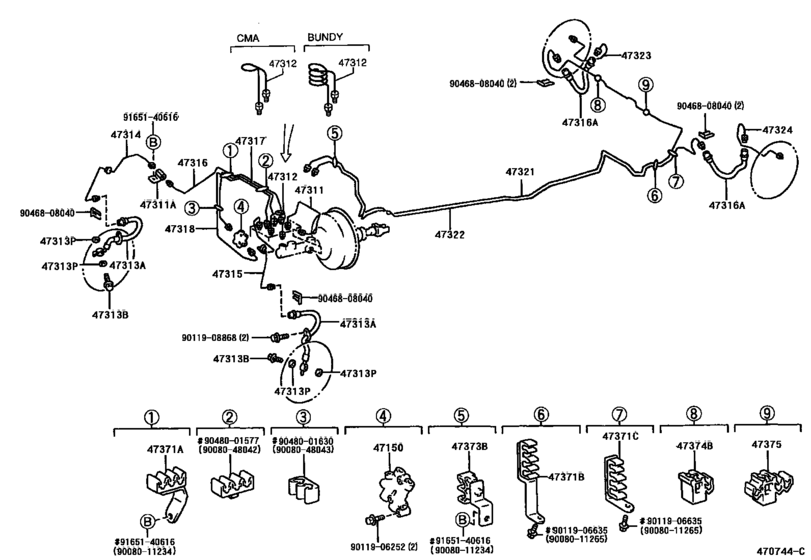

Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- )) 48

#	OEM	Part name
47150	47150-02030	Valve Assy, Proportioning
47150	47150-12210	Valve Assy, Proportioning
47150	47150-12240	Valve Assy, Proportioning
47311	47311-01040	Tube, Front Brake, No.1
47311	47311-02060	Tube, Front Brake, No.1
47311	90412-10041	Way, No.1(For Rear Brake Tube)
47312	47312-01020	Tube, Front Brake, No.2
47312	47312-02060	Tube, Front Brake, No.2
47312	47312-12260	Tube, Front Brake, No.2
47313	90080-94103	Hose, Flexible, No.1(For Front)
47313	90947-02911	Hose, Flexible, No.1(For Front)
47313	90080-94104	Hose, Flexible, No.1(For Front)
47313	90947-02912	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-02060	Tube, Front Brake, No.4
47314	47314-02080	Tube, Front Brake, No.4
47315	47315-01030	Tube, Front Brake, No.5
47315	47315-02020	Tube, Front Brake, No.5
47316	47316-01020	Tube, Front Brake, No.6
47316	90080-94039	Hose, Flexible(For Rear Brake Tube)
47316	90947-02809	Hose, Flexible(For Rear Brake Tube)
47317	47317-01020	Tube, Front Brake, No.7
47318	47318-01020	Tube, Front Brake, No.8
47321	47321-02040	Tube, Rear Brake, No.1
47322	47322-02040	Tube, Rear Brake, No.2
47323	47323-02020	Tube, Rear Brake, No.3
47324	47324-02020	Tube, Rear Brake, No.4
47371	47371-02030	Clamp, Brake Tube, No.1
47371	47371-12170	Clamp, Brake Tube, No.1
47371	47375-02030	Clamp, Brake Tube, No.6
47371	47375-02040	Clamp, Brake Tube, No.7
47373	47371-02010	Clamp, Brake Tube, No.3
47374	90949-01B45	Clamp(For Clutch Master Cylinder Tube)
47375	47371-12180	Clamp, Brake Tube, No.5
9008011234	90080-11234	New Genuine Part
9008011265	90080-11265	New Genuine Part
9008048042	90080-48042	New Genuine Part
9008048043	90080-48043	New Genuine Part
9011906252	90119-06252	New Genuine Part
9011906635	90119-06635	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9046808040	90468-08040	CLIP
9048001577	90480-01577	GROMMET
9048001630	90480-01630	Grommet(For Brake Tube)
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part

OEM	Part name	Category
47150-02030	Valve Assy, Proportioning	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47150-12210	Valve Assy, Proportioning	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47150-12240	Valve Assy, Proportioning	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47311-01040	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47311-02060	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47312-01020	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47312-02060	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47312-12260	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47314-02060	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47314-02080	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47315-01030	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47315-02020	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47316-01020	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47317-01020	Tube, Front Brake, No.7	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47318-01020	Tube, Front Brake, No.8	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47321-02040	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47322-02040	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47323-02020	Tube, Rear Brake, No.3	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47324-02020	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47371-02010	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47371-02030	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47371-12170	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47371-12180	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47375-02030	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
47375-02040	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90080-11234	New Genuine Part	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90080-11265	New Genuine Part	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90080-11395	New Genuine Part	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90080-48042	New Genuine Part	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90080-48043	New Genuine Part	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90080-94039	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90080-94103	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90080-94104	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90119-06252	New Genuine Part	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90119-06635	New Genuine Part	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90412-10041	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90468-08040	CLIP	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90480-01577	GROMMET	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90480-01630	Grommet(For Brake Tube)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90947-02809	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90947-02911	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90947-02912	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
90949-01B45	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
91621-60614	Bolt(For Transaxle & Engine Setting)	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
91651-40616	BOLT	Brake Tube & Clamp ([08.1997 - ] W(ABS) (9708- ))
