Search › Model › ZYX10
ZYX10

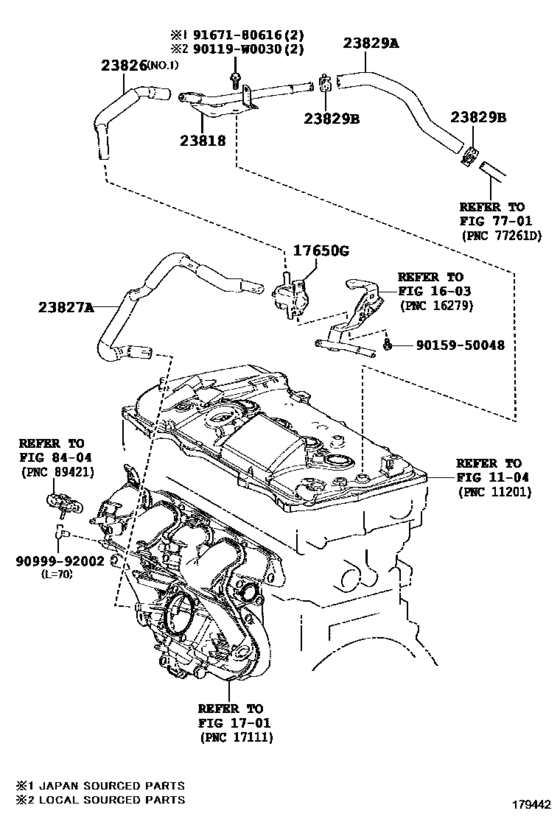

Vacuum Piping ([10.2016 - ] (1610- )2ZRFXE) 10
| # | OEM | Part name |
|---|---|---|
| 17650 | 90910-12276 | Valve, Duty Vacuum Switching |
| 23818 | 23818-37030 | Pipe, Fuel Vapor Feed |
| 23826 | 23826-0T300 | Hose, Fuel Vapor Feed, No.1 |
| 23827 | 23827-0T050 | Hose, Fuel Vapor Feed, No.2 |
| 23829 | 23826-0T260 | Hose, Fuel Vapor Feed |
| 23829 | 96136-41901 | Clip Or Clamp(For Ventilation Hose) |
| 90119 | 90119-W0030 | New Genuine Part |
| 9015950048 | 90159-50048 | Bolt |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| 9167180616 | 91671-80616 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 23818-37030 | Pipe, Fuel Vapor Feed | Vacuum Piping ([10.2016 - ] (1610- )2ZRFXE) |
| 23826-0T260 | Hose, Fuel Vapor Feed | Vacuum Piping ([10.2016 - ] (1610- )2ZRFXE) |
| 23826-0T300 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([10.2016 - ] (1610- )2ZRFXE) |
| 23827-0T050 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([10.2016 - ] (1610- )2ZRFXE) |
| 90119-W0030 | New Genuine Part | Vacuum Piping ([10.2016 - ] (1610- )2ZRFXE) |
| 90159-50048 | Bolt | Vacuum Piping ([10.2016 - ] (1610- )2ZRFXE) |
| 90910-12276 | Valve, Duty Vacuum Switching | Vacuum Piping ([10.2016 - ] (1610- )2ZRFXE) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([10.2016 - ] (1610- )2ZRFXE) |
| 91671-80616 | BOLT FLANGE | Vacuum Piping ([10.2016 - ] (1610- )2ZRFXE) |
| 96136-41901 | Clip Or Clamp(For Ventilation Hose) | Vacuum Piping ([10.2016 - ] (1610- )2ZRFXE) |
