| 23221-0Q051 |
Pump, Fuel |

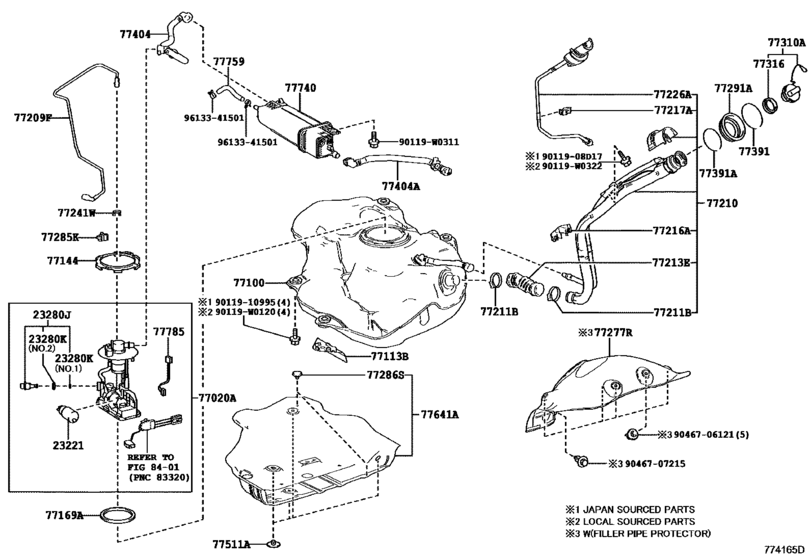

Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 23280-21010 |
Regulator Assy, Fuel Pressure |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77001-F4010 |
Tank Assy, Fuel |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77020-F4010 |
Tube Assy, Fuel Suction W/pump & Gage |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77113-F4010 |
Plate, Fuel Tank Side |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77144-F4010 |
Retainer, Fuel Pump Gauge |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77169-F4010 |
Gasket, Fuel Suction Tube Set |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77209-F4010 |
Tube Sub-Assy, Fuel Tank Main |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77210-F4010 |
Pipe Assy, Fuel Tank Filler |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77213-F4010 |
Hose, Fuel Tank To Filler Pipe |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77216-F4010 |
Support, Fuel Tank Filler Pipe, No.1 |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77217-F4010 |
Support, Fuel Tank Filler Pipe, No.2 |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77226-F4010 |
Tube, Fuel Tank Breather, No.6 |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77241-32060 |
Clip, Tube Joint |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77277-F4010 |
Protector, Fuel Tank Filler Pipe |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77285-30350 |
Clamp, Fuel Tube, No.1 |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77286-02070 |
Cushion, Fuel Tank Protector |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77291-F4010 |
Shield, Fuel Tank Filler Pipe |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77300-12020 |
Cap Assy, Fuel Tank |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77316-52040 |
Gasket, Fuel Tank Cap |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77391-12020 |
Ring, Fuel Inlet Box |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77391-75010 |
Ring, Fuel Inlet Box |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77404-10010 |
Hose Sub-Assy, Fuel Tank Vent |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77404-10020 |
Hose Sub-Assy,fuel Tank Vent |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77512-35140 |
Bracket, Fuel Tank |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77641-F4010 |
Protector, Fuel Tank, No.1 |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77740-10150 |
Canister Assy, Charcoal |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77759-47050 |
Hose, Charcoal Canister |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77785-02081 |
Harness, Fuel Pump |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 77785-12010 |
Harness, Fuel Pump |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 90119-08D17 |
BOLT WWASHER |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 90119-10995 |
Bolt(For Body Mount No.2 Cushion) |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 90119-W0120 |
Bolt, Fuel Tank Band Set |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 90301-04013 |
Ring, O(For Fuel Pump) |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 90301-15024 |
Ring, O(For Fuel Pump) |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 90460-50008 |
Clamp (For Fuel Filler Pipe) |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 90467-06121 |
Clip, Rear Bumper Side |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 90467-07215 |
Clip |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
| 96133-41501 |
Clip(For Air Hose No.3) |
Fuel Tank & Tube ([10.2016 - ] FUEL TANK (1610- )ZYX10) |
