Search › Model › ZYX10

ZYX10

Toyota C-HR · 2016 · 2,806 parts · 176 categories

← Back to categories

2,806 items

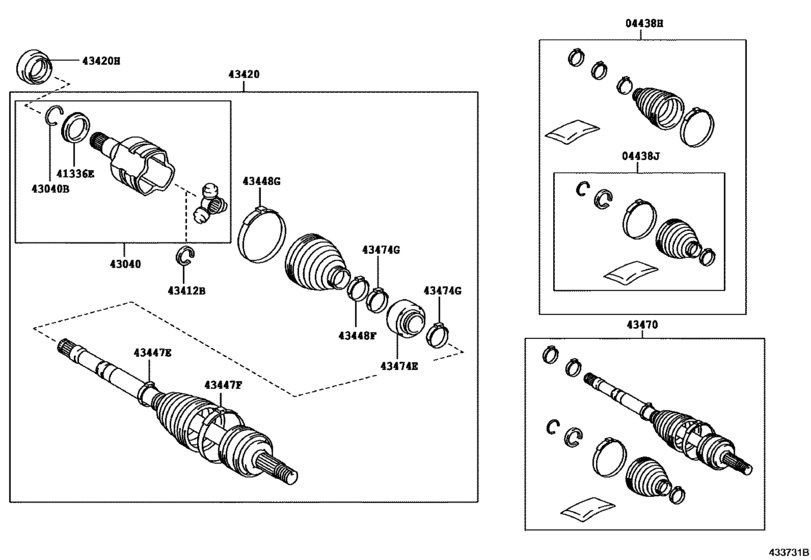

Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10) 17

#	OEM	Part name
4438	04428-F4010	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04428-F4011	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04438-F4010	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-05130	Cover, Front Drive Shaft Dust, Lh
43040	43040-05142	Joint Assy, Front Drive Inboard, Lh
43040	43425-05070	Ring, Hole Snap (For Front Drive Inboard Joint Rh) - HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH)
43412	43425-05040	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43420	43420-F4040	Shaft Assy, Front Drive, Lh
43420	90311-50045	Oil Seal, Front Drive Shaft, Lh
43420	90311-50064	SEAL TYPE T OIL
43447	42345-02820	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-02810	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43448	42345-0F070	Clamp (For Front Axle Inboard Joint Boot Rh)
43448	42345-F4020	Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)
43470	43470-F9040	Shaft Assy, Front Drive Outboard Joint, Lh
43474	43474-F4020	Damper, Front Drive Shaft, Lh
43474	42345-05250	Clamp (For Front Drive Shaft Damper Lh)

OEM	Part name	Category
04428-F4010	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
04428-F4011	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
04438-F4010	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
41336-05130	Cover, Front Drive Shaft Dust, Lh	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
42345-02810	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
42345-02820	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
42345-05250	Clamp (For Front Drive Shaft Damper Lh)	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
42345-0F070	Clamp (For Front Axle Inboard Joint Boot Rh)	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
42345-F4020	Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
43040-05142	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
43420-F4040	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
43425-05040	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
43425-05070	Ring, Hole Snap (For Front Drive Inboard Joint Rh) - HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH)	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
43470-F9040	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
43474-F4020	Damper, Front Drive Shaft, Lh	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
90311-50045	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)
90311-50064	SEAL TYPE T OIL	Front Drive Shaft ([10.2016 - ] LH (1610- )NGX10,50,ZYX10)

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 176
Collected: 2026-08-02
