ZYX10

Toyota C-HR · 2016 · 2,806 parts · 176 categories

← Back to categories

2,806 items

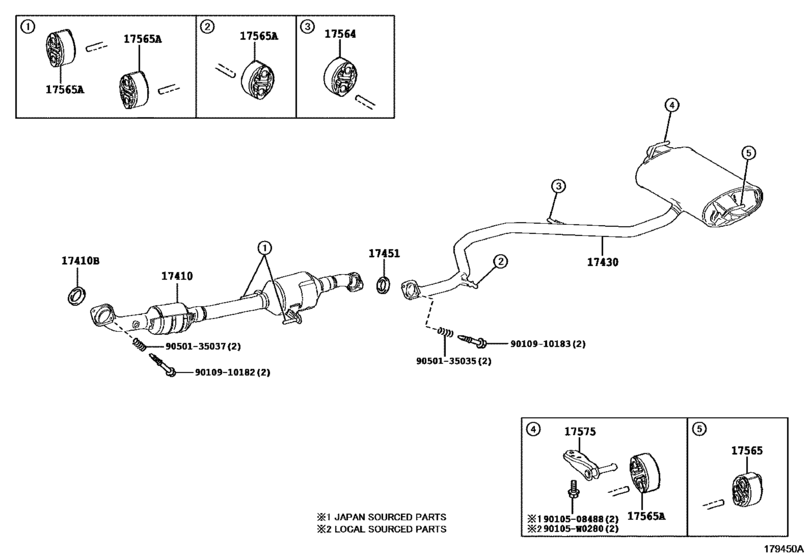

Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE) 14

#	OEM	Part name
17410	17410-0TA90	Pipe Assy, Exhaust, Front
17410	17451-0R010	Gasket, Exhaust Pipe
17430	17430-0T470	Pipe Assy, Exhaust, Tail
17430	17430-0T471	Pipe Assy, Exhaust, Tail
17451	17451-0J022	Gasket, Exhaust Pipe
17564	17565-0T040	Support,exhaust Pipe, No.4
17565	17565-0J031	Support, Exhaust Pipe, No.3 - EXHAUST PIPE, NO.4
17565	17566-0T020	Support, Exhaust Pipe, No.5
17575	17575-0Y030	Bracket, Exhaust Pipe Support, No.5
9010508488	90105-08488	New Genuine Part
9010910182	90109-10182	BOLT
9010910183	90109-10183	Bolt
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe

OEM	Part name	Category
17410-0TA90	Pipe Assy, Exhaust, Front	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
17430-0T470	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
17430-0T471	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
17451-0J022	Gasket, Exhaust Pipe	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
17451-0R010	Gasket, Exhaust Pipe	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
17565-0J031	Support, Exhaust Pipe, No.3 - EXHAUST PIPE, NO.4	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
17565-0T040	Support,exhaust Pipe, No.4	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
17566-0T020	Support, Exhaust Pipe, No.5	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
17575-0Y030	Bracket, Exhaust Pipe Support, No.5	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
90105-08488	New Genuine Part	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
90109-10182	BOLT	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
90109-10183	Bolt	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([10.2016 - ] (1610- )2ZRFXE)
