ZYX10

Toyota C-HR · 2016 · 2,806 parts · 176 categories

2,806 items

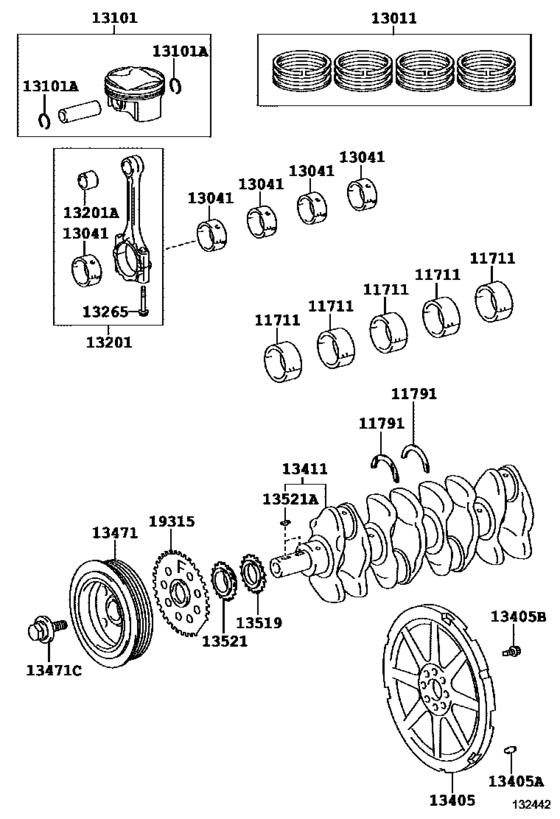

Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE) 26

#	OEM	Part name
11711	11701-0T060	Bearing, Crankshaft
11791	11791-37010	Washer, Crankshaft Thrust, Upper
13011	13011-37270	Ring Set, Piston
13041	13041-0T060-01	Bearing, Connecting Rod
13041	13041-0T060-02	Bearing, Connecting Rod
13041	13041-0T060-03	Bearing, Connecting Rod
13101	13101-0T300	Piston Sub-Assy, W/pin
13101	90520-20064	Ring, Hole Snap(For Piston Pin)
13201	13201-09C80	Rod Sub-Assy, Connecting
13201	13201-39295	Rod Sub-Assy, Connecting
13201	90999-73151	Bush(For Connecting Rod Small End)
13265	13265-22020	Bolt, Connecting Rod
13265	13265-22040	BOLT, CONNECTING ROD
13405	13451-37070	Flywheel Sub-Assy
13405	90250-08120	Pin, Straight, No.1
13405	90913-01027	Bolt, Flywheel Setting
13411	13401-0T061	Crankshaft
13411	13401-37021	Crankshaft
13471	13470-37060	Pulley, Crankshaft
13471	90119-14175	Bolt(For Crankshaft Pulley Set)
13519	13519-37010	Gear, Oil Pump Drive
13521	13521-0T030	Gear Or Sprocket, Crankshaft Timing
13521	13521-0T070	Gear Or Sprocket, Crankshaft Timing
13521	13521-37011	Gear Or Sprocket, Crankshaft Timing
13521	90280-04003	Key(For Crankshaft Timing Gear)
19315	19315-37020	Plate, Crank Angle Sensor, No.1

OEM	Part name	Category
11701-0T060	Bearing, Crankshaft	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
11791-37010	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13011-37270	Ring Set, Piston	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13041-0T060-01	Bearing, Connecting Rod	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13041-0T060-02	Bearing, Connecting Rod	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13041-0T060-03	Bearing, Connecting Rod	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13101-0T300	Piston Sub-Assy, W/pin	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13201-09C80	Rod Sub-Assy, Connecting	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13201-39295	Rod Sub-Assy, Connecting	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13265-22020	Bolt, Connecting Rod	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13265-22040	BOLT, CONNECTING ROD	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13401-0T061	Crankshaft	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13401-37021	Crankshaft	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13451-37070	Flywheel Sub-Assy	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13470-37060	Pulley, Crankshaft	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13519-37010	Gear, Oil Pump Drive	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13521-0T030	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13521-0T070	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
13521-37011	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
19315-37020	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
90119-14175	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
90250-08120	Pin, Straight, No.1	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
90280-04003	Key(For Crankshaft Timing Gear)	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
90520-20064	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
90913-01027	Bolt, Flywheel Setting	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
90999-73151	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([10.2016 - ] (1610- )2ZRFXE)
