ZYX10

Toyota C-HR · 2016 · 2,806 parts · 176 categories
ZYX10 ×

← Back to categories

2,806 items

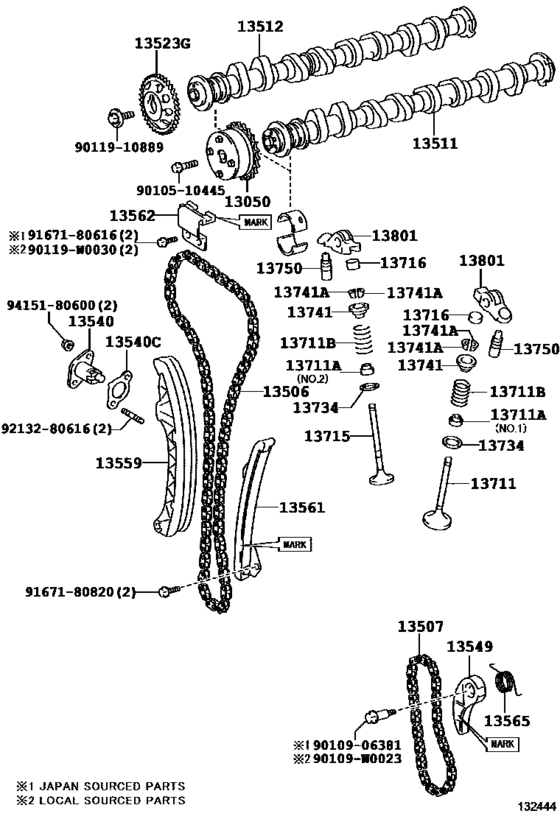

Camshaft & Valve ([10.2016 - ] (1610- )2ZRFXE) 50
#OEMPart name
13050 13050-37050 Gear Assy, Camshaft Timing
13506 13506-0T110 Chain Sub-Assy
13506 13506-37070 Chain Sub-Assy
13507 13507-28010 Chain Sub-Assy, No.2
13511 13501-0T090 Camshaft
13512 13502-0T080 Camshaft, No.2
13523 13523-22020 Gear Or Sprocket, Camshaft Timing
13540 13540-0T030 Tensioner Assy, Chain, No.1
13540 13540-37030 Tensioner Assy, Chain, No.1
13540 13552-0T030 Gasket(For Chain Tensioner)
13540 13552-37010 Gasket(For Chain Tensioner)
13549 13549-0T050 Plate, Chain Tensioner
13549 13549-37020 Plate, Chain Tensioner
13559 13559-0T080 Slipper, Chain Tensioner
13559 13559-37050 Slipper, Chain Tensioner
13561 13561-0T080 Damper, Chain Vibration, No.1
13561 13561-37050 Damper, Chain Vibration, No.1
13562 13562-0T050 Damper, Chain Vibration, No.2
13562 13562-37020 Damper, Chain Vibration, No.2
13565 13565-0T030 Spring, Chain Damper
13565 13565-37010 Spring, Chain Damper
13711 13711-0T040 Valve, Intake
13711 13711-37020 Valve, Intake
13711 90080-31061 Seal Or Ring, O(For Valve Stem Oil)
13711 90080-31062 Seal Or Ring, O(For Valve Stem Oil)
13711 90913-02101 Seal Or Ring, O(For Valve Stem Oil) - Intake side
13711 90913-02112 Seal Or Ring, O(For Valve Stem Oil)
13711 90501-30039 Spring, Compression(For Inner)
13715 13715-0T040 Valve, Exhaust
13715 13715-37030 Valve, Exhaust
13716 13716-0T020 Cap, Valve Stem
13716 13716-75020 Cap, Valve Stem
13734 13734-0P010 Seat, Valve Spring
13734 13734-62020 Washer, Plate(For Valve Spring Seat)
13741 13741-36010 Retainer, Valve Spring
13741 90913-03028 Lock, Valve Spring Retainer
13741 90913-W3001 Lock, Valve Spring Retainer
13750 13750-0T040 Adjuster Assy, Valve Lash
13750 13750-21010 Adjuster Assy, Valve Lash
13801 13801-0T030 Arm Sub-Assy, Valve Rocker, No.1
13801 13801-36020 Arm Sub-Assy, Valve Rocker, No.1
90109 90109-W0023 New Genuine Part
90119 90119-W0030 New Genuine Part
9010510445 90105-10445 BOLT, WASHER BASED
9010906381 90109-06381 BOLT
9011910889 90119-10889 Bolt(For Camshaft Timing Gear)
9167180616 91671-80616 BOLT FLANGE
9167180820 91671-80820 Bolt (For Transmission Control Cable Bracket)
9213280616 92132-80616 BOLTSTUD
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
